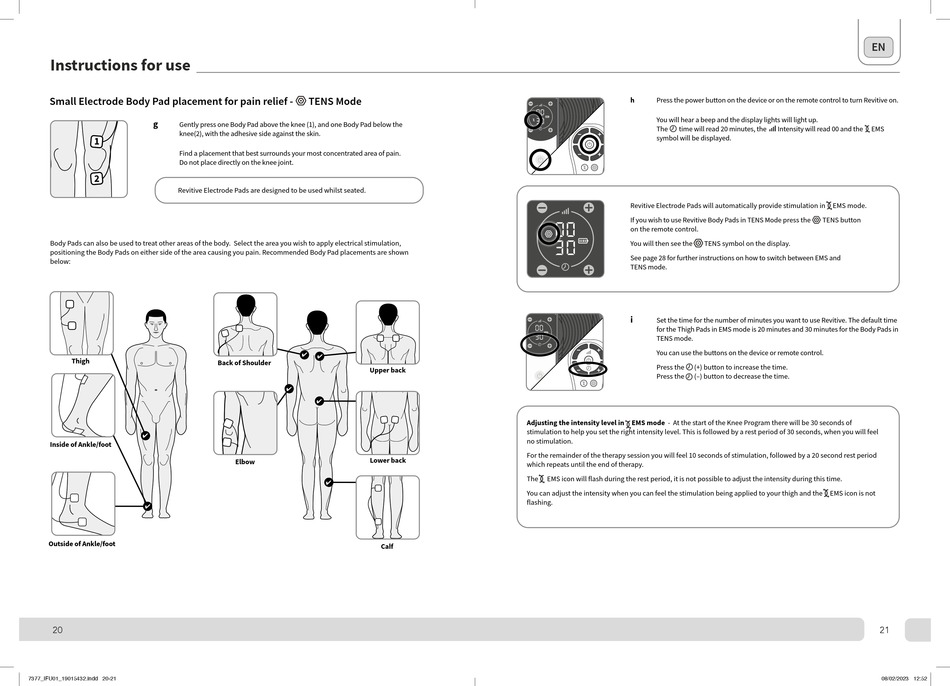

Instructions for use
Small Electrode Body Pad placement for pain relief -
g
Gently press one Body Pad above the knee (1), and one Body Pad below the
knee(2), with the adhesive side against the skin.
1
Find a placement that best surrounds your most concentrated area of pain.
Do not place directly on the knee joint.
2
Revitive Electrode Pads are designed to be used whilst seated.
Body Pads can also be used to treat other areas of the body. Select the area you wish to apply electrical stimulation,
positioning the Body Pads on either side of the area causing you pain. Recommended Body Pad placements are shown
below:
Thigh
✔
Inside of Ankle/foot
✔
Outside of Ankle/foot
20
7377_IFU01_19015432.indd 20-21
7377_IFU01_19015432.indd 20-21
TENS Mode
Back of Shoulder
Upper back
✔
Lower back
Elbow
✔
Calf
h
Press the power button on the device or on the remote control to turn Revitive on.
0
0
You will hear a beep and the display lights will light up.
3o
The
time will read 20 minutes, the
symbol will be displayed.
Revitive Electrode Pads will automatically provide stimulation in EMS mode.
If you wish to use Revitive Body Pads in TENS Mode press the
0 0
on the remote control.
3o
You will then see the
TENS symbol on the display.
See page 28 for further instructions on how to switch between EMS and
TENS mode.
i
Set the time for the number of minutes you want to use Revitive. The default time
0
0
for the Thigh Pads in EMS mode is 20 minutes and 30 minutes for the Body Pads in
3o
TENS mode.
You can use the buttons on the device or remote control.
Press the
(+) button to increase the time.
Press the
(–) button to decrease the time.
Adjusting the intensity level in EMS mode - At the start of the Knee Program there will be 30 seconds of
stimulation to help you set the right intensity level. This is followed by a rest period of 30 seconds, when you will feel
no stimulation.
For the remainder of the therapy session you will feel 10 seconds of stimulation, followed by a 20 second rest period
which repeats until the end of therapy.
The
EMS icon will flash during the rest period, it is not possible to adjust the intensity during this time.
You can adjust the intensity when you can feel the stimulation being applied to your thigh and the EMS icon is not
flashing.
EN
Intensity will read 00 and the
EMS
TENS button
21
