dirna Bergstrom bycool green line compact 1.4 Benutzerhandbuch Seite 12

COMPACT
EN
Take care not to invert polarities when connecting the unit. If this were to happen, the control plate
will not come on, the unit will not work.
Centrifugal
blower
Az Blue
N Black
R Red
Green
V
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
All manuals and user guides at all-guides.com
IMPORTANT NOTE!
Electronic
control
Battery
Compressor
12

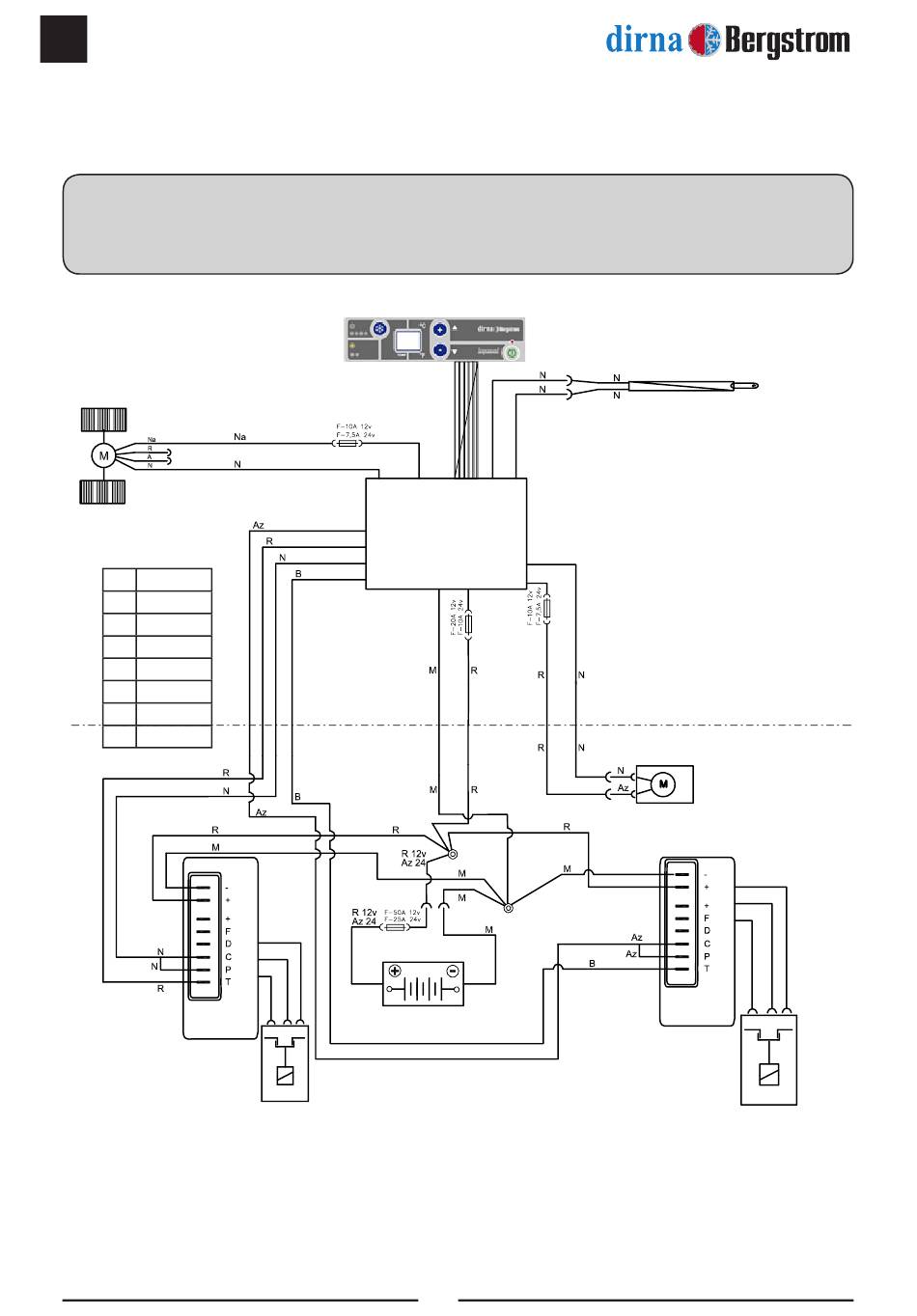

Wiring Diagram
Return
air sensor
Condenser
fan
Compressor
electronic
module
Compressor
®
