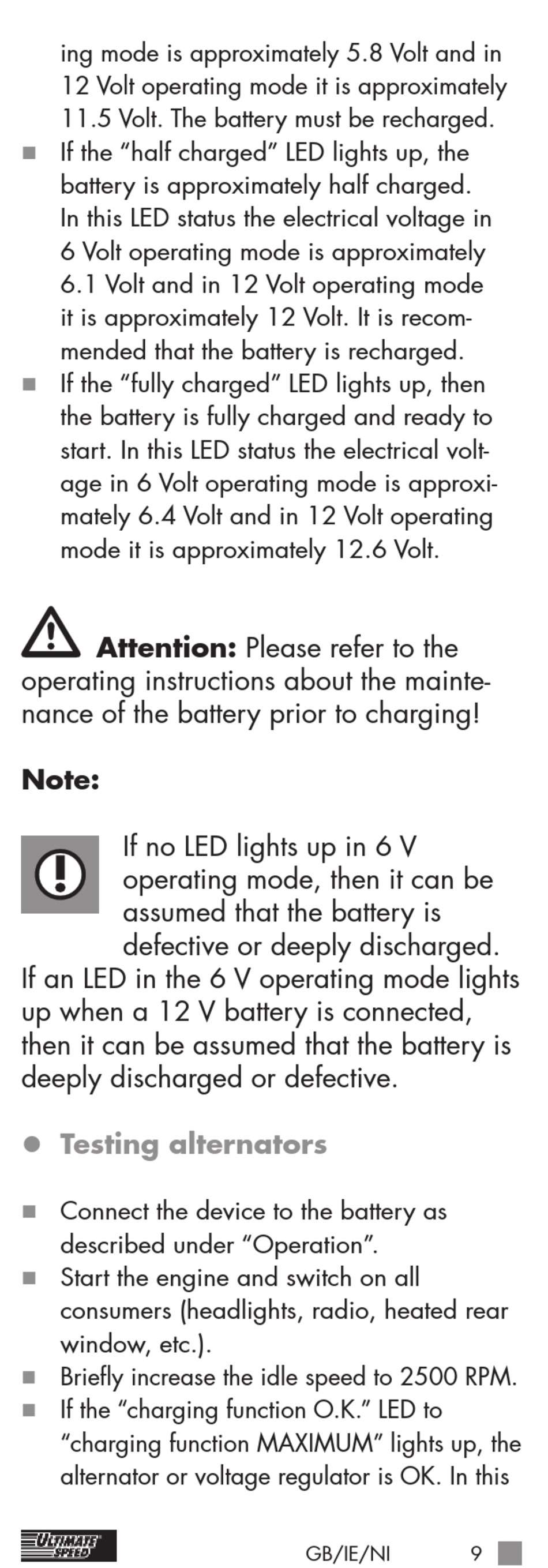

ing mode is approximately 5�8 Volt and in
12 Volt operating mode it is approximately
11�5 Volt� The battery must be recharged�
If the "half charged" LED lights up, the
„
battery is approximately half charged�
In this LED status the electrical voltage in
6 Volt operating mode is approximately
6�1 Volt and in 12 Volt operating mode
it is approximately 12 Volt� It is recom-
mended that the battery is recharged�
If the "fully charged" LED lights up, then
„
the battery is fully charged and ready to
start� In this LED status the electrical volt-
age in 6 Volt operating mode is approxi-
mately 6�4 Volt and in 12 Volt operating
mode it is approximately 12�6 Volt�
Attention: Please refer to the
operating instructions about the mainte-
nance of the battery prior to charging!
Note:
If no LED lights up in 6 V
operating mode, then it can be
assumed that the battery is
defective or deeply discharged�
If an LED in the 6 V operating mode lights
up when a 12 V battery is connected,
then it can be assumed that the battery is
deeply discharged or defective�
z Testing alternators
Connect the device to the battery as
„
described under "Operation"�
Start the engine and switch on all
„
consumers (headlights, radio, heated rear
window, etc�)�
Briefly increase the idle speed to 2500 RPM�
„
If the "charging function O�K�" LED to
„
"charging function MAXIMUM" lights up, the
alternator or voltage regulator is OK� In this
