PLEASE
REFER
TO THE
OPERATION
MANUAL.

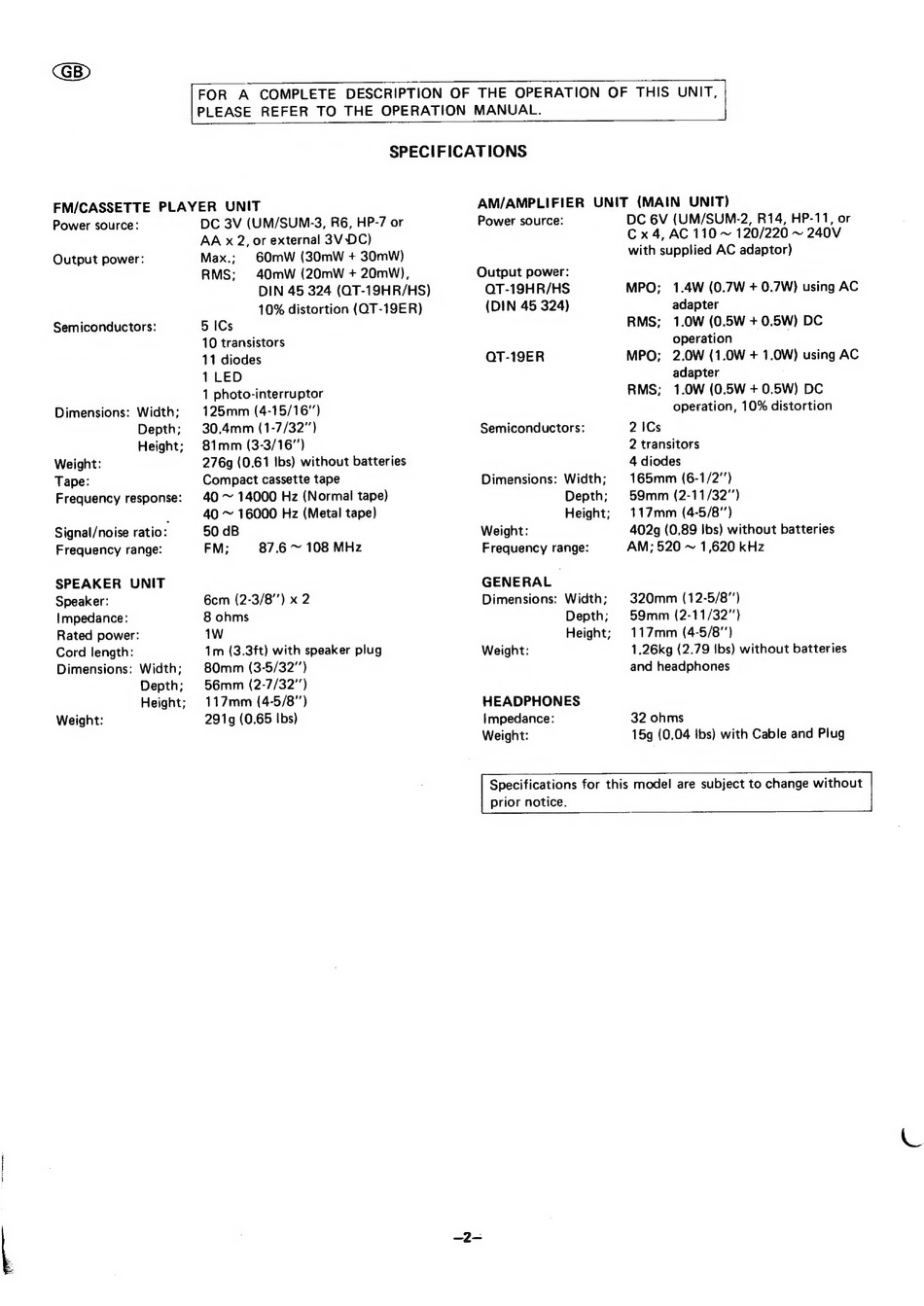

SPECIFICATIONS
FM/CASSETTE
PLAYER
UNIT
Power source:
Output power:
Semiconductors:
Dimensions:
Width;
Depth;
Height;
Weight:
Tape:
Frequency response:
Signal/noise ratio :
Frequency range:
SPEAKER
UNIT
Speaker:
Impedance:
Rated power:
Cord length:
Dimensions:
Width;
Depth;
Height;
Weight:
DC 3V (UM/SUM-3, RG, HP-7 or
AA x 2, or external 3V DC)
Max.;
6O0mW (30mW + 30mW)
RMS;
40mW (20mW + 20mW),
DIN 45 324 (QT-19HR/HS)
10% distortion (OT-19ER)
5 ICs
10 transistors
11 diodes
1LED
1 photo-interruptor
125mm (4-15/16")
30.4mm (1-7/32")
81mm (3-3/16")
276g (0.61 Ibs) without batteries
Compact cassette tape
40 ~ 14000 Hz (Normal tape)
40 ~ 16000 Hz (Metal tape)
50 dB
FM;
87.6
~ 108 MHz
6em (2-3/8'") x 2
8 ohms
1W
1m (3.3ft) with speaker plug
80mm (3-5/32")
56mm (2-7/32")
117mm (4-5/8)
291g (0.65 Ibs)
AM/AMPLIFIER
UNIT
(MAIN
UNIT)
Power source:
Output power:
QT-19HR/HS
(DIN 45 324)
QT-19ER
Semiconductors:
Dimensions:
Width;
Depth;
Height;
Weight:
Frequency range:
GENERAL
Dimensions:
Width;
Depth;
Height;
Weight:
HEADPHONES
Impedance:
Weight:
DC 6V (UM/SUM-2, R14, HP-11, or
Cx 4, AC 110 ~ 120/220 ~ 240V
with supplied AC adaptor)
MPO;
1.4W (0.7W + 0.7W) using AC
adapter
1.0W (0.5W + 0.5W) DC
operation
2.0W (1.0W + 1.0W) using AC
adapter
1.0W (0.5W + 0.5W) DC
operation, 10% distortion
RMS;
MPO;
RMS;
2 ICs
2 transitors
4 diodes
165mm (6-1/2'')
59mm (2-11/32")
117mm (4-5/8)
402g (0.89 Ibs) without batteries
AM; 520 ~ 1,620 kHz
320mm (12-5/8"')
59mm (2-11/32")
117mm (4-5/8")
1.26kg (2.79 Ibs) without batteries
and headphones
32 ohms
15g (0.04 Ibs) with Cable and Plug
Specifications for this model are subject to change wi
prior notice.
thout
