24
EXERCISE COMPUTER / LEVELS

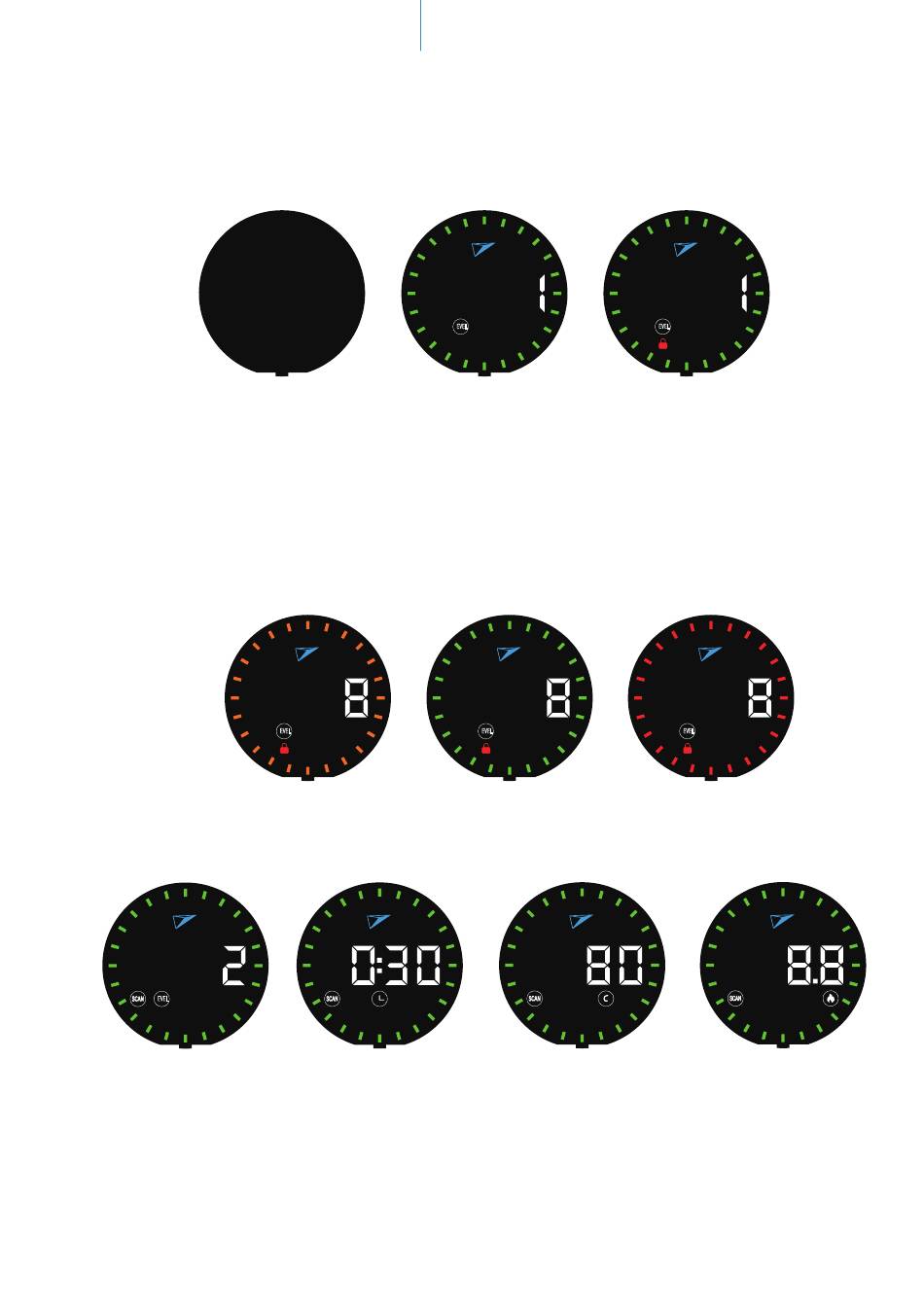

When the machine is not powered on, the center control knob screen is black. (Figure 1)
After startup, all ICONS are displayed brightly for 3s and the resistance is automatically set to level 1.
Press the training computer to start the resistance adjustment function. (Figure 2)
After pulling the rope, the red lock lights up, representing the unadjustable resistance at this time.
(Figure 3)
LEVEL
LEVEL
Figure 1
Figure 2
Figure 3
In the process of resistance adjustment, the outer dial is orange, and pulling the rope is prohibited in
this state. (Figure 4)
The resistance adjustment ends, the outer dial turns green and the rope can be pulled at this
time. (Figure 5)
The outer dial flashes red, indicating abnormal resistance adjustment. The user needs to put back the
rope and the system will recalibrate the resistance after detecting that the rope has been returned.
After the outer dial turns green, continuous use is possible. (Figure 6)
If you find that the displayed Level is not consistent with the actual weight, please cycle twice from
level 1 to level 3 to fix it.
LEVEL
LEVEL
LEVEL
Figure 4
Figure 5
Figure 6
At the start of the training session, the level, time, number and calories are displayed in automatic
alternation, with each function being displayed for approx. 3 seconds:
LEVE L
Press the training computer during training to select one of the four functions (level, time, number of
repetitions, calories) as a fixed window for the display.
At the end of the training session, press and hold the training computer for 3 seconds to delete the
training data, reset the level to 1 and switch to standby mode.
