Window Edit

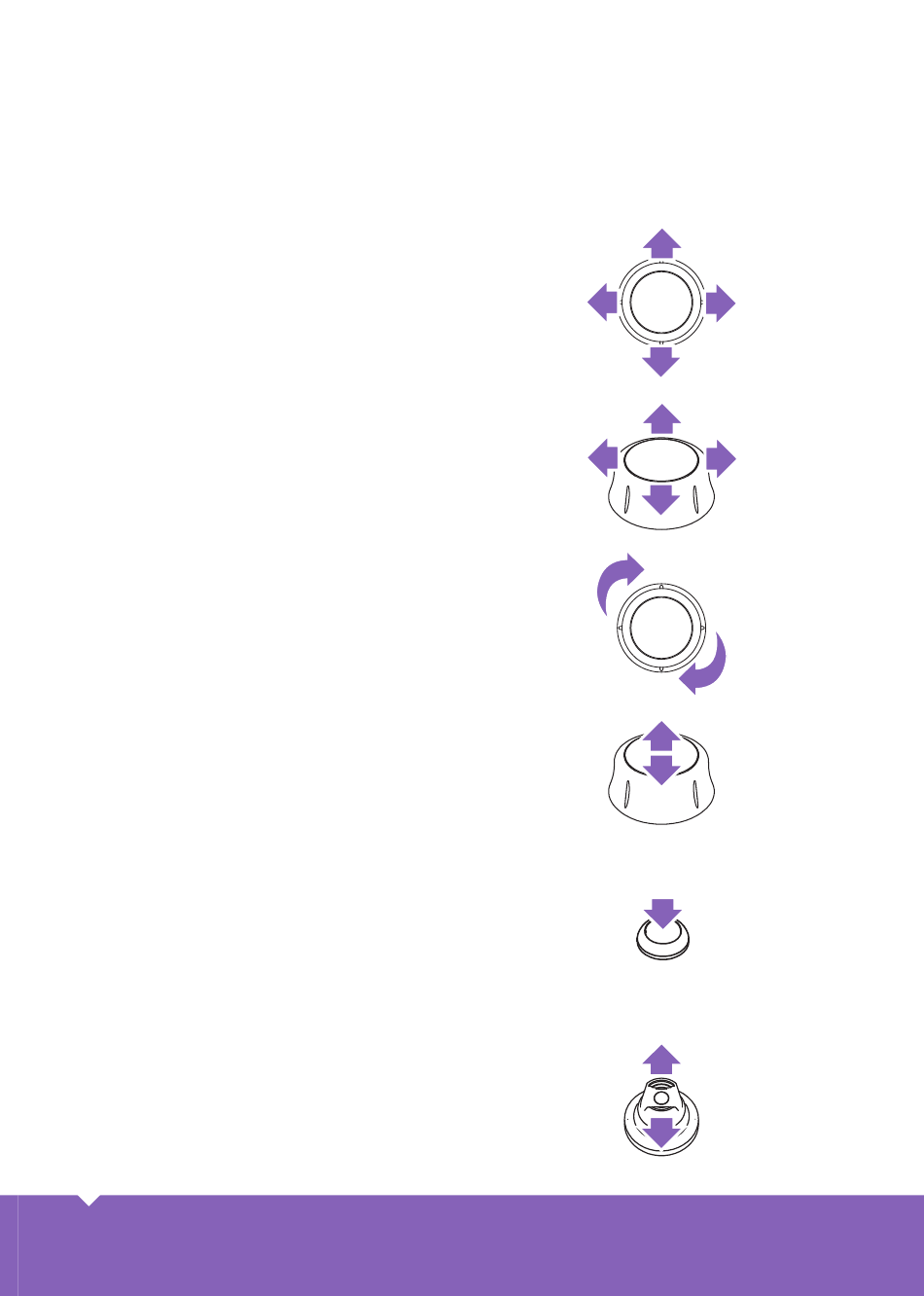

The operating elements are primarily used to operate the laser of Profi NG and to move the
3D view. In order to have all described functions available, proTab has to be connected to
Profi NG and can3D
Move view
Move the 3D joystick to the left or right, forward
or backward.
Tilt view
Tilt the 3D joystick to the left or right, forward or
backward.
Turn view
Turn the 3D joystick to the left or right, forward
or backward.
Zoom view
Push the 3D joystick or pull it upwards
respectively to zoom out or in.
Switch on laser/ Make measurement
Push the button to switch on the laser of Profi
NG .
If the laser is active, pushing the button makes a
measurement.
In various measurement dialogs pushing the
button triggers another measurement or the
next step of the procedure.
Pan laser
Push the mini joystick forward to move the laser
of Profi NG upwards.
Push the mini joystick backward to move the
laser of Profi NG downwards.
EN
NG has to be used.
®
