pulling the end of the strap firmly so there is no slack left
(Figure 17).
Using the tripod socket: The camera is equipped with a socket
at the bottom end to enable mounting on a tripod or other
mounting accessories with a standard UNC 1/4-20 thread screw
(not included).
10.2. Sensing Angle and Distance Test
To test whether the camera can effectively monitor the area
you choose, this test is recommended to check the sensing
angle and monitoring distance of the camera. To perform the
test:
Switch the camera to the ON mode.
Press MENU button, go to "Motion Test". The camera will
count down a max 60-second delay and be ready to capture
motion. (Note: The delay time may be less than 60 seconds,
depending on the actual time of the motion sensor to be
activated. The delay time is 60 seconds minus the power-on
time.)
Close the camera door.
Make movements in front of the camera at several positions

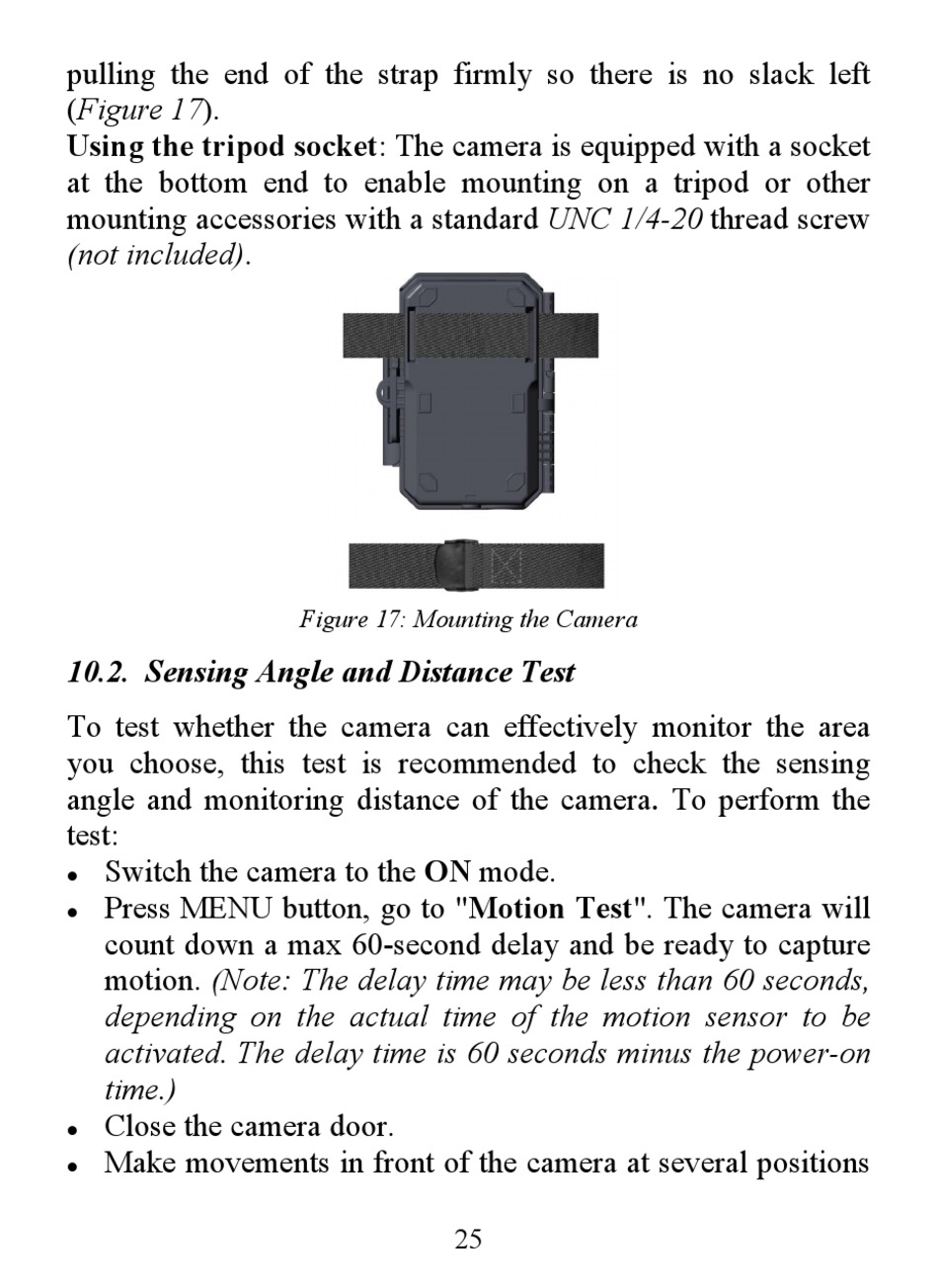

Figure 17: Mounting the Camera
25
