Novy Easy 80 Pro Montageanleitung Seite 42

EN
6a

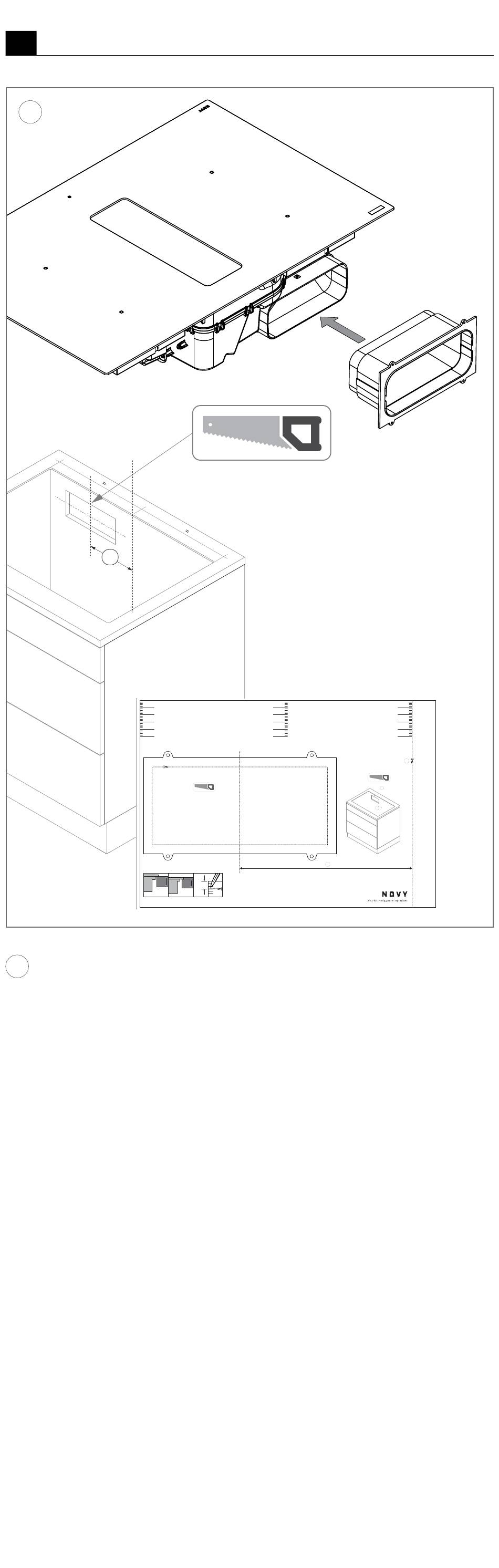

Connection with adapter to the back panel
6a
If the connection is to be made directly to the
back panel of the furniture, first slide the supplied
adapter onto the unit and then fix it with adhesive
tape for airtight connections.
Then push the adapter completely closed.
Make a recess in the back panel according to
the the diagram supplied.
