- Do not sit, climb or place any objects on the radiator fitted with the V-POWER ventilation unit.
-
Warning!
Some parts of the product can get very hot and cause burns!
under 3 years
- Children
- This appliance may be used by children aged
- Children between the ages
operating position and if they are supervised. They must not insert the plug into the socket, clean the appliance or carry
out maintenance which is carried out by the user.
- Persons with reduced physical, sensory or mental abilities or lack of experience and knowledge may only operate the
appliance provided that they are supervised or have been instructed in the safe use of the appliance and understand the
EN
possible dangers.
- Children must not play with the appliance.
out by unsupervised children!
The V-POWER ventilation unit increases the flow of air, therefore the wall near it may be prone to discolouration.
10. Maintenance
- Perform installation and maintenance with the power supply disconnected from the mains.
- Regularly remove dust from the surface of the radiator.
- Do not use abrasive cleaners or solvents when cleaning.
- When cleaning, make sure that no moisture gets into the V-POWER ventilation unit.
- Do not make any modifications to the V-POWER ventilation unit which would alter its function.
- Any work on and repairs to the RADIK V-POWER SET (RADIK V-POWER SET BASIC) may only be carried out by a
specialist with the appropriate electrical qualifications, who is also trained for this purpose by the manufacturer of this
retrofitting set.
„ Circuit diagram

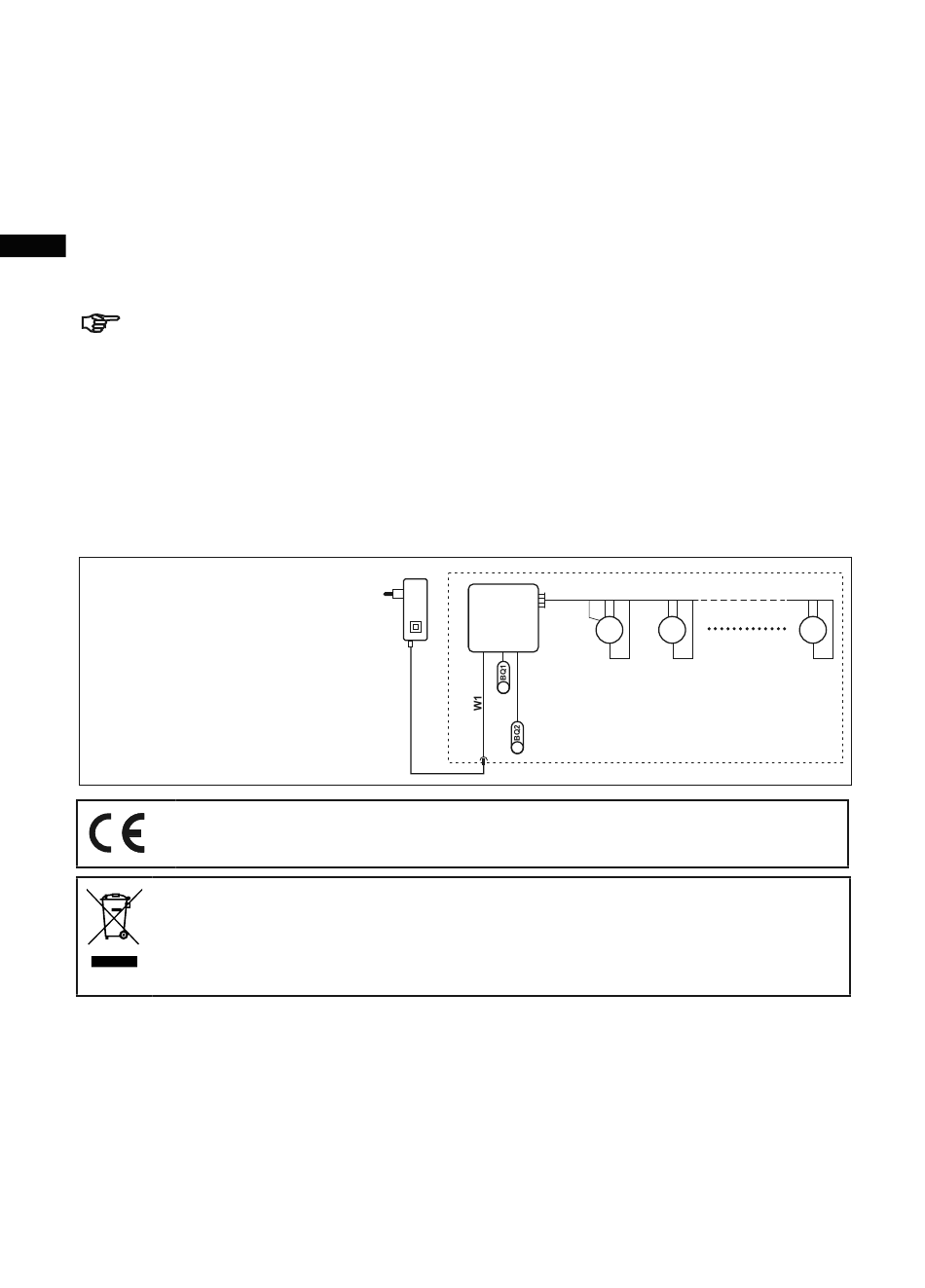

Electrical diagram:
V-POWER SET, V-POWER SET BASIC:
G1
- power supply 230Vac / 12Vdc 2A
A1
- control unit with panel
BQ1
- surface temperature sensor
BQ2
- ambient temperature sensor
M1, M2 ... M13
- fan motors
XS1
- power connector
KORADO a.s. declares that the RADIK V-POWER product complies with the basic requirements and
other provisions of Directives 305/2011/EU, 2014/30/EU and 2011/65/EU. The original declaration of
performance/conformity can be found at https://www.korado.cz/ in the downloads section.
Waste electrical and electronic equipment
Electrical or electronic equipment that is no longer fit for use must be collected separately and sent for
environmentally friendly recycling (European Waste Electrical and Electronic Equipment Directive). Use
returnable and collection systems established in the country to dispose of waste electrical or electronic
equipment. Although the product does not contain any hazardous materials, do not dispose of it together
with regular waste, but take it to an electrical waste collection point.
of age should be prevented from accessing the appliance unless they are supervised at all times.
8 or
older!
of 3 and 8
may operate the V-POWER ventilation unit only if it is installed in the normal
Cleaning and maintenance carried out by the user must not be carried
G1
230V
AC
G1
230V
G1
AC
230V
AC
W2
JP2
A1
W2
JP2
M1
A1
W2
JP2
JP5 JP1 JP3
A1
M1
M1
JP5 JP1 JP3
V-POWER
JP5 JP1 JP3
V-POWER
RADIK V-POWER
V-POWER
XS1
XS1
XS1
24
M2
M13
M2
M13
M2
M13
