Quick Tools QUICK QU968A+ Bedienungsanleitung Seite 16

soldering tip 960
①
sleeve QUSH0940
②
knurled nut QURMM10
③
④
knurled nut
⑤
heating element QUHKH1901R
⑥
earthing spring
⑦
⑧
plastic part
⑨
cable clamp
⑩
⑪
We hope you enjoy using your QUICK soldering station and are interested in
your suggestions for improvements.
Please contact us if you have any problems or questions about your application.
Your Bräunlich GmbH team
sleeve
QUHKV901A
spring
handle
After replacing the heating element,
the following measurement is
recommended:

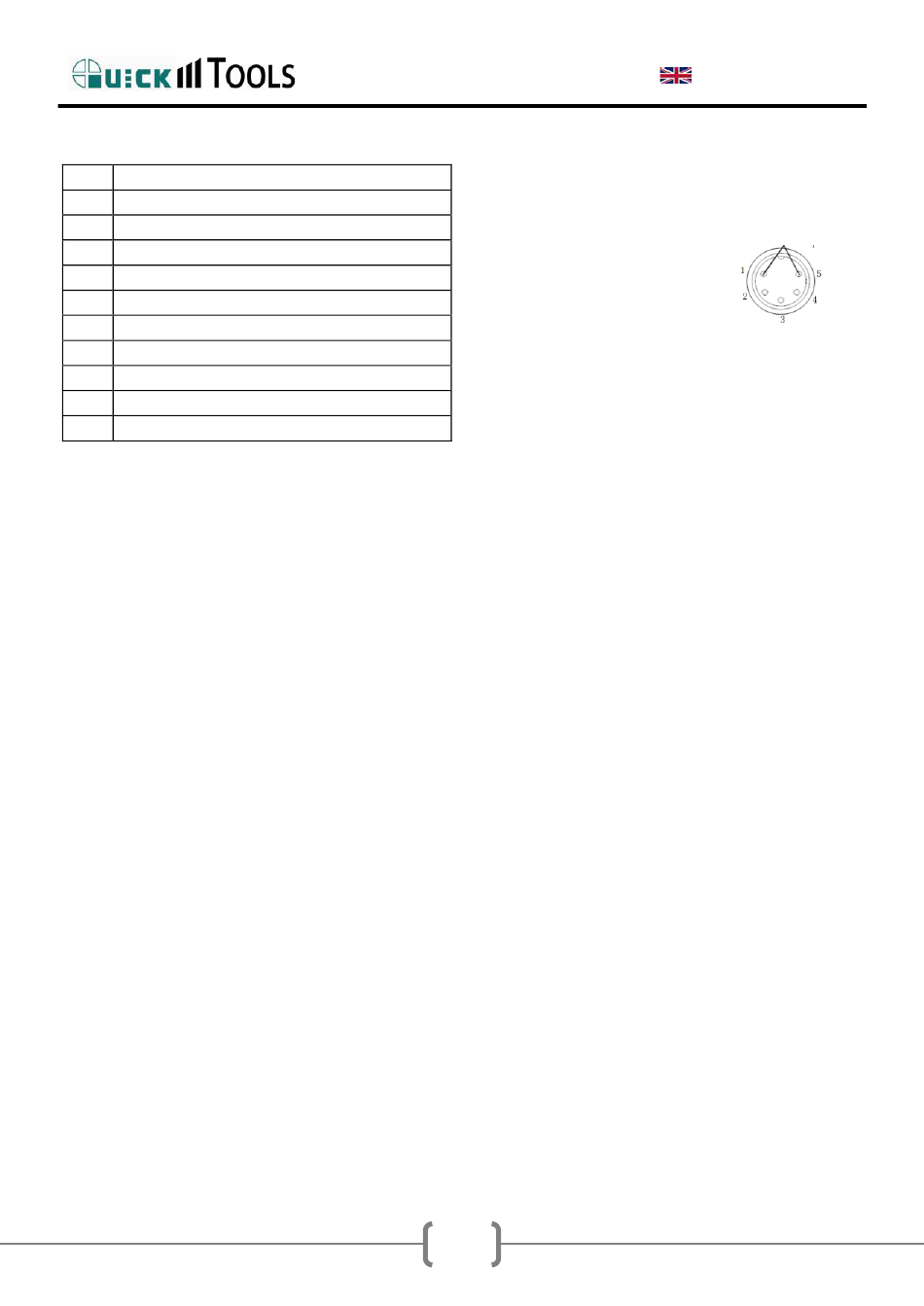

The resistance between
pin 1 and 5 must be 10
Ω(+/-1)!
Calibrate the soldering tip temperature
after replacing the heating element.
6
USER MANUAL
