17

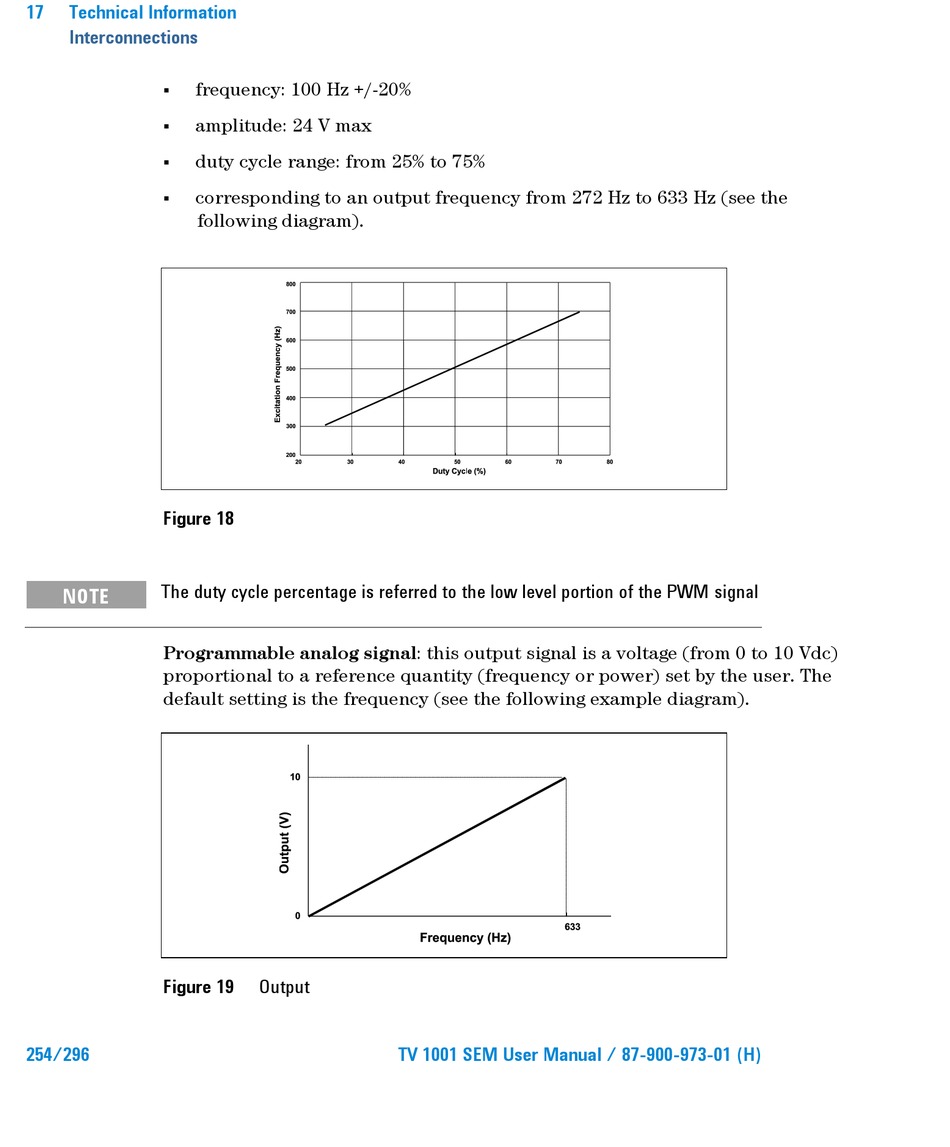

Technical Information
Interconnections
Figure 18
The duty cycle percentage is referred to the low level portion of the PWM signal
NOTE
Programmable analog signal: this output signal is a voltage (from 0 to 10 Vdc)
proportional to a reference quantity (frequency or power) set by the user. The
default setting is the frequency (see the following example diagram).
Figure 19
254/296
frequency: 100 Hz +/-20%
amplitude: 24 V max
duty cycle range: from 25% to 75%
corresponding to an output frequency from 272 Hz to 633 Hz (see the
following diagram).
Output
TV 1001 SEM User Manual / 87-900-973-01 (H)
