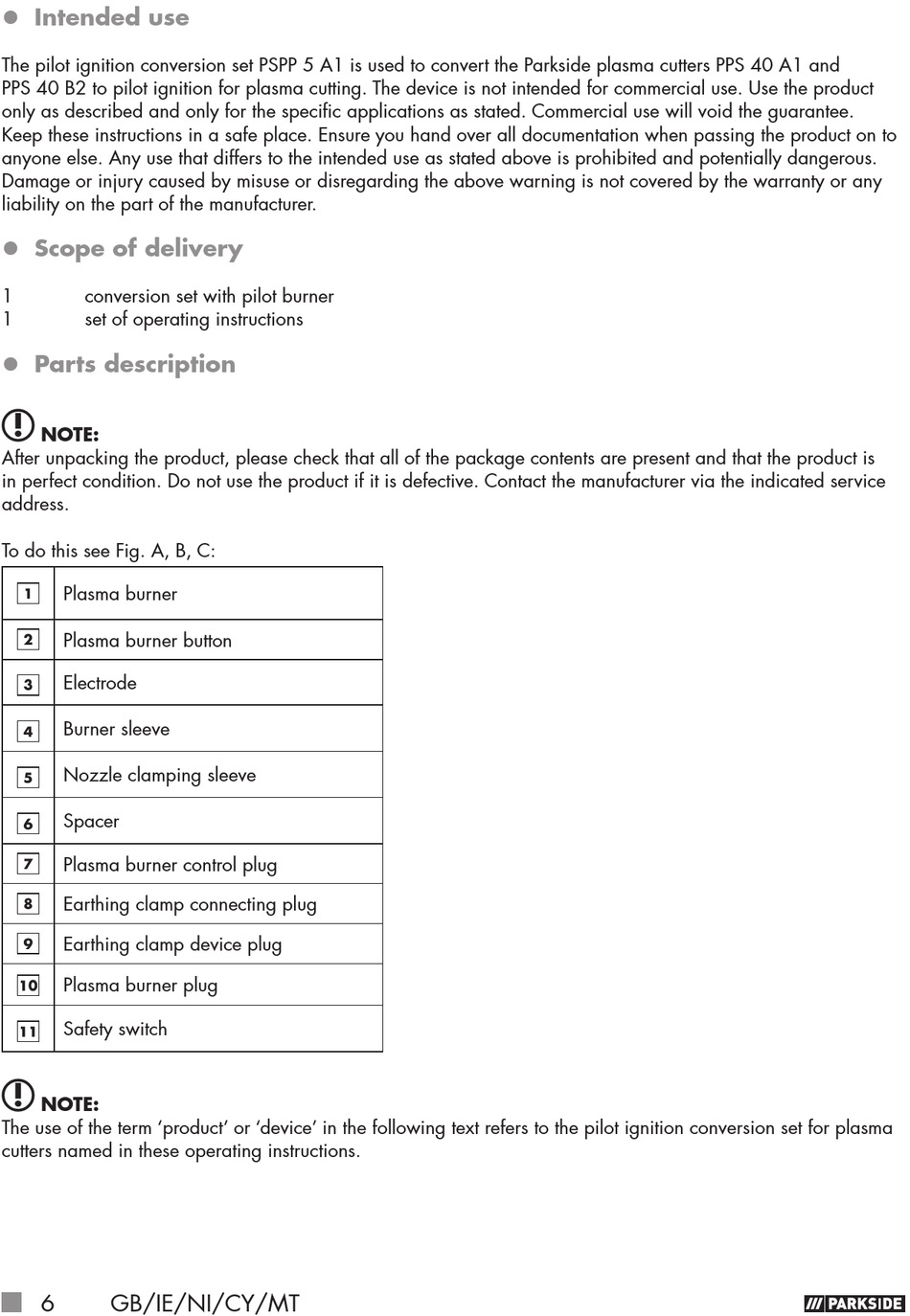

 Intended use
The pilot ignition conversion set PSPP 5 A1 is used to convert the Parkside plasma cutters PPS 40 A1 and
PPS 40 B2 to pilot ignition for plasma cutting. The device is not intended for commercial use. Use the product
only as described and only for the specifi c applications as stated. Commercial use will void the guarantee.
Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to
anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous.
Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any
liability on the part of the manufacturer.
 Scope of delivery
1 conversion set with pilot burner
1 set of operating instructions
 Parts description
NOTE:
After unpacking the product, please check that all of the package contents are present and that the product is
in perfect condition. Do not use the product if it is defective. Contact the manufacturer via the indicated service
address.
To do this see Fig. A, B, C:
Plasma burner
1
Plasma burner button
2
Electrode
3
Burner sleeve
4
Nozzle clamping sleeve
5
Spacer
6
Plasma burner control plug
7
Earthing clamp connecting plug
8
Earthing clamp device plug
9
Plasma burner plug
10
Safety switch
11
NOTE:
The use of the term 'product' or 'device' in the following text refers to the pilot ignition conversion set for plasma
cutters named in these operating instructions.
