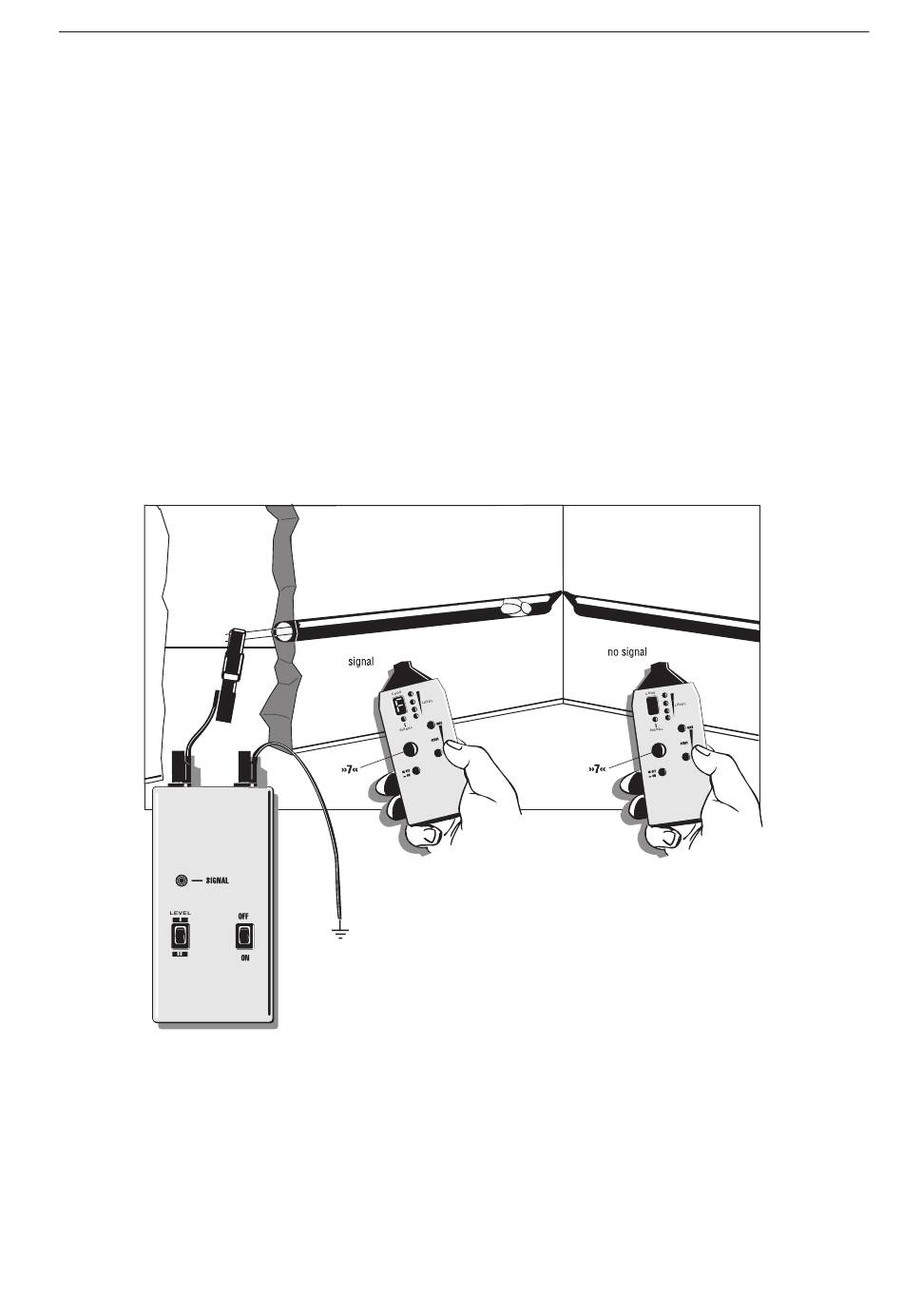

Locating of bottlenecks (obstructions) in installation pipes.
Example 4 (single-pole application)
NOTE:
By touching the contact electrode „7" the sensitivity range is increased to factor 1.5.
Tracing depht approx. 0. . . 40 cm
Requirements:
1) Any circuits in the pipe must be dead and grounded.
2) Connect transmitter to the metal coil and auxiliary ground according to figure 4.
3) Carry out this example as described in the application example
Systematically circle round the interruption by changing the sensitivity.
Requirements:
If you have only one coil actual of non conducting materieal (f.ex.. fiber), we recommand you
to slide a copper wire p.ex.1,5 mm2up to the X-place.
