Operation
6.5.1 Nominal width 1000, 1050,1200,1250,1350,1500 – Bracket II

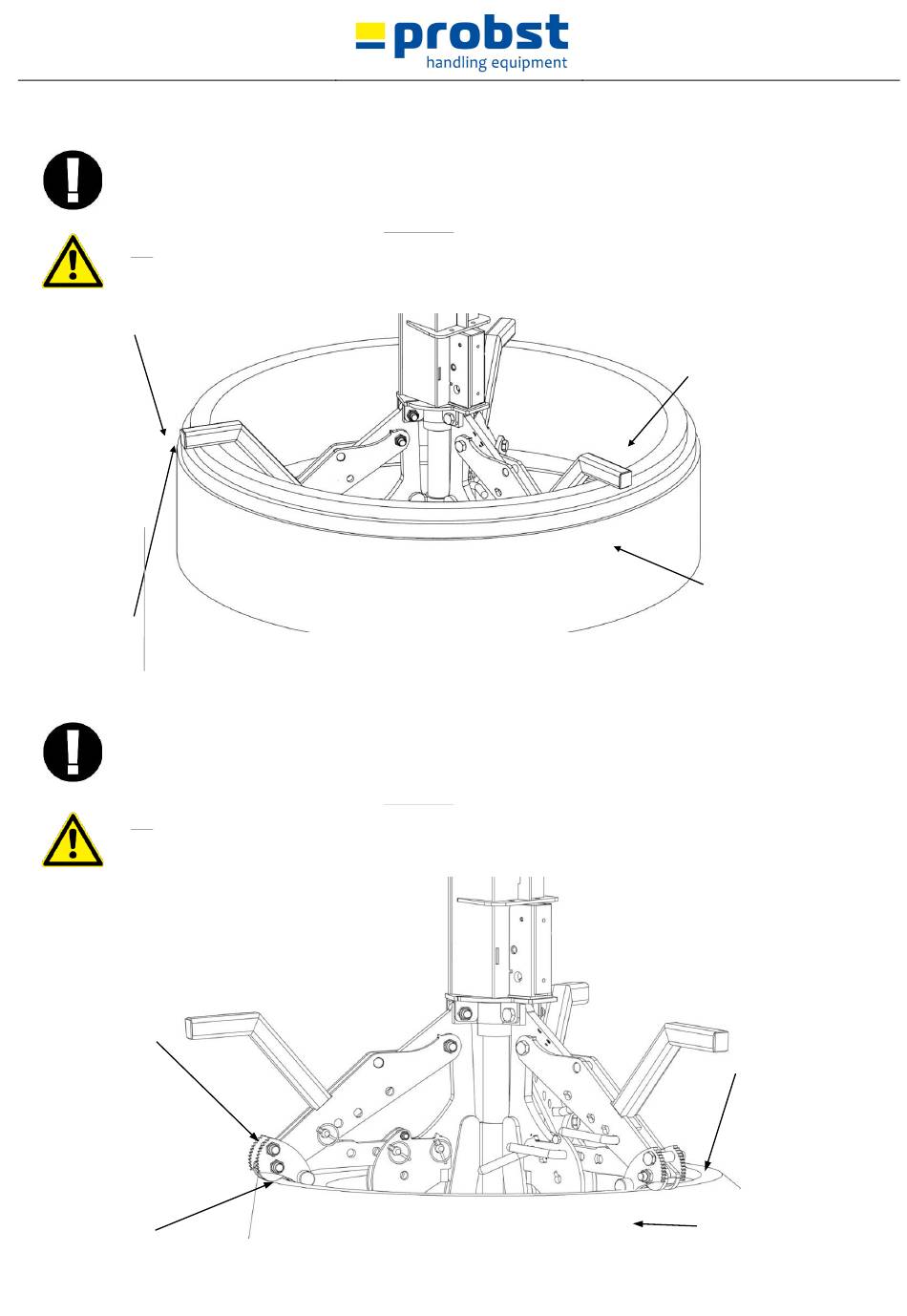

All three stabilizers of the device must always rest on the upper edge of the gripping good (manhole)! (see
Fig. 3)
As soon as only one of the three stabilizers has a larger distance than 15 mm (between stabilizer lower edge
and gripping good upper edge), it is in no case allowed, to lifted the gripping good!
TIP: Lower the device to the ground and try again.
Otherwise it exists slipping danger of the gripping good!
Stabilizer
Stabilizer
lower edge
6.5.2 Nominal width 625 - 800 – Bracket III
All three stabilizers of the device must always rest on the upper edge of the gripping good (manhole/cone)!
(see Fig. 4)
As soon as only one of the three stabilizers has a larger distance than 15 mm (between stabilizer lower edge
and gripping good upper edge), it is in no case allowed, to lifted the gripping good !
TIP: Lower the device to the ground and try again.
Otherwise it exists slipping danger of the gripping good!
Upper bracket
(Bracket II)
Lower edge of
upper bracket
Fig. 4
19 / 25
Gripping
good upper
edge
Gripping
good
(manhole)
Fig. 3
Upper
edege of
gripping
good
Gripping good
(manhole)
