Operation

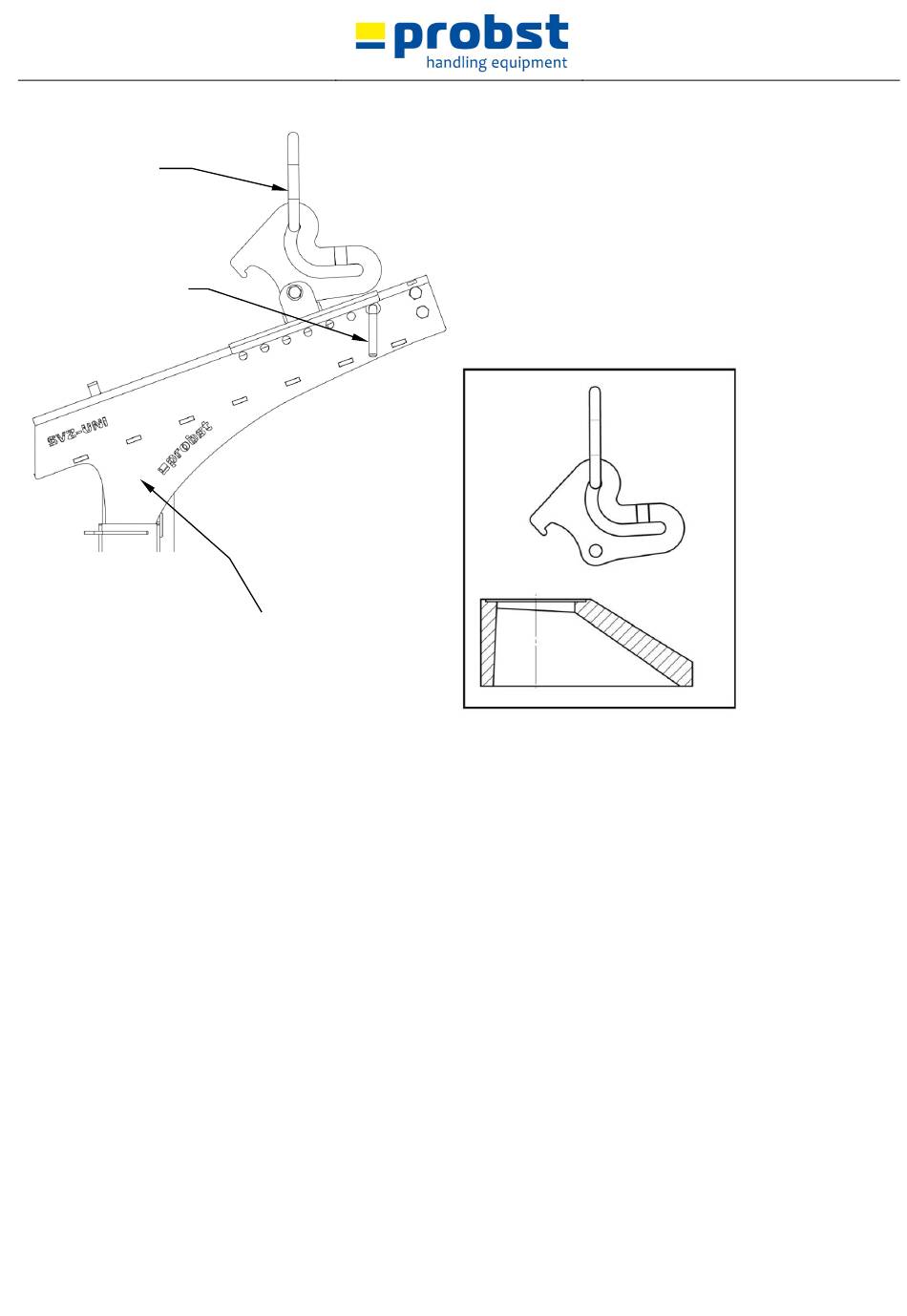

6.4 Gripping of cones
Lifting eye
Limit stop bolt
Upper part
Position for gripping cones (which have due to its form a
shifted center of gravity). The movable slide ensures that
the lifting point can be positioned over the center of gravity.
● Move the shifting gate in the shown position shown →
movable slide is now "unlocked".
●
Adjust the limit stop bolt (by trial and error) so ,that the
cones hangs horizontally when lifting.
