probst SVZ-UNI-VARIO Betriebsanleitung Seite 45

Adjustments

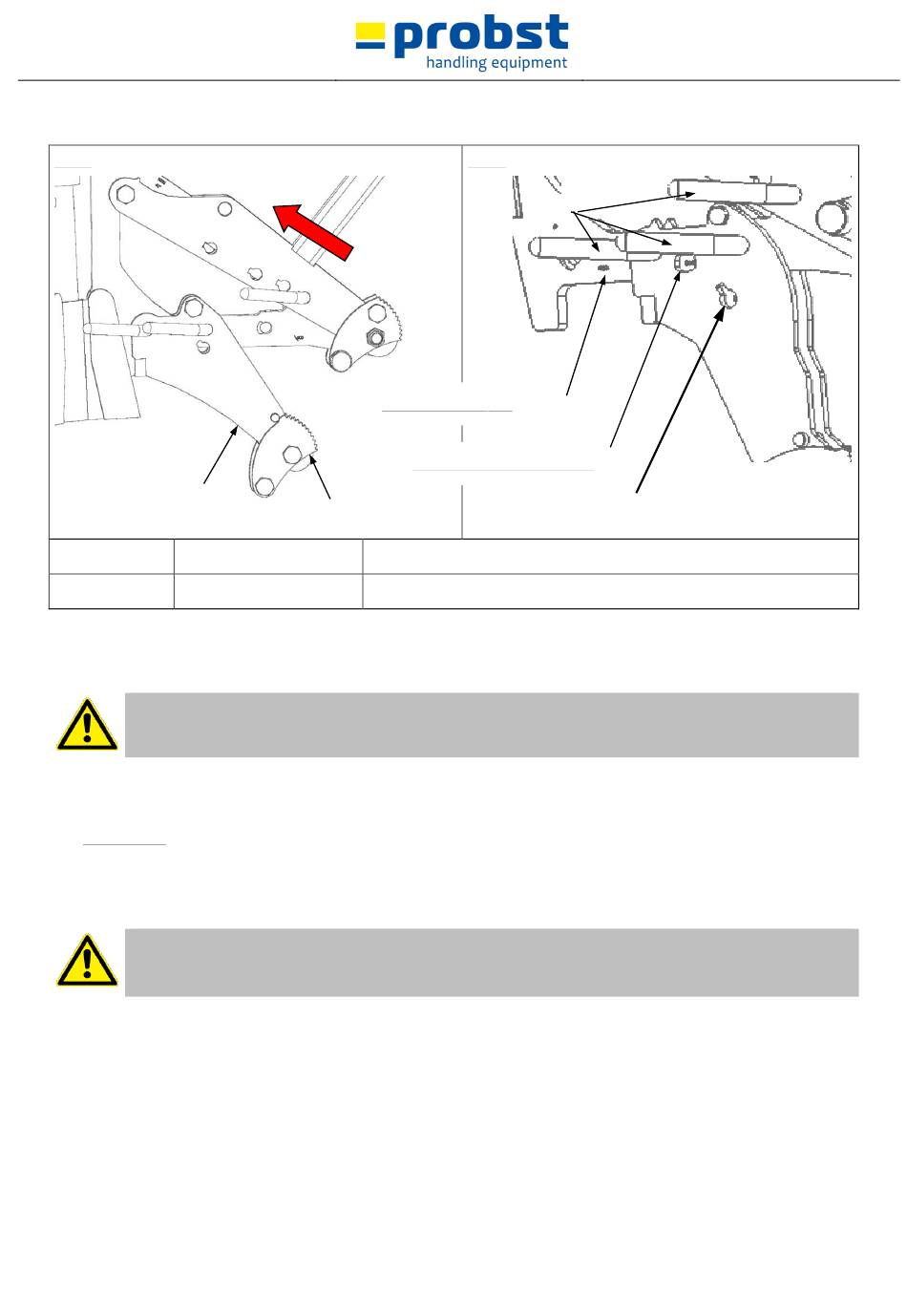

5.1.2 Bracket III
Fig. 3
Bracket holder
Variant: Application for:
Bracket III manholes / cones
*
= (NW) Nominal width of gripping goods
** = Tolerance ± 10 mm (± 7/16")
PROCEDURE
Caution with adjustments at the device, do not grip into moveable parts.
Danger of injury the hands!
●
To adjust the respective nominal width, first remove the safety clips at the socket pin and then pull out the
socket pin (Pos.1).
●
Position bracket holder at the respective nominal width 800 (Fig. 4).
ATTENTION: DO NOT INSERT THE SOCKET PIN IN THE STAND-BY POSITION!
●
Insert the socket pin (Pos.1) again into respective hole.
●
Secure socket pin (Pos.1) again with safety clip.
●
Bracket II must be moved inwards (see arrow–picture 3)!
Take notice, that all three brackets are adjusted to the same nominal width.
Slipping danger of gripping good!
Fig. 4
Nominal width
625
Nominal width
Display
Bracket III
Stand-by position
*
NW (Inner-Ø) mm
**
625 - 800
Pos.1
800
13 / 25
