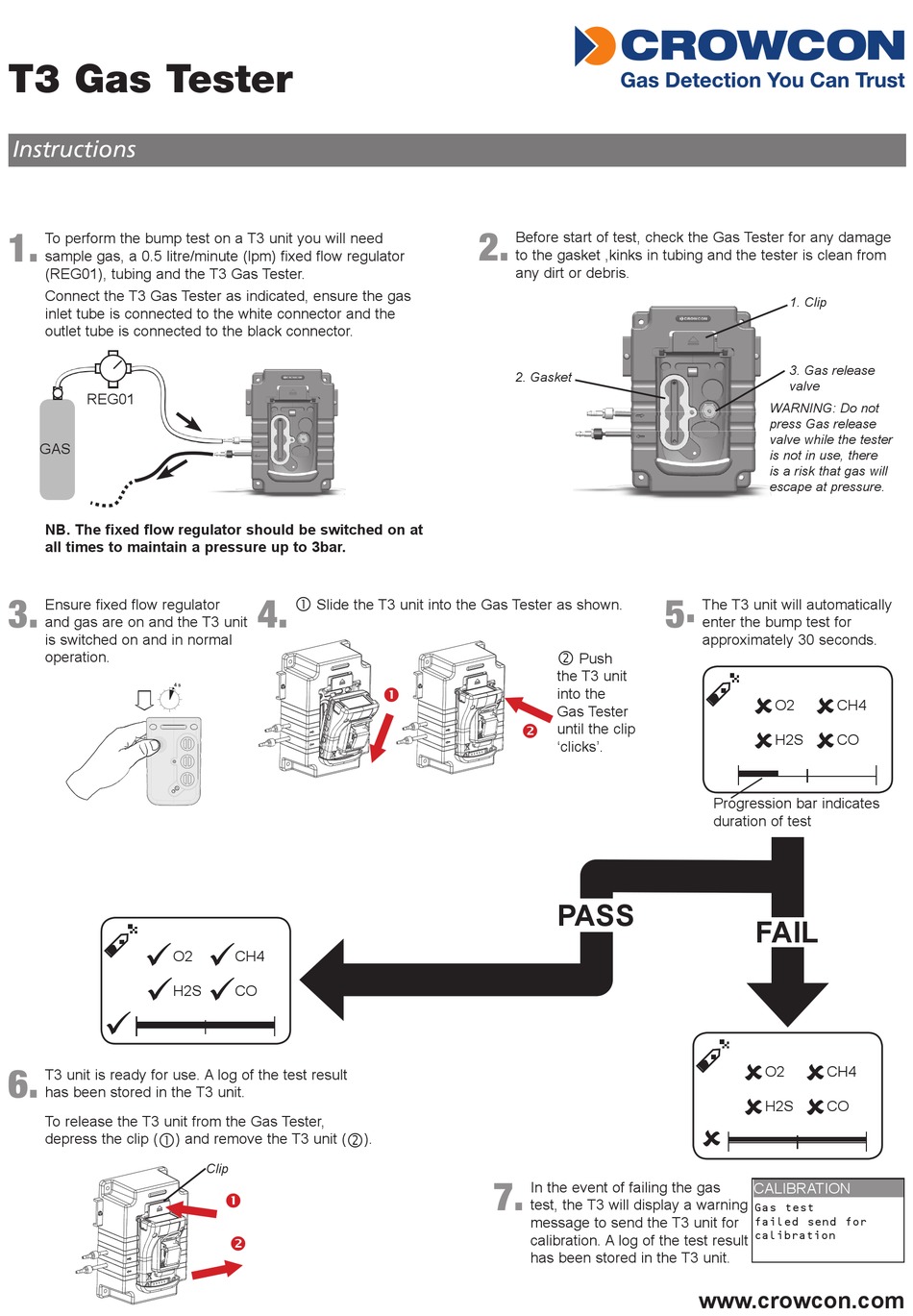

T3 Gas Tester
Instructions
1.
To perform the bump test on a T3 unit you will need
sample gas, a 0.5 litre/minute (lpm) fixed flow regulator
(REG01), tubing and the T3 Gas Tester.
Connect the T3 Gas Tester as indicated, ensure the gas
inlet tube is connected to the white connector and the
outlet tube is connected to the black connector.
REG01
GAS
NB. The fixed flow regulator should be switched on at
all times to maintain a pressure up to 3bar.
3.
Ensure fixed flow regulator
and gas are on and the T3 unit
is switched on and in normal
operation.
4 s

O2

H2S

6.
T3 unit is ready for use. A log of the test result
has been stored in the T3 unit.
To release the T3 unit from the Gas Tester,
depress the clip ( ) and remove the T3 unit (

4.

Slide the T3 unit into the Gas Tester as shown.

CH4

CO
).

Clip


2.
Before start of test, check the Gas Tester for any damage
to the gasket ,kinks in tubing and the tester is clean from
any dirt or debris.
2. Gasket


7.
In the event of failing the gas
test, the T3 will display a warning
message to send the T3 unit for
calibration. A log of the test result
has been stored in the T3 unit.
5 .
The T3 unit will automatically
enter the bump test for
approximately 30 seconds.

Push
the T3 unit
into the
Gas Tester
until the clip
'clicks'.
Progression bar indicates
duration of test
PASS

www.crowcon.com
1. Clip
3. Gas release
valve
WARNING: Do not
press Gas release
valve while the tester
is not in use, there
is a risk that gas will
escape at pressure.
 
O2 CH4
 
H2S CO
FAIL
 
O2 CH4
 
H2S CO
CALIBRATION
Gas test
failed send for
calibration
