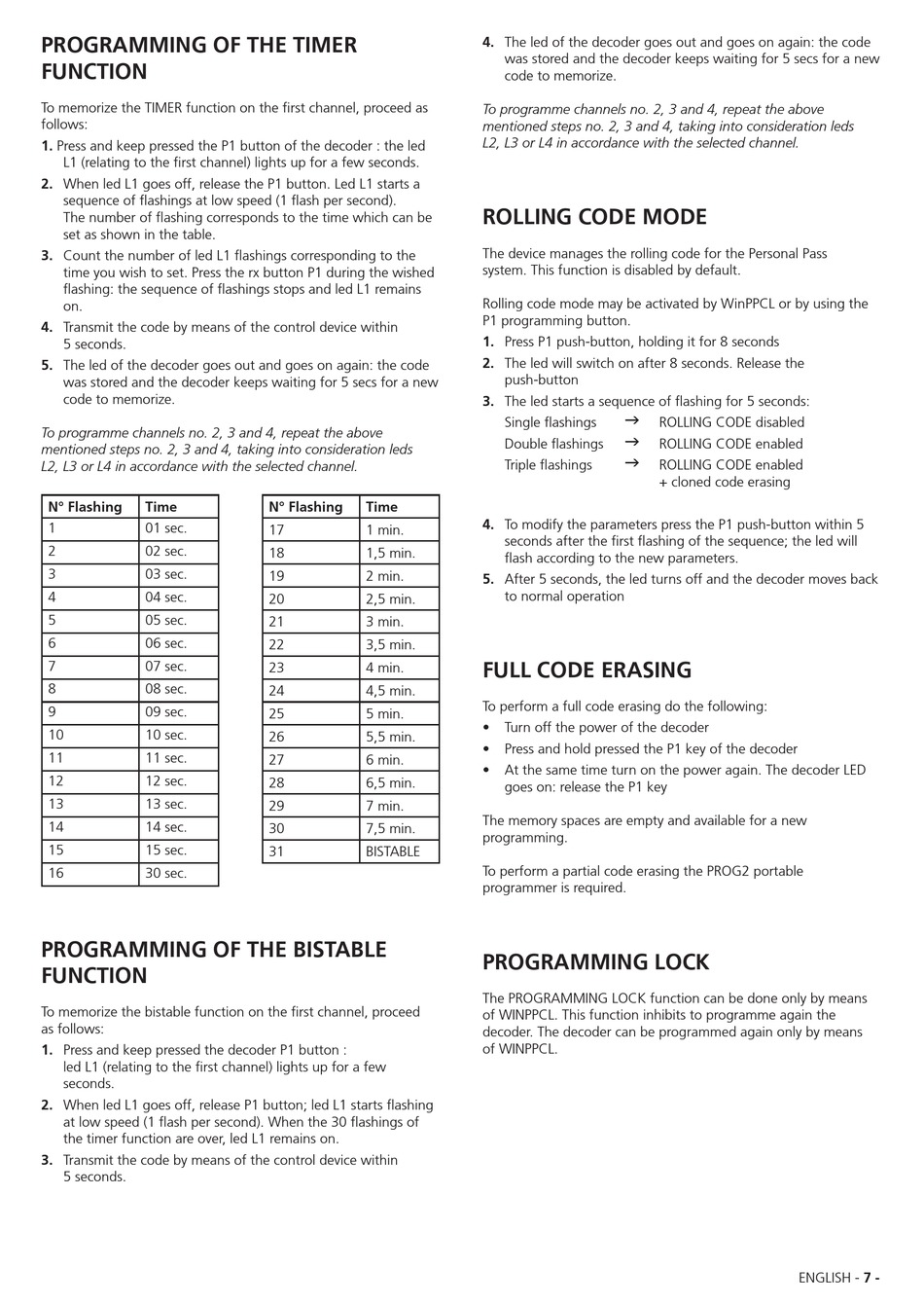

V2 DEC4-PLUS Bedienungsanleitung Seite 7

PROGRAMMING OF THE TIMER
FUNCTION
To memorize the TIMER function on the first channel, proceed as
follows:
1. Press and keep pressed the P1 button of the decoder : the led
L1 (relating to the first channel) lights up for a few seconds.
2. When led L1 goes off, release the P1 button. Led L1 starts a
sequence of flashings at low speed (1 flash per second).
The number of flashing corresponds to the time which can be
set as shown in the table.
3. Count the number of led L1 flashings corresponding to the
time you wish to set. Press the rx button P1 during the wished
flashing: the sequence of flashings stops and led L1 remains
on.
4. Transmit the code by means of the control device within
5 seconds.
5. The led of the decoder goes out and goes on again: the code
was stored and the decoder keeps waiting for 5 secs for a new
code to memorize.
To programme channels no. 2, 3 and 4, repeat the above
mentioned steps no. 2, 3 and 4, taking into consideration leds
L2, L3 or L4 in accordance with the selected channel.
N° Flashing Time
1 01 sec.
2 02 sec.
3 03 sec.
4 04 sec.
5 05 sec.
6 06 sec.
7 07 sec.
8 08 sec.
9 09 sec.
10 10 sec.
11 11 sec.
12 12 sec.
13 13 sec.
14 14 sec.
15 15 sec.
16 30 sec.
PROGRAMMING OF THE BISTABLE
FUNCTION
To memorize the bistable function on the first channel, proceed
as follows:
1. Press and keep pressed the decoder P1 button :
led L1 (relating to the first channel) lights up for a few
seconds.
2. When led L1 goes off, release P1 button; led L1 starts flashing
at low speed (1 flash per second). When the 30 flashings of
the timer function are over, led L1 remains on.
3. Transmit the code by means of the control device within
5 seconds.
N° Flashing Time
17 1 min.
18 1,5 min.
19 2 min.
20 2,5 min.
21 3 min.
22 3,5 min.
23 4 min.
24 4,5 min.
25 5 min.
26 5,5 min.
27 6 min.
28 6,5 min.
29 7 min.
30 7,5 min.
31 BISTABLE
4. The led of the decoder goes out and goes on again: the code
was stored and the decoder keeps waiting for 5 secs for a new
code to memorize.
To programme channels no. 2, 3 and 4, repeat the above
mentioned steps no. 2, 3 and 4, taking into consideration leds
L2, L3 or L4 in accordance with the selected channel.
ROLLING CODE MODE
The device manages the rolling code for the Personal Pass
system. This function is disabled by default.
Rolling code mode may be activated by WinPPCL or by using the
P1 programming button.
1. Press P1 push-button, holding it for 8 seconds
2. The led will switch on after 8 seconds. Release the
push-button
3. The led starts a sequence of flashing for 5 seconds:
g
Single flashings
g
Double flashings
g
Triple flashings
4. To modify the parameters press the P1 push-button within 5
seconds after the first flashing of the sequence; the led will
flash according to the new parameters.
5. After 5 seconds, the led turns off and the decoder moves back
to normal operation
FULL CODE ERASING
To perform a full code erasing do the following:
• Turn off the power of the decoder
• Press and hold pressed the P1 key of the decoder
• At the same time turn on the power again. The decoder LED
goes on: release the P1 key
The memory spaces are empty and available for a new
programming.
To perform a partial code erasing the PROG2 portable
programmer is required.
PROGRAMMING LOCK
The PROGRAMMING LOCK function can be done only by means
of WINPPCL. This function inhibits to programme again the
decoder. The decoder can be programmed again only by means
of WINPPCL.
ROLLING CODE disabled
ROLLING CODE enabled
ROLLING CODE enabled
+ cloned code erasing
ENGLISH - 7 -
