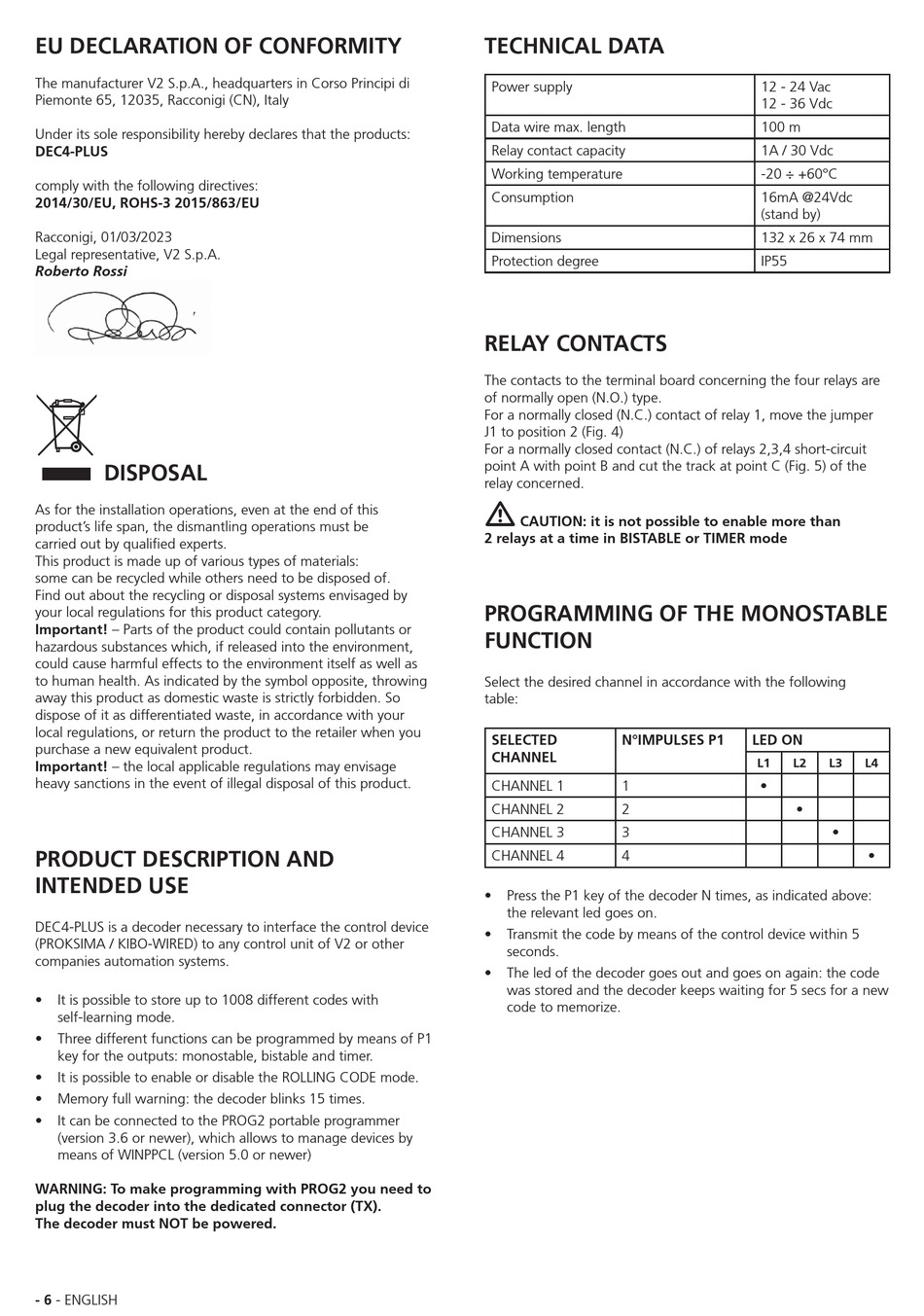

EU DECLARATION OF CONFORMITY
The manufacturer V2 S.p.A., headquarters in Corso Principi di
Piemonte 65, 12035, Racconigi (CN), Italy
Under its sole responsibility hereby declares that the products:
DEC4-PLUS
comply with the following directives:
2014/30/EU, ROHS-3 2015/863/EU
Racconigi, 01/03/2023
Legal representative, V2 S.p.A.
Roberto Rossi
DISPOSAL
As for the installation operations, even at the end of this
product's life span, the dismantling operations must be
carried out by qualified experts.
This product is made up of various types of materials:
some can be recycled while others need to be disposed of.
Find out about the recycling or disposal systems envisaged by
your local regulations for this product category.
Important! – Parts of the product could contain pollutants or
hazardous substances which, if released into the environment,
could cause harmful effects to the environment itself as well as
to human health. As indicated by the symbol opposite, throwing
away this product as domestic waste is strictly forbidden. So
dispose of it as differentiated waste, in accordance with your
local regulations, or return the product to the retailer when you
purchase a new equivalent product.
Important! – the local applicable regulations may envisage
heavy sanctions in the event of illegal disposal of this product.
PRODUCT DESCRIPTION AND
INTENDED USE
DEC4-PLUS is a decoder necessary to interface the control device
(PROKSIMA / KIBO-WIRED) to any control unit of V2 or other
companies automation systems.
• It is possible to store up to 1008 different codes with
self-learning mode.
• Three different functions can be programmed by means of P1
key for the outputs: monostable, bistable and timer.
• It is possible to enable or disable the ROLLING CODE mode.
• Memory full warning: the decoder blinks 15 times.
• It can be connected to the PROG2 portable programmer
(version 3.6 or newer), which allows to manage devices by
means of WINPPCL (version 5.0 or newer)
WARNING: To make programming with PROG2 you need to
plug the decoder into the dedicated connector (TX).
The decoder must NOT be powered.
- 6 - ENGLISH
TECHNICAL DATA
Power supply
Data wire max. length
Relay contact capacity
Working temperature
Consumption
Dimensions
Protection degree
RELAY CONTACTS
The contacts to the terminal board concerning the four relays are
of normally open (N.O.) type.
For a normally closed (N.C.) contact of relay 1, move the jumper
J1 to position 2 (Fig. 4)
For a normally closed contact (N.C.) of relays 2,3,4 short-circuit
point A with point B and cut the track at point C (Fig. 5) of the
relay concerned.
m
CAUTION: it is not possible to enable more than
2 relays at a time in BISTABLE or TIMER mode
PROGRAMMING OF THE MONOSTABLE
FUNCTION
Select the desired channel in accordance with the following
table:
SELECTED N°IMPULSES P1
CHANNEL
CHANNEL 1 1
CHANNEL 2 2
CHANNEL 3 3
CHANNEL 4 4
• Press the P1 key of the decoder N times, as indicated above:
the relevant led goes on.
• Transmit the code by means of the control device within 5
seconds.
• The led of the decoder goes out and goes on again: the code
was stored and the decoder keeps waiting for 5 secs for a new
code to memorize.
12 - 24 Vac
12 - 36 Vdc
100 m
1A / 30 Vdc
-20 ÷ +60°C
16mA @24Vdc
(stand by)
132 x 26 x 74 mm
IP55
LED ON
L1 L2 L3 L4
•
•
•
•
