6. WIRING DIAGRAMS
Before drilling the installation holes, it is recommended to carry out a functional test of the device. To do this,
connect the device for a test according to the wiring diagram. The first person holding the camera should use
the button to call the second person who is at the monitor. This person should then carefully inspect the
camera's field of view in order to correct the module's position if necessary.
Once the measurements have been taken accurately, proceed with the mounting holes after switching off the
power supply.

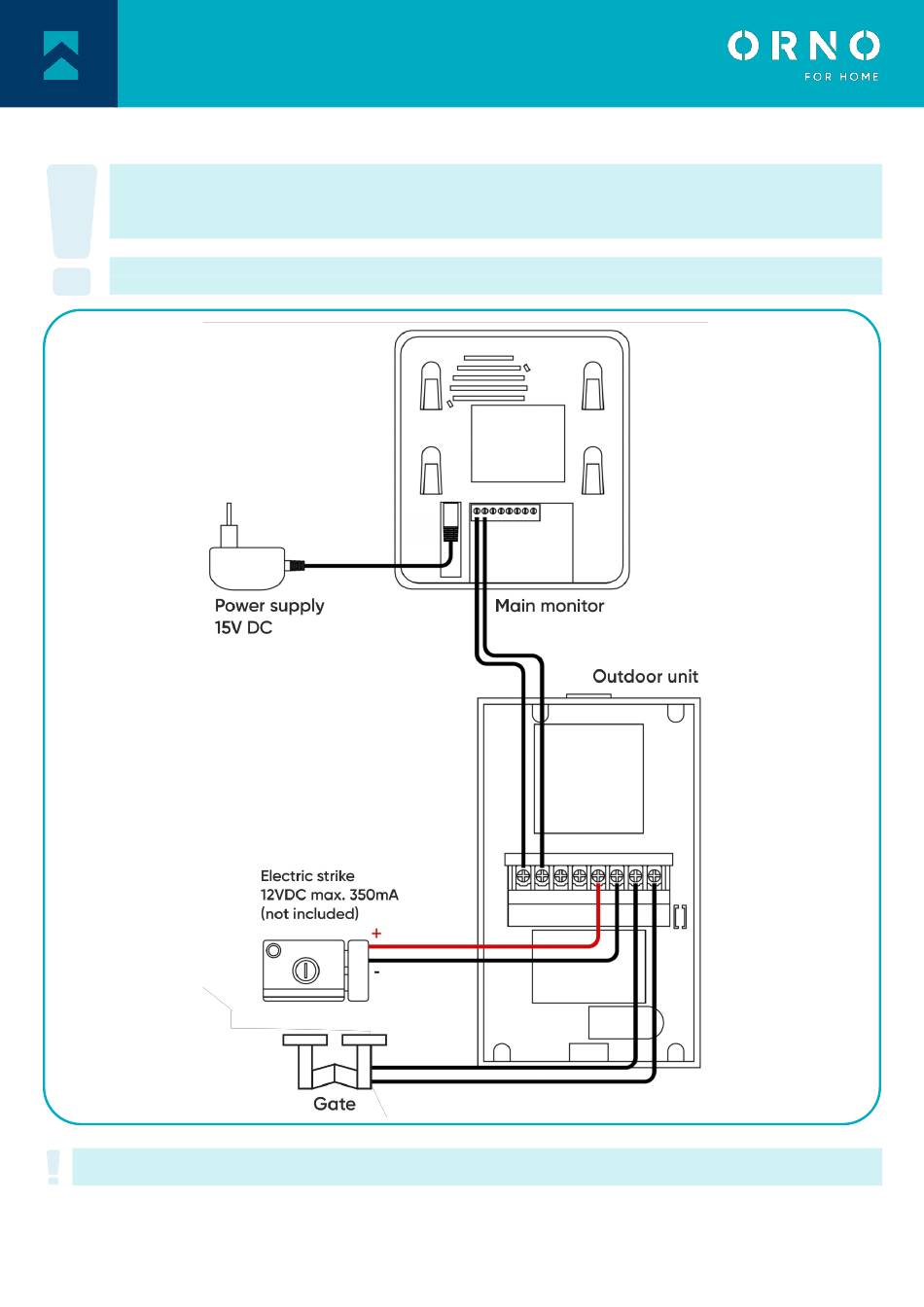

fig. 4 Wiring diagram
It is forbidden to make connections to live equipment!
Failure to adhere to this recommendation may result in permanent damage to the device and loss of health.
