4. SET CONSTRUCTION

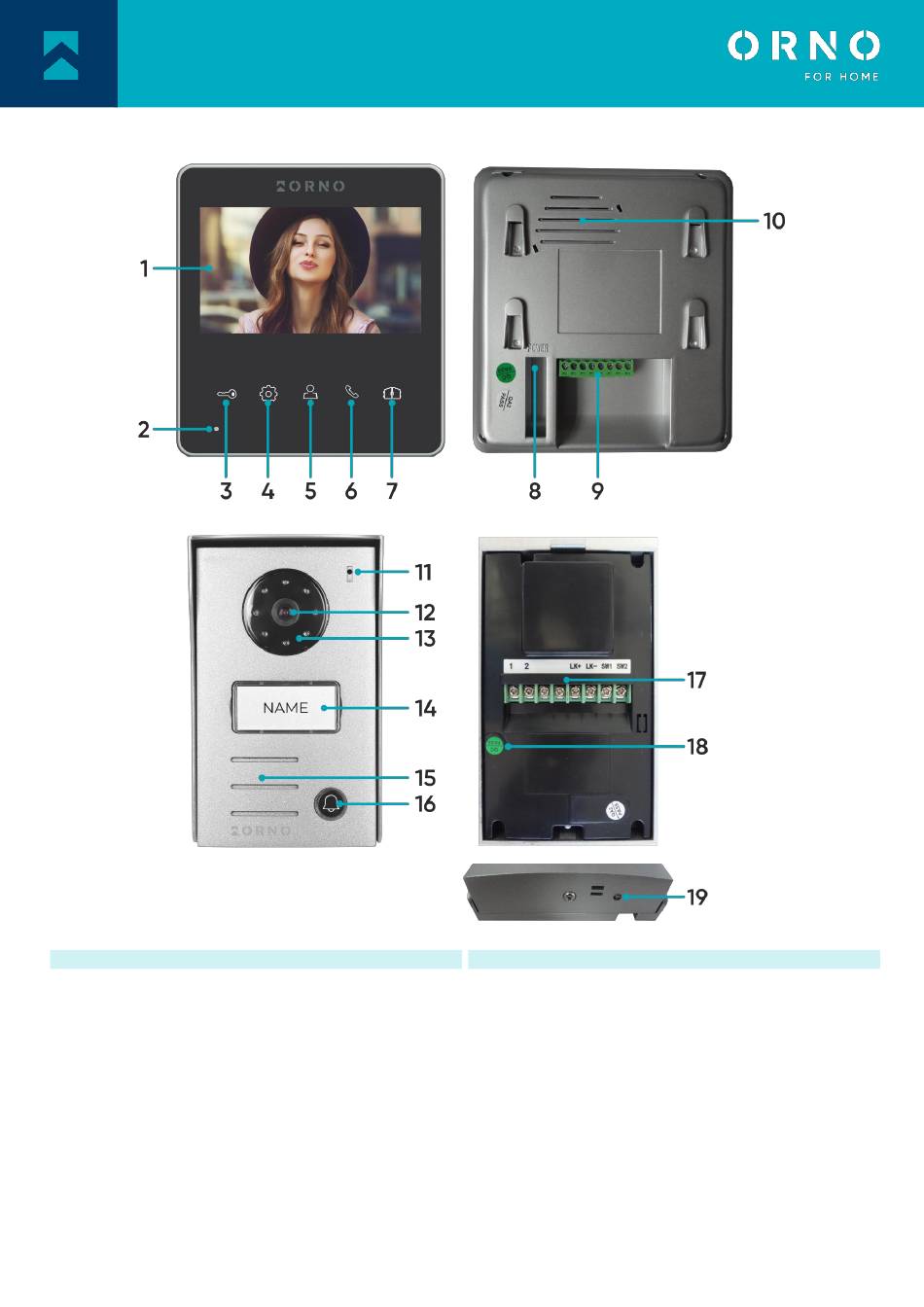

fig. 1 Construction of the monitor and the outdoor unit
MONITOR
1. Screen
2. Microphone
3. Door/wicket opening
4. Settings
5. End call/monitor/navigation button -
6. Answer the call/navigation button +
7. Gate control
8. Power socket
9. Terminals and connections
10. Loudspeaker
4
OUTDOOR UNIT
11. Microphone
12. Camera lens
13. Night-time lighting
14. Nameplate/RFID reader field
15. Loudspeaker
16. Call button
17. Terminals and connections
18. Reset button for proximity cards and tags
19. Twilight sensor
