5. INSTALLATION
MONITOR INSTALLATION

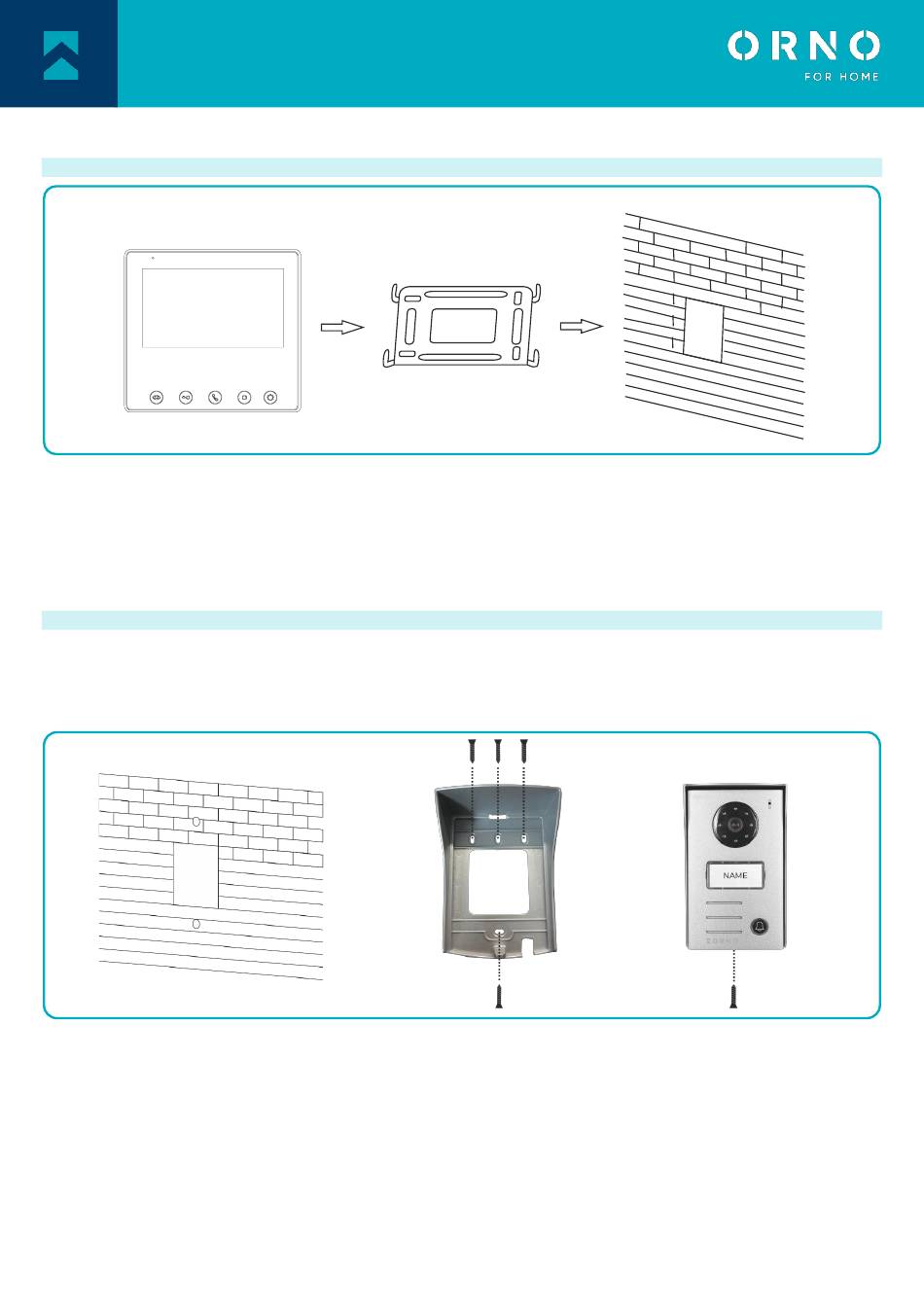

fig. 2 Monitor installation
1. Specify the mounting position of the monitor: suggested height 1.5~1.6 meters;
2. Remove the mounting frame from the back of the monitor.
3. Mount the frame on the wall.
4. Connect the wiring according to the wiring diagram.
5. Attach the monitor to the mounting bracket.
6. After installing the outdoor unit, connect the power supply.
OUTDOOR UNIT WITH CAMERA INSTALLATION
Recommended installation height of the outdoor unit is 140-170cm.
The correct location of the outdoor unit determines the comfort of working with the device. It is recommended to test
the device before making mounting holes. Do not place the outdoor unit and monitor in the same room as feedback
may occur.
fig. 3 Outdoor unit with camera installation
1. Make holes at the appropriate height on the wall or post.
2. Remove the rainshield from the outdoor unit.
3. Screw the rainshield in the desired location.
4. Connect the wiring.
5. Fix the outdoor unit in the rainshield and screw it to the frame with a screw at the bottom.
5
