The video doorphone cables should not be routed in one cable with the cables of other installations such as bell, alarm,
etc. Any power and telecommunication cables emitting strong magnetic fields (e.g. loudspeaker columns, TV set) in direct
contact with the cables connecting the outdoor unit to the monitor may adversely affect the operation of the set.
If the user has other connection cables than the recommended ones, it is allowed to use them, however, it is necessary
to make a test connection of the set in order to check its correct functioning.
When designing the electrical installation, take into account the appropriate cable cross-section:
up to 30m - recommended cable XzTKMXpw 3 x 2 x 0,5mm
from 30m to 100m - recommended cable XzTKMXpw 3 x 2 x 0,8mm
2
The connection to the electromagnetic lock should be made with 2 x 1mm
cable.
The set is compatible with any electric door strike with 12V DC supply voltage and current consumption of max. 500 mA.
The total length of the installation must not exceed 100 metres.
We absolutely do not recommend the use of twisted-pair cables.
7. SET OPERATION
CALL
1. When the visitor presses the call button on the outdoor unit, the monitor will emit a ring tone (for 10 seconds) and the
display will show the image from the outdoor camera.
2. If there is no response, the connection will be automatically disconnected after 60 seconds.
Answer
End call
3. To answer the call, press the
button on monitor, to disconnect press the
button.
4. To put the monitor into standby mode, press the
End call
button. The screen will turn off and the monitor will go into
standby mode. The monitor automatically goes into standby mode 100 seconds after the last activity.
MONITORING
Monitor
To turn on the view from the outdoor camera press the
button. During the monitoring function, only external
Answer
(outdoor) audio is transmitted. To enable two-way communication, press the
button on the monitor. To end
End call
the preview, press the
button. The monitor automatically goes into standby mode 60 seconds after the last
activity.
GATE/WICKET CONTROL
1. To open the door/wicket, press the
Open
button on the monitor. The electric strike will be released for 5 seconds.
Gate
2. To open the gate, press the
button on the monitor.

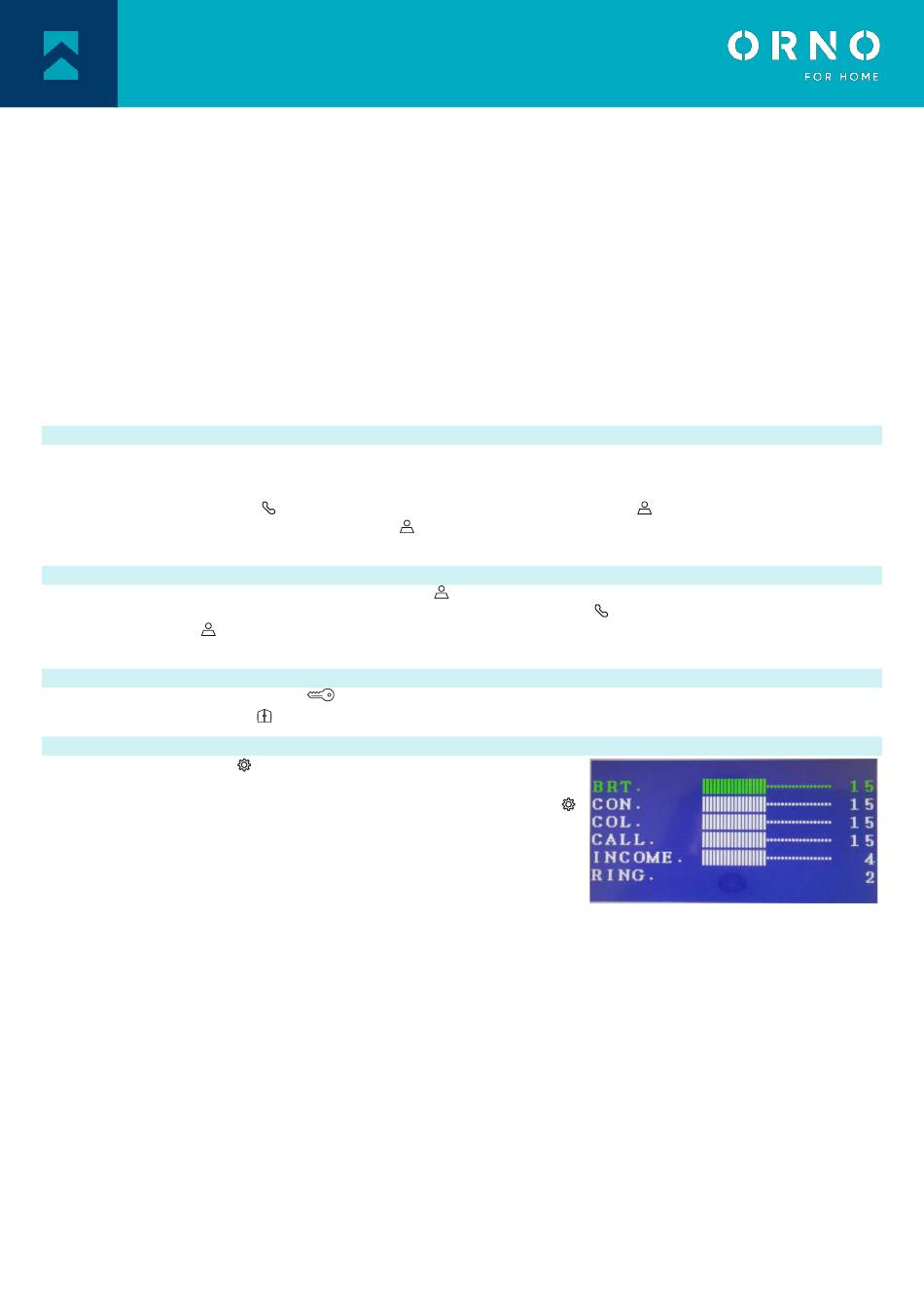

SETTINGS
In standby mode, press the
Settings
button. Using the navigation buttons
< and > you can set the following parameters: brightness, contrast, colour
intensity, call volume and ring tone (to set a specific parameter press the
Settings
button again and set the desired value using the navigation
buttons < and >.
8
