Endress+Hauser promag 31 Ex-Dokumentation Zu Den Betriebsanleitungen Seite 14

en
Sensor F
(DN 15...300)
Sensor F
(DN 350...1200)
Transmitter electronics Promag 31 in:
II(2)G [EEx ib] IIC/IIB
DMT 99 ATEX E 041 X
II3G EEx nVW IIC/IIB T5 X (prEN)
Ex nAC IIC/IIB T5 X (IEC)
PRO-LINE standard housing IP 67
Sensor in:
II2G EEx e [ib] IIC T4/T5/T6
DMT 99 ATEX E 048 X
• Promag F DN 15...300
(With the IP 68 version a maximum submersion
depth of 3 m is permitted, the sensors are labelled
accordingly)
• Promag F DN 350...1200
2
Hazardous area
II2G (ATEX)
Zone 1 (CENELEC)
Hazardous area
II3G (ATEX)
PROMAG 31
(model '99)
PROMAG 31
(model '99)
Zone 2 (CENELEC)

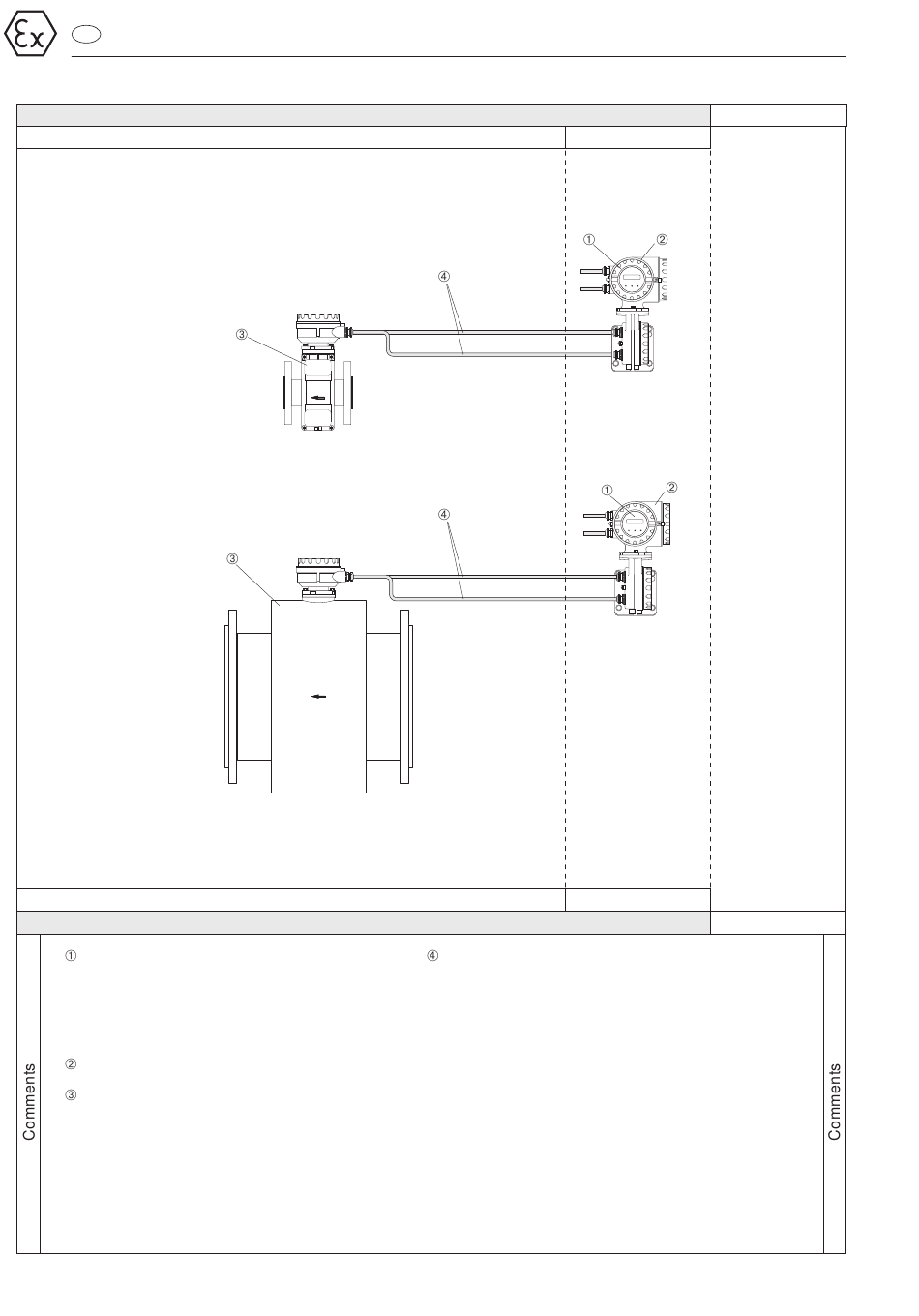

Maximum cable length between sensor and transmitter
200 m for explosion group IIB.
Maximum cable length between sensor and transmitter 120 m
for explosion group IIC.
Promag 31 (model '99)
Safe area
Safe area
