A-Tronix 20
EN
Congratulations on your purchase of digital angle ruler A-Tronix 20 CONDTROL. Safety
instructions in this user manual should be carefully read before you use the device for
the first time.
SAFETY REGULATIONS
Attention! The user manual should be read carefully before you use the device for the
first time. If the device is given to somebody for temporary use, be sure to enclose user
manual to it.
- Do not let unauthorized people enter the zone of product operation.
- Store the product beyond reach of children and unauthorized people.
- It is prohibited to disassemble or repair the product yourself. Entrust product repair to
qualified personnel and use original spare parts only.
- Make sure to use the correct type of battery.
- Make sure to observe the battery polarity.
- Remove the battery from the device, if you do not use it for a long time.
PRODUCT DESCRIPTION
Digital angle ruler A-Tronix 20 CONDTROL is designed for measuring angles.
Measurements taken with the built-in electronic angle sensor are shown on the display.
Zero function enables to set zero point at any angle.
This digital angle ruler is suitable for measuring angles and distance. The device is widely
used in construction and finishing works. used in construction and finishing works.

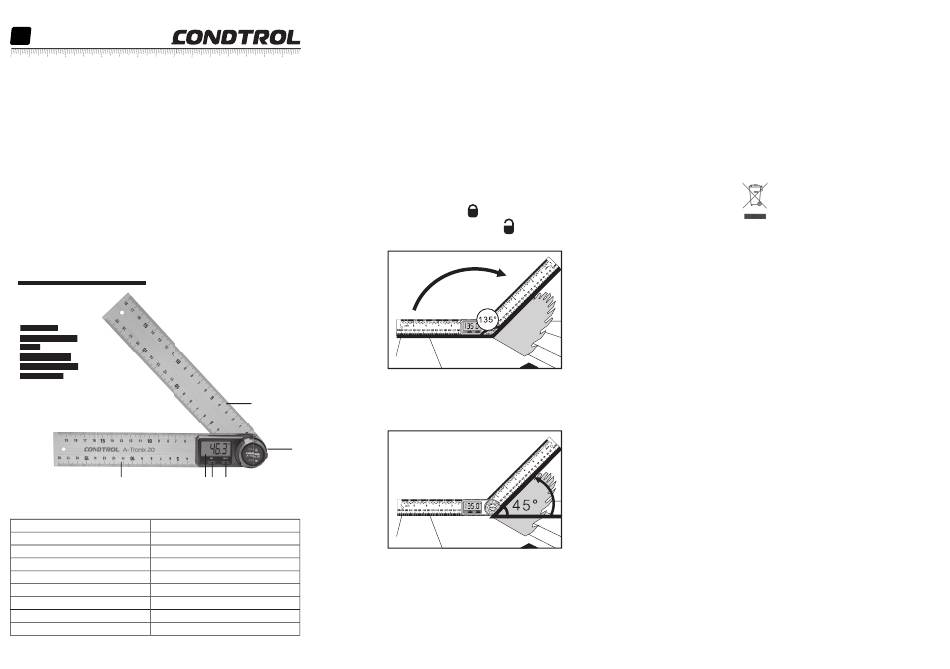

1. Base arm 1. Base arm
2. Measuring arm 2. Measuring arm
3. LCD 3. LCD
4. Locking knob 4. Locking knob
5. ON/OFF button 5. ON/OFF button
6. Zero mode 6. Zero mode
1
TECHNICAL SPECIFICATIONS
Measuring range 0°-360°
Accuracy 0,3°
Smallest unit displayed 0,1°
Operating temperature 0°C ... +50°C
Storage temperature -10°C ... +70°C
Relative humidity 85%
Battery 3V CR2032 lithium battery
Dimensions 200*35*21 mm
Weight 160 g
DIGITAL ANGLE RULER
DELIVERY PACKAGE
Digital angle ruler A-Tronix 20 – 1 pc.
Battery (3V CR2032) – 1 pc.
User manual – 1 pc.
User manual BEFORE START OPERATION
Power supply
The device is powered by 3V CR2032 lithium battery included in the delivery package.
Install/replace the battery
Press the button in the bottom part of LCD to open the battery compartment. Install
the power supply, observing correct polarity. Install the battery compartment back until
it stops.
OPERATION
Press ON/OFF button to switch on/off the device.
INTERIOR ANGLE MEASUREMENT
Press ZERO button to set zero point. Put the measuring arm and the base arm to the
surface. The interior angle between measuring and base arms is shown on the LCD.
Rotate the locking knob clockwise to
position. Rotate the locking knob anti-clockwise to
arm.
EXTERIOR ANGLE MEASUREMENT
Unfold the angle ruler on a flat surface. Press ZERO button to set zero point. Move the
2
measuring arm to the required position to measure the exterior angle between the
measuring arm and a surface.
4
3 6 5
ZERO MODE
Press ZERO button in any position of digital angle ruler to set zero point the angle is
measured from.
CARE AND MAINTENANCE
Attention! This tool is a precise device and requires careful handling. Observation of the
following recommendations will extend the life of the device:
- Protect the device from bumps, falls, and excessive vibration; do not let moisture,
construction dust and foreign objects get inside the device.
- Store the device, spare parts and accessories away from children and unauthorized
people.
- In case moisture gets inside the device, remove the power supply.
- Do not store or use the device for a long time in high humidity conditions.
- Avoid direct sunlight on the device, as well as prolonged exposure to the sun and high
temperatures.
- Clean the device with a soft wet cloth. Do not use harsh chemicals, cleaning solvents
or cleaning agents.
UTILIZATION
Expired tools, accessories and package should be passed for waste recycle. Please send
the product to the following address for proper recycle:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
position to fix the arm in the adjusted
Germany
position loosen the measuring
Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired measuring tools and their
components must be collected separately and submitted to environmentally friendly
recycle of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production control and are governed
by the following warranty terms. The buyer's right to claim about defects and general
provisions of the current legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects in the product, discovered while
warranty period, that represent the defect in material or workmanship in full volume
and at its own expense.
2) The warranty period is 24 months and starts from the date of purchase by end
customer (see the original supporting document).
3) The warranty doesn't cover defects resulting from wear and tear or improper use,
malfunction of the product caused by failure to observe the instructions of this user
manual, untimely maintenance and service and insufficient care, the use of non-original
accessories and spare parts. Modifications in design of the product relieve the seller
from responsibility for warranty works. The warranty does not cover cosmetic damage,
that doesn't hinder normal operation of the product.
4) CONDTROL GmbH reserves the right to decide on replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the warranty.
6) After holding warranty works by CONDTROL GmbH warranty period is not renewed
or extended.
7) CONDTROL GmbH is not liable for loss of profit or inconvenience associated with a
defect of the device, rental cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the United Nations Convention
on contracts for the international sale of goods (CISG).
In warranty case please return the product to retail seller or send it with description of
defect to the following address:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
Germany
