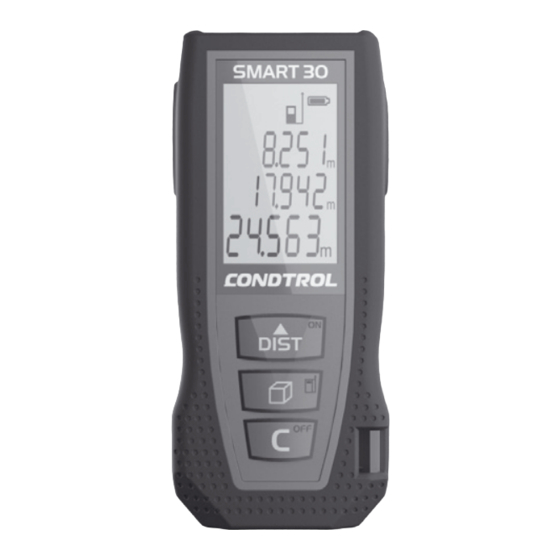

LASER DISTANCE METER
CONDTROL SMART 30
User manual
SWITCH ON/OFF
Switch on: press
The product will switch on and enter measuring mode.
Switch off: press and hold
during 3 seconds.
In order to save battery power the product will switch off
automatically within 2,5 minutes after the last operation.
CONDTROL SMART 30
LASER DISTANCE METER
User manual
2) Continuous distance measurement (Tracking)
Press and hold button
during 2 seconds. The
product will take measurements one after another, showing
the last measured value as well as maximal and minimal
measured values.
To exit the mode press button
or
3) Area
Press button
. Symbol
will appear on the
display. Press button
to measure the first side
(length).
Press button
again to measure the second side
(width).
Area (length and width multiplication) will be calculated and
appear on the display.
Press button
to exit area measuring mode.
LASER DISTANCE METER
CONDTROL SMART 30
User manual
SAFETY REGULATIONS
The user manual should be read carefully before you use the
product for the first time. Unintended use of the product can
be dangerous for human's health and cause serious injury.
Keep this user manual. If the product is given to somebody for
temporary use, be sure to enclose user manual to it.
- Do not misuse the product
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
product.
The device belongs to
laser product class 2 in
accordance with
EN 60825-1 with a 630-
670 nm wavelength.
- Do not look into the laser beam or its reflection, with
unprotected eye or through an optical instrument. Do not
point the laser beam at people or animals without the need.
You can dazzle them.
- To protect your eyes close them or look aside.
- It is prohibited to disassemble or repair the product yourself.
Intrust product repair to qualified personnel and use original
spare parts only.
- Do not use the product in explosive environment, close to
flammable materials.
CONDTROL SMART 30
LASER DISTANCE METER
Congratulations on your purchase of laser distance meter
CONDTROL SMART 30.
Safety instructions can be found in the end of this user manual
and should be carefully read before you use the product for
the first time.
FUNCTIONS/APPLICATIONS
Laser distance meter SMART 30 is intended to measure
distance, length, height and calculate area and volume of
measured objects. The product is suitable for use at both
indoor and outdoor building areas.
SET
1. Laser distance meter – 1 pc.
2. Carry pouch with a strap – 1 pc.
3. User manual – 1 pc.
4. Batteries LR3 (AAA) – 2 pcs.
SPECIFICATIONS
Working range
0,05...30 m*
Smallest unit displayed
1 mm
Measuring accuracy
±3 mm**
class II,
Laser type
635 nm, < 1 mW
LASER DISTANCE METER
CONDTROL SMART 30
PRODUCT
DESCRIPTION
Functions of buttons
Short press
Button
Switch on the product/switch on
1
laser beam/measurement
2
Calculation of area/volume*
3
Clear
* Double press
CONDTROL SMART 30
LASER DISTANCE METER
4) Volume
Press button
twice. Symbol
on the display. Press button
side (length). Press button
second side (width). Result of area calculation will appear in
.
the main display line. Press button
third side (height).
Volume (length, width and height multiplication) will be
calculated and appear on the display.
Press
to exit volume measuring mode.
LASER DISTANCE METER
CONDTROL SMART 30
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash
it immediately with soap and water. In case of contact with
eyes, flush with clean water during 10 minutes and consult the
doctor.
CARE AND MAINTENANCE
Attention! The instrument is a precision device and requires
careful handling. The following recommendations will extend
the life of the product:
- Do not point the product at the sun
- Protect the product from bumps, falls and excessive vibration;
do not let liquids, construction dust and foreign objects get
inside the product.
- Do not expose the product to extreme temperatures.
- If liquids get inside the product first remove batteries, then
contact a service center.
- Do not store or use the product under high humidity
conditions for a long time.
- Clean the product with soft wet cloth.
- Keep device optics clean and protect it from mechanical
damage.
- Сarry out control measurements occasionally, especially if
the product is subject to excessive mechanical or other impact,
before and after making important measurements.
LASER DISTANCE METER
User manual
Continuous distance measuring
(Tracking)
Area/volume
Sound indication
Automatic shutdown
Battery life
Storage temperature
Working temperature
Storage humidity
Battery
Dimensions
Weight
* Use a target plate to increase the measurement range during
daylight or if the target has poor reflection properties.
** Accuracy can decrease in unfavorable conditions, such as
intense sunshine or when measurements are made against
glossy or transparent surfaces, moving objects, objects with
rough surface.
LASER DISTANCE METER
User manual
Display
6
Display
Keyboard
7
1
2
3
Bubble level
1. Secondary display lines
2. Main display line
Long press
3. Battery charge level
Continuous measuring
4. Reference point
(tracking)
5. Laser beam indicator
Choose reference point
6. Indicator of area/volume calculation
7. Indicator of min/max value
Switch off
8. Measuring unit
9. Area and volume measuring unit
LASER DISTANCE METER
User manual
MESSAGE CODES
While operation, the following codes/symbols may appear on
will appear
the display:
to measure the first
Message
Cause
again to measure the
Received signal is
Err1
too weak
to measure the
Received signal is too
Err2
strong
Err3
Low battery voltage
The working
Err4
temperature is out of
working range
Err5
Record damaged
LASER DISTANCE METER
User manual
UTILIZATION
Expired tools, accessories and package should be passed
for waste recycle. Please send the product to the following
address for proper recycle:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired
measuring tools and their components must be collected
separately and submitted to environmentally friendly recycle
of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production
control and are governed by the following terms of warranty.
The buyer's right to claim about defects and general provisions
of the current legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects of
the product, discovered during the warranty period, that
represent defect in material or workmanship in full volume
and at its own expense.
2) The warranty period is 24 months and starts from the date
of purchase by end consumer (see the original supporting
document).
CONDTROL SMART 30
LASER DISTANCE METER
User manual
In unfavourable conditions or when measured distance is over
+
100 m the maximum permissible accuracy is calculated in the
following way:
+
D (mm) - measured distance
+
Y (mm) - permissible accuracy according to technical data.
2,5 min
Up to 6000 measurements
INSERT/REPLACE BATTERIES
-20...+60 °С
Remove the battery cover. Insert the batteries, observing
0...+40 °С
correct polarity. Put the battery cover back. Remove the
batteries when the product is not used for a long time to avoid
<85%
corrosion and battery depletion. Both batteries should be
replaced at the same time.
2 х 1.5V AAA LR3 (alkaline)
Both batteries must be
105х47х27 mm
of the same brand with
83 g
the same charge level.
Replace batteries when
symbol
flashing on the display.
Prepare
batteries when
symbol
is illuminated
on the display. You can
produce
around
measurements after this
symbol appeared.
CONDTROL SMART 30
LASER DISTANCE METER
User manual
OPERATION
5
Display backlight
3
When the product is on, backlight switches on automatically
when you press any button. The backlight will shut off
4
automatically without any operation after 15 seconds.
Reference point setting
It is possible to set the reference point - from the top or bottom
1
end of the product.
The default reference point is the bottom end of the product.
Press and hold button
the reference point.
2
Measurements
9
8
1) Single distance measurement
Turn on the product. Press button
laser beam. Point the laser beam at the target and press button
again for single distance measurement. To perform
next single distance measurement press button
To delete measuring results press button
CONDTROL SMART 30
LASER DISTANCE METER
User manual
MEASURING CONDITIONS
Measuring range
The range is limited to 30 m.
At night or dusk and if the target is in shadow the measuring
range without target plate may increase. Use a target plate
Solution
to increase the measurement range during daylight or if the
Choose
the
surface
with
target has poor reflection properties
stronger reflectance. Use the
reflecting plate.
Target surfaces
Choose
the
surface
with
Measuring errors can occur when measuring toward colorless
weaker reflectance. Use the
reflecting plate.
liquids (e.g. water) or dust free glass, styrofoam or similar
semi-transparent and high gloss surfaces. Measuring time may
increase if measurements are taken against non-reflective and
Change the power supply.
dark surfaces.
Use the device in the specified
temperature.
Contact the distributor.
CONDTROL SMART 30
LASER DISTANCE METER
User manual
3) The Warranty doesn't cover defects resulting from wear
and tear or improper use, malfunction of the product caused
by failure to observe the instructions of this user manual,
untimely maintenance and service and insufficient care, the
use of non-original accessories and spare parts. Modifications
in design of the product relieve the seller from responsibility
for warranty works. The warranty doesn't cover cosmetic
damage, that doesn't hinder normal operation of the product.
4) CONDTROL GmbH reserves the right to decide on
replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the
warranty.
6) After warranty works are carried out by CONDTROL GmbH
warranty period is not renewed or extended.
7) CONDTROL GmbH is not liable for loss of profit or
inconvenience associated with a defect of the device, the
rental cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the
United Nations Convention on contracts for the international
sale of goods (CISG).
In warranty case please return the product to retail seller or
send it with defect description to the following address:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
CONDTROL SMART 30
User manual
± (Y + 0,25хDх10-3) mm, where
is constantly
replaceable
100
CONDTROL SMART 30
User manual
during 3 seconds to change
to switch on the
.
.
CONDTROL SMART 30
User manual
CONDTROL SMART 30
User manual

Werbung

loading

Inhaltszusammenfassung für CONDTROL SMART 30

  • Seite 1 7) CONDTROL GmbH is not liable for loss of profit or EN 60825-1 with a 630- - Do not expose the product to extreme temperatures. inconvenience associated with a defect of the device, the 670 nm wavelength.
  • Seite 2 Automatisches Abschalten 2,5 Min. 100 m betraegt die zulaessige Abweichung: BESTIMMUNGSGEMAESSER GEBRAUCH ± (Y + 0,25хDх10-3)mm: Der SMART 30 ist zum Messen von Distanzen, Laengen und Tonsignal Hoehen sowie Berechnung von Flaechen und Volumina D (mm) - zu messende Entfernung Batteriestandzeit Bis 6.000 Messungen...
