CONDTROL X1 Lite
LASER DISTANCE METER
User manual
SWITCH ON/OFF
Switch on: press
The product will switch on and enter measuring mode.
Switch off: press and hold during 3 seconds.
In order to save battery power the product will switch off
automatically within 2,5 minutes after the last operation.
CONDTROL X1 Lite
LASER DISTANCE METER
User manual
2) Continuous distance measurement (Tracking)
Press and hold during 2 seconds. Symbol
will be blinking on the display. The product will take
measurements one after the other, showing the last measured
value. To exit the mode press or
3) Area
Press . Symbol will appear on display.
Press to measure the first side (length).
Press again to measure the second side (width).
Calculation result (length and width multiplication) will be
shown on the display.
Press to exit area measuring mode.
CONDTROL X1 Lite
LASER DISTANCE METER
User manual
SAFETY REGULATIONS
The user manual should be read carefully before you use the
product for the first time. Unintended use of the product can
be dangerous for human's health and cause serious injury.
Keep this user manual. If the product is given to somebody for
temporary use, be sure to enclose user manual to it.
- Do not misuse the product
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
product.
The device belongs to
laser product class 2 in
accordance with
EN 60825-1 with a 630-
670 nm wavelength.
- Do not look into the laser beam or its reflection, with
unprotected eye or through an optical instrument. Do not
point the laser beam at people or animals without the need.
You can dazzle them.
- To protect your eyes close them or look aside.
- It is prohibited to disassemble or repair the product yourself.
Intrust product repair to qualified personnel and use original
spare parts only.
- Do not use the product in explosive environment, close to
flammable materials.

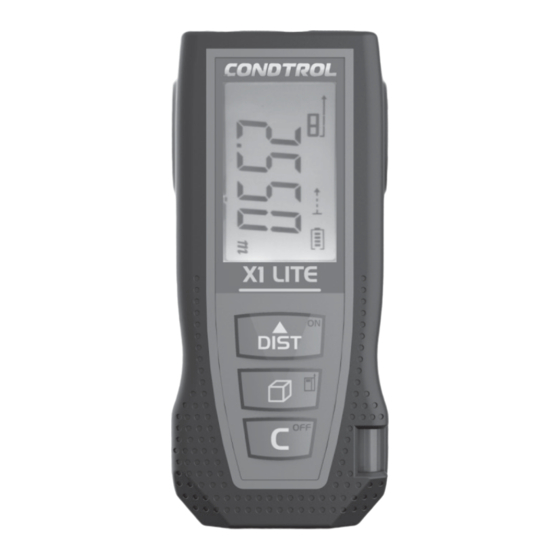

LASER DISTANCE METER CONDTROL X1 Lite
Congratulations on your purchase of laser distance meter
CONDTROL X1 Lite.
Safety instructions can be found in the end of this user manual
and should be carefully read before you use the product for
the first time.
FUNCTIONS/APPLICATIONS
Laser distance meter X1 Lite is intended to measure distance,
length, height and calculate area and volume of measured
objects. The product is suitable for use at both indoor and
outdoor building areas.
SET
1. Laser distance meter – 1 pc.
2. Carry pouch with a strap – 1 pc.
3. User manual – 1 pc.
4. Batteries LR3 (AAA) – 2 pcs.
CONDTROL X1 Lite
LASER DISTANCE METER
PRODUCT
DESCRIPTION
Functions of buttons
№
Short press Long press
Button
Switch on the product/switch on Continuous measuring
1
laser beam/measurement (tracking)
2 Calculation of area/volume* Choose reference point
3 Clear Switch off
* Double press
CONDTROL X1 Lite
LASER DISTANCE METER
4) Volume
Press twice. Symbol will appear on display.
Press to measure the first side (length).
Press to measure the second side (width).
.
Press again to measure the third side (height).
Calculation result (length, width and height multiplication) will
be shown on the display.
Press to exit volume measuring mode.
CONDTROL X1 Lite
LASER DISTANCE METER
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash
it immediately with soap and water. In case of contact with
eyes, flush with clean water during 10 minutes and consult the
doctor.
CARE AND MAINTENANCE
Attention! The instrument is a precision device and requires
careful handling. The following recommendations will extend
the life of the product:
- Do not point the product at the sun
- Protect the product from bumps, falls, excessive vibration;
do not let liquids, construction dust and foreign objects get
inside the product.
- Do not expose the product to extreme temperatures.
- If liquids get inside the product first remove the batteries,
then contact a service center.
- Do not store or use the product under high humidity
conditions for a long time.
- Clean the product with soft wet cloth.
- Keep device optics clean and protect it from mechanical
damage.
- Сarry out control measurements occasionally, especially
if the product is subject to excessive mechanical or other
impact, before and after taking important measurements.
LASER DISTANCE METER CONDTROL X1 Lite
User manual
SPECIFICATIONS
Working range
Smallest unit displayed
Measuring accuracy
Laser type
Continuous distance measuring
(Tracking)
Area/volume
Automatic shutdown
Sound
Battery life
Storage temperature
Working temperature
Storage humidity
Battery
Dimensions
Weight
CONDTROL X1 Lite
LASER DISTANCE METER
User manual
Display
Display
8
Keypad
1
2
3
7
1. Laser indicator
2. Reference point
3. Area/volume measuring mode
4. Continuous distance measurement mode (Tracking)
5. Battery charge level
6. Area/volume unit
7. Unit
8. Display line
CONDTROL X1 Lite
LASER DISTANCE METER
User manual
MESSAGE CODES
While operation, the following codes/symbols may appear on
the display:
Message Cause Solution
Choose
Received signal is
Err1 stronger reflectance. Use the
too weak
reflecting plate.
Choose
Received signal is too
Err2 weaker reflectance. Use the
strong
reflecting plate.
Err3 Low battery voltage Change the power supply.
The working
Use the device in the specified
Err4 temperature is out of
temperature.
working range
Err5 Record damaged Contact the distributor.
CONDTROL X1 Lite
LASER DISTANCE METER
User manual
UTILIZATION
Expired tools, accessories and package should be passed
for waste recycle. Please send the product to the following
address for proper recycle:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired
measuring tools and their components must be collected
separately and submitted to environmentally friendly recycle
of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production
control and are governed by the following warranty terms. The
buyer's right to claim about defects and general provisions of
the current legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects in the
product, discovered during the warranty period, that represent
the defect in material or workmanship in full volume and at its
own expense.
2) The warranty period is 12 months and starts from the date
of purchase by the end consumer (see the original supporting
document).
LASER DISTANCE METER
User manual
* Use a target plate to increase the measurement range during
daylight or if the target has poor reflection properties
0,05...30 m*
** In favorable conditions (good target surface properties,
1 mm
room temperature) up to 10 m. In unfavorable conditions,
such as intense sunshine, poorly reflecting target surface or
±2 mm**
considerable temperature variations, accuracy can decrease
class II,
by ± 0.35 mm/m.
635 nm, < 1 mW
INSERT/REPLACE BATTERIES
+
Remove the battery cover. Insert the batteries, observing
+ correct polarity. Put the battery cover back. Remove the
batteries when the product is not used for a long time to avoid
2,5 min
corrosion and battery depletion. Both batteries should be
replaced at the same time.
+
Both batteries must be
Up to 6000 times
of the same brand with
-20...+60 °С
the same charge level.
Replace batteries when
0...+40 °С
symbol is constantly
RH85%
flashing on the display.
Prepare replaceable
2 х 1.5V AAA LR3
batteries when
(alkaline)
symbol is illuminated
105х47х27 mm on the display. You can
produce around
83 g
measurements after this
symbol appeared.
LASER DISTANCE METER
User manual
OPERATION
1
Reference point setting
It is possible to set the reference point - from the top or bottom
end of the product.
2
The default reference point is the bottom end of the product.
Press and hold
reference point.
3 Display backlight
When the product is on, backlight switches on automatically
when you press any button. The backlight will shut off
4
automatically without any operation after 15 seconds.
Measurements
5
1) Single distance measurement
6
Press to switch on the laser beam. Point the laser
beam at the target and press
distance measurement. The result of measurement will be
shown on the display.
To delete measuring results press
LASER DISTANCE METER
User manual
MEASURING CONDITIONS
Measuring range
The range is limited to 30 m.
At night or dusk and if the target is in shadow the measuring
range without target plate may increase. Use a target plate
to increase the measurement range during daylight or if the
the surface with
target has poor reflection properties
Target surfaces
the surface with
Measuring errors can occur when measuring toward colorless
liquids (e.g. water) or dust free glass, styrofoam or similar
semi-transparent and high gloss surfaces. Measuring time may
increase if measurements are taken against non-reflective and
dark surfaces.
LASER DISTANCE METER
User manual
3) The Warranty does cover defects resulting from wear and
tear or improper use, malfunction of the product caused
by failure to observe the instructions of this user manual,
untimely maintenance and service and insufficient care, the
use of non-original accessories and spare parts. Modifications
in design of the product relieves the seller from responsibility
for warranty works. The warranty does not cover cosmetic
damage, that doesn't hinder normal operation of the product.
4) CONDTROL GmbH reserves the right to decide on
replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the
warranty.
6) After holding warranty works by CONDTROl GmbH warranty
period is not renewed or extended.
7) CONDTROL GmbH is not liable for loss of profit or
inconvenience associated with a defect of the device, the
rental cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the
United Nations Convention on contracts for the international
sale of goods (CISG).
In warranty case please return the product to retail seller or
send it with defect description to the following address:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
