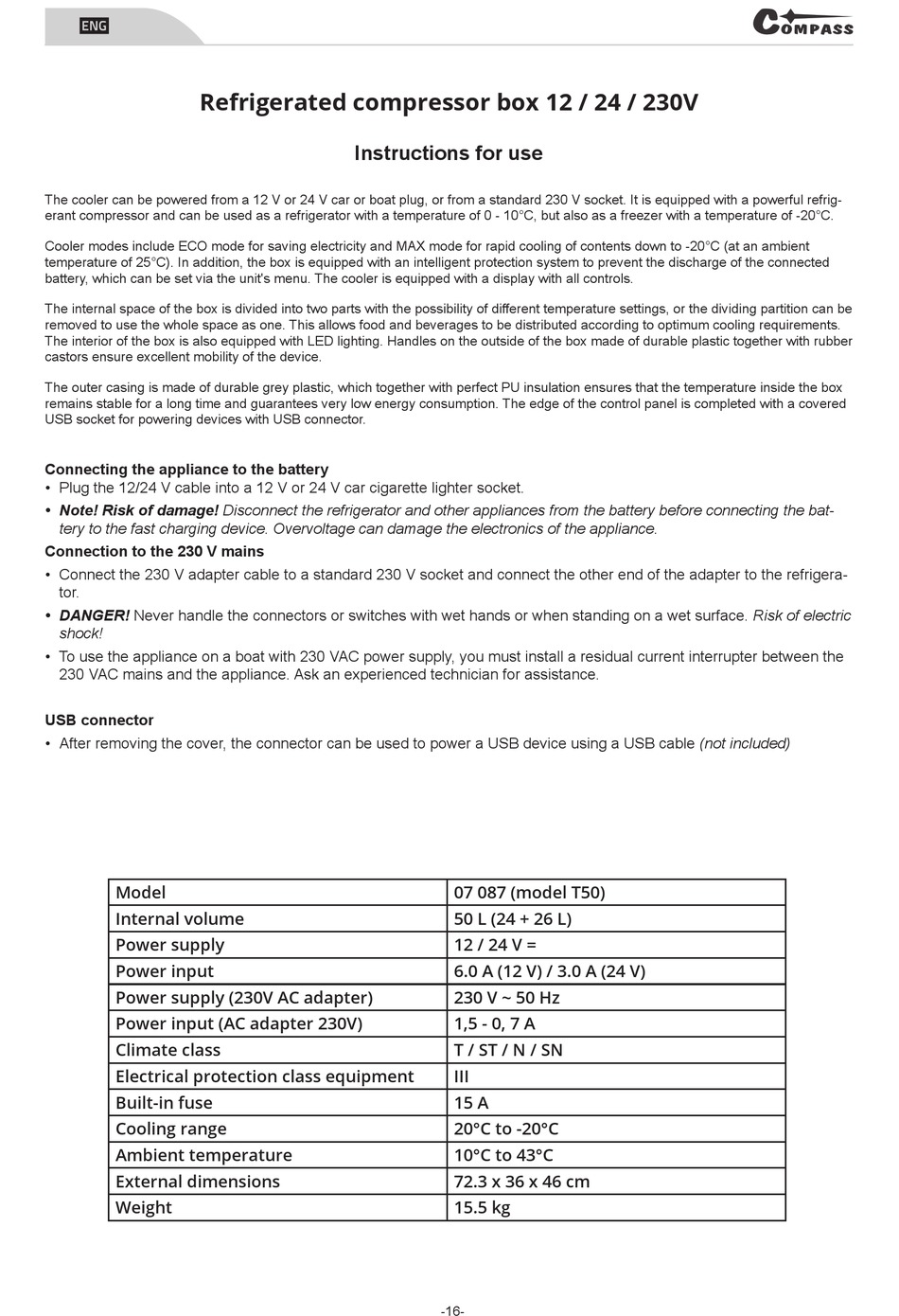

Refrigerated compressor box 12 / 24 / 230V
The cooler can be powered from a 12 V or 24 V car or boat plug, or from a standard 230 V socket. It is equipped with a powerful refrig-
erant compressor and can be used as a refrigerator with a temperature of 0 - 10°C, but also as a freezer with a temperature of -20°C.
Cooler modes include ECO mode for saving electricity and MAX mode for rapid cooling of contents down to -20°C (at an ambient
temperature of 25°C). In addition, the box is equipped with an intelligent protection system to prevent the discharge of the connected
battery, which can be set via the unit's menu. The cooler is equipped with a display with all controls.
The internal space of the box is divided into two parts with the possibility of different temperature settings, or the dividing partition can be
removed to use the whole space as one. This allows food and beverages to be distributed according to optimum cooling requirements.
The interior of the box is also equipped with LED lighting. Handles on the outside of the box made of durable plastic together with rubber
castors ensure excellent mobility of the device.
The outer casing is made of durable grey plastic, which together with perfect PU insulation ensures that the temperature inside the box
remains stable for a long time and guarantees very low energy consumption. The edge of the control panel is completed with a covered
USB socket for powering devices with USB connector.
Connecting the appliance to the battery
• Plug the 12/24 V cable into a 12 V or 24 V car cigarette lighter socket.
• Note! Risk of damage! Disconnect the refrigerator and other appliances from the battery before connecting the bat-
tery to the fast charging device. Overvoltage can damage the electronics of the appliance.
Connection to the 230 V mains
• Connect the 230 V adapter cable to a standard 230 V socket and connect the other end of the adapter to the refrigera-
tor.
• DANGER! Never handle the connectors or switches with wet hands or when standing on a wet surface. Risk of electric
shock!
• To use the appliance on a boat with 230 VAC power supply, you must install a residual current interrupter between the
230 VAC mains and the appliance. Ask an experienced technician for assistance.
USB connector
• After removing the cover, the connector can be used to power a USB device using a USB cable (not included)
Model
Internal volume
Power supply
Power input
Power supply (230V AC adapter)
Power input (AC adapter 230V)
Climate class
Electrical protection class equipment
Built-in fuse
Cooling range
Ambient temperature
External dimensions
Weight
Instructions for use
07 087 (model T50)
50 L (24 + 26 L)
12 / 24 V =
6.0 A (12 V) / 3.0 A (24 V)
230 V ~ 50 Hz
1,5 - 0, 7 A
T / ST / N / SN
III
15 A
20°C to -20°C
10°C to 43°C
72.3 x 36 x 46 cm
15.5 kg
-16-
