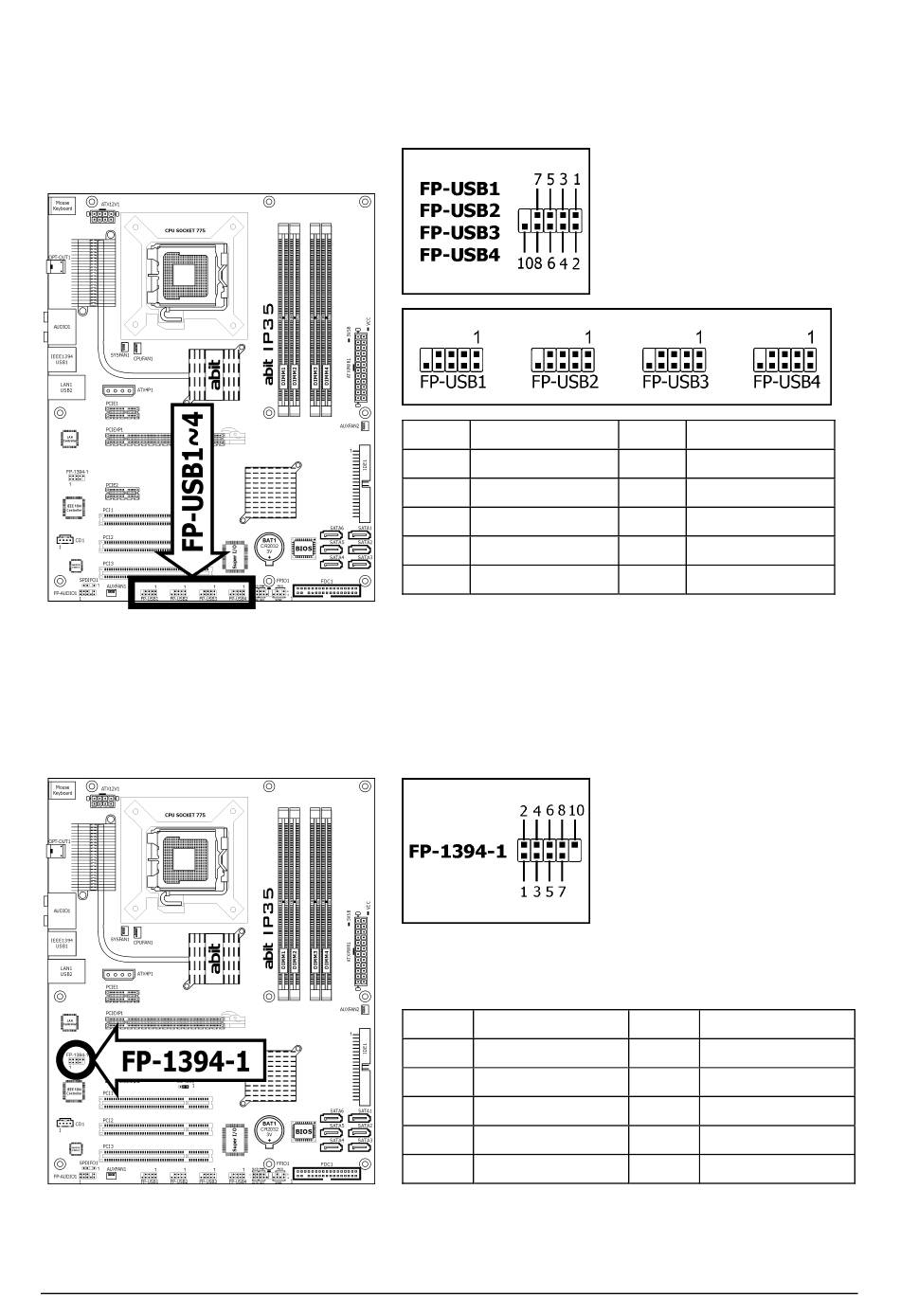

1.8.3 Additional USB 2.0 Port Headers
Each header supports 2x additional USB 2.0 ports by connecting bracket or cable to the rear I/O
panel or the front-mounted USB ports of your chassis.
Make sure the connecting cable bears the same pin assignment.
※
1.8.4 Additional IEEE 1394 Port Header
Each header supports 1x additional IEEE 1394 port by connecting bracket or cable to the rear
I/O panel or the front-mounted IEEE 1394 port of your chassis.
Make sure the connecting cable bears the same pin assignment.
※
1-14
Pin
Pin Assignment
1
5VDUAL
3
Data0 -
5
Data0 +
7
Ground
(For IP35 only)
Pin
Pin Assignment
1
TPA0 +
3
Ground
5
TPB0 +
7
+12V
Pin
Pin Assignment
2
5VDUAL
4
Data1 -
6
Data1 +
8
Ground
10
NC
Pin
Pin Assignment
2
TPA0 -
4
Ground
6
TPB0 -
8
+12V
10
Ground
IP35/IP35-E
