Clip Attachment & Detachment
Attach the Clips (5 steps)

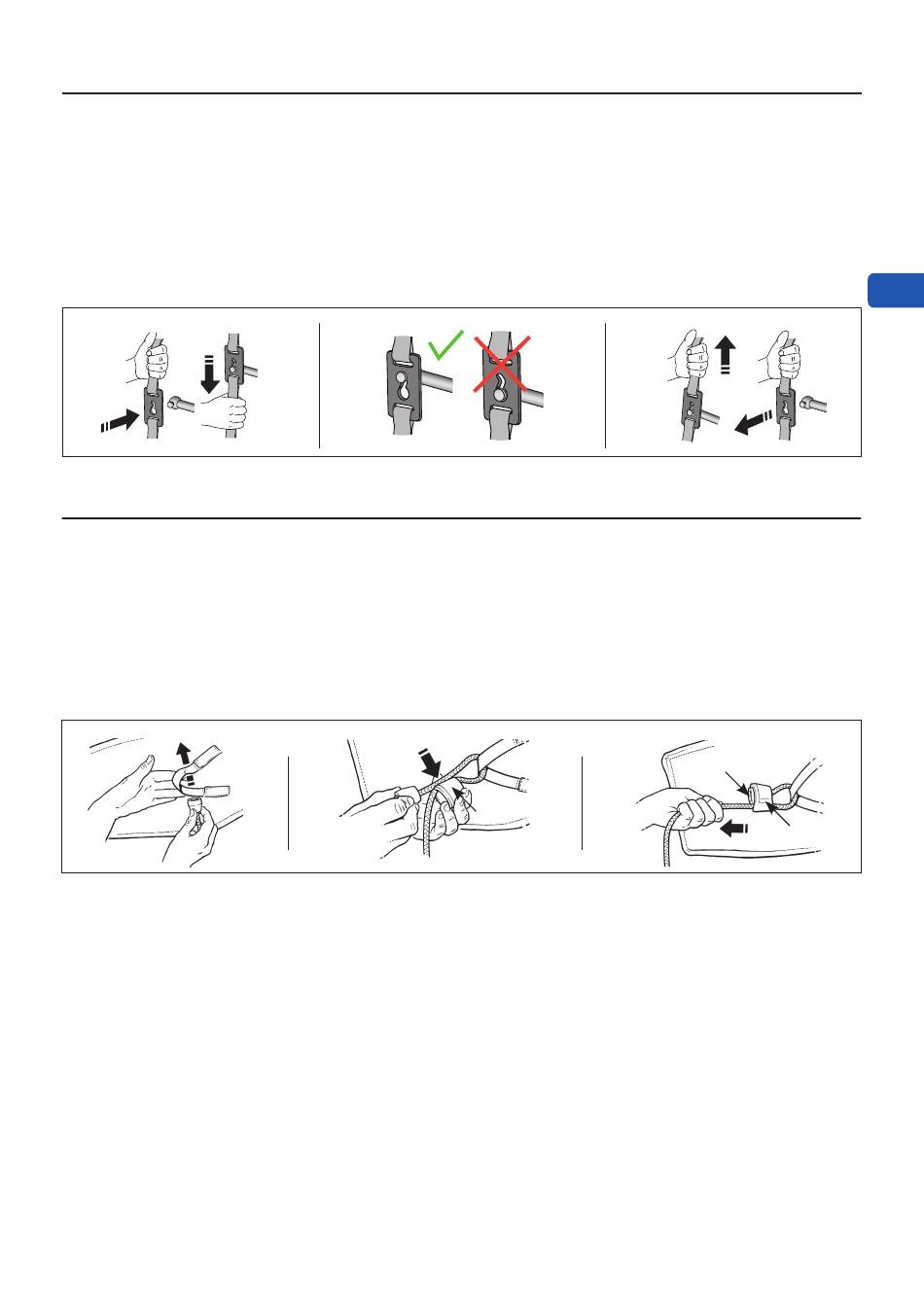

1. Place the clip on the spreader bar lug. (See Fig. 1 )
2. Pull the strap down.
3. Make sure the lug is locked at the top end of the
clip. (See Fig. 2 )
4. Make sure the strap is not squeezed in between the
clip and the spreader bar.
5. Make sure the straps are not twisted.
Fig. 1
Cord Attachment & Detachment
Attach the Cord (3 steps)
1. Pull the cord with the cone through the attachment
loop. (See Fig. 4 )
2. Fit the cord into the opening of the cup section (A).
(See Fig. 5 )
3. Makes sure to pull the other end of the cord so
that the cone (B) fits into the cup (A) tightly.
(See Fig. 6 )
Fig. 4
Detach the Clips (3 steps)
Make sure that the weight of the patient is taken up by
the receiving surface before removing the clip.
1. Pull the strap up. (See Fig. 3 )
2. Make sure the lug is unlocked at the bottom of the
clip.
3. Remove the clip.
Fig. 2
Detach the Cord (3 steps)
1. Release the tension in the cord by pushing it
towards the cup.
2. Remove the cup from the cone.
3. Pull out the cord from the attachment loop.
Fig. 5
A
9
Fig. 3
Fig. 6
B
A
