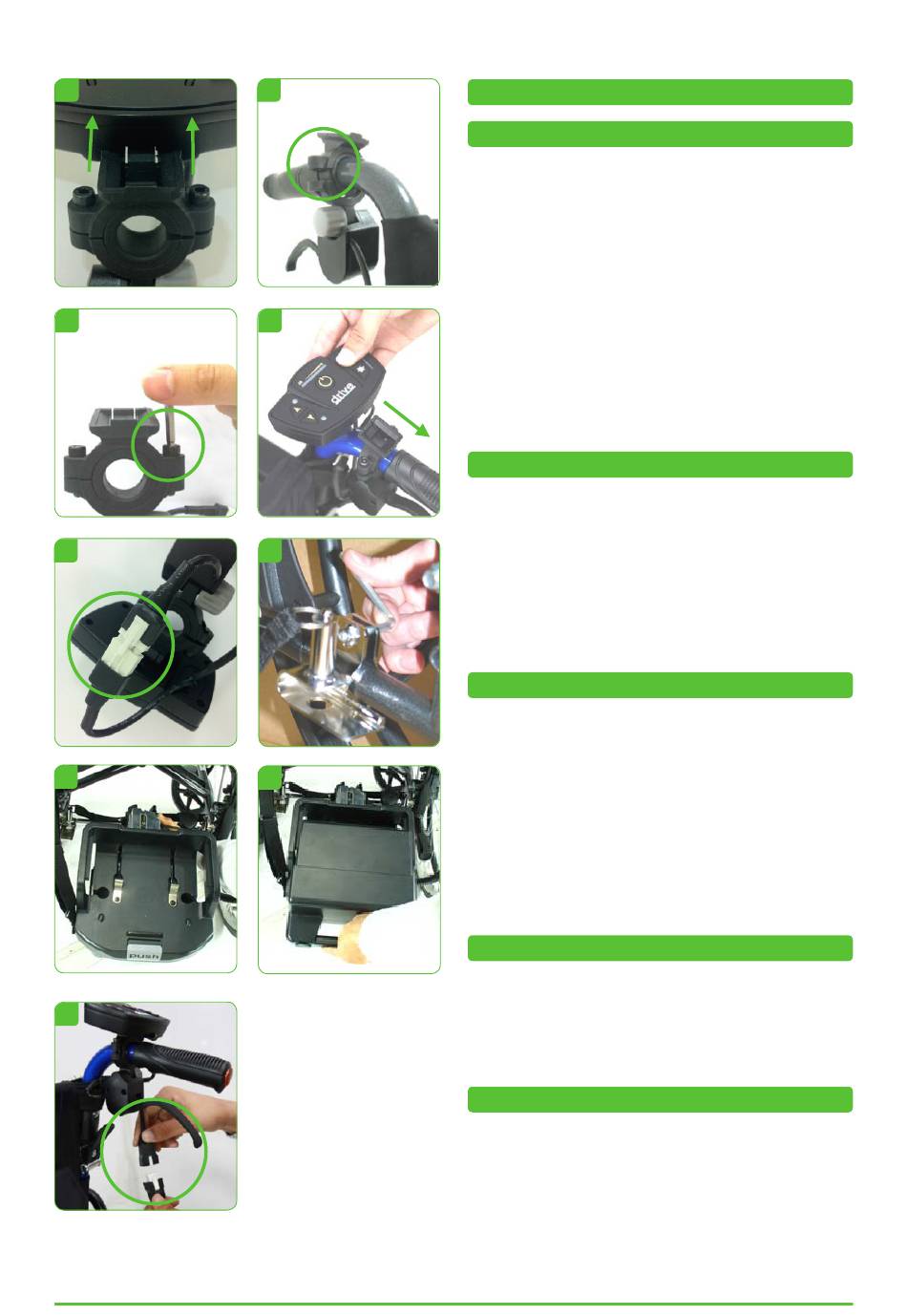

Installation Instructions
Handle set Installation
a. Push from the stopper side to take away the upper
controller. (Figure 1)
b. Use an Allen key to tight the bracket on the
wheelchair handle tube. (Choose the size of the rub-
ber pad according to the tube size). (Figure 3)
c. Put the controller holder back. (Figure 4)
d. Connect the cable form the controller into the Trig-
ger part. (Figure 5)

Bracket Installation

Install both brackets on the bottom horizontal tubing
of the wheelchair, using an Allen Key. (Figure 6)
Attach the two sections of Velcro together.
Ensure that the screws are sufficiently tight and do
not rotate on the tubing.
Powerpack Installation
Feed the telescopic bar through the front end of the
PowerStroll. Loosen the tristar knob on the bar and
adjust to the correct length.
Tighten the knobs on the bar and at the front of
PowerStroll.
Place the two ends of the bar on the rear of the Bra-
ckets, then push the powerpack forward until it locks
in position. (Figure 7).
Battery Pack Installation
Place the battery pack in to the battery tray as
shown in the photograph. Secure the battery pack
on its tray.
(Figure 8).
Final Connection
Connect the cable from the powerpack in to the un-
derneath of the handset.
Place the top loop of the lift-up strap around the op-
posite push handle to the handset. (Figure 9).
