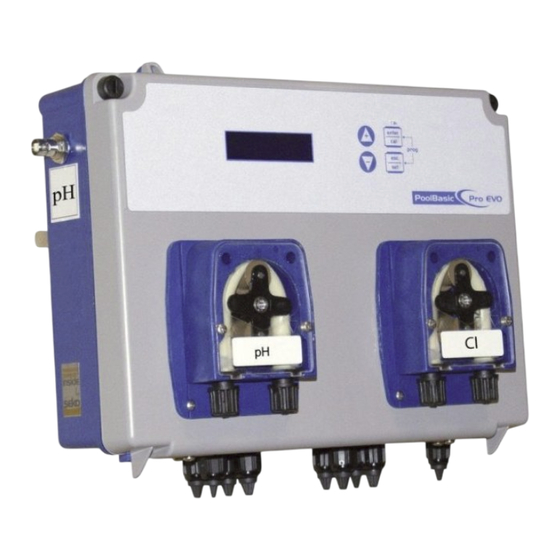

All manuals and user guides at all-guides.com POOL BASIC EVO DOUBLE INSTRUCTIONS MANUAL HANDBUCH MANUAL DE INSTALACION MANUEL D’INSTALLATION MANUALE D’INSTALLAZIONE 0000136904 rev. 2.0...
Seite 2
All manuals and user guides at all-guides.com POOL BASIC EVO Double enter PACK CONTENTS prog A) "Basic POOL Double" pH and REDOX control device B) PVC Crystal 4x6 with suction device (2 m) C) Polyethylene delivery hose (3m) D) Attachment screw (φ=6 mm) E) Foot filter (PVC riser) F) FPM duckbill valve (3/8”...
Seite 3
All manuals and user guides at all-guides.com Instruction Setting Functions: Calibration (Press Cal Key for 3 Seconds): • enter Select the calibration routine pH or Redox by Up or Down key. Standard Routine calibration pH probe is 7 and 4 buffer solution and Redox 465 mV buffer solution Set Point (Press Set Key): •...
Seite 4
All manuals and user guides at all-guides.com Main board Wire Connection: 1) Input pH and Redox Probe 2) Input Temperature Probe (PT100) 3) Input Level Probe Redox (Product Tank) 4) Input Level Probe pH (Product Tank) 5) Input Flow Rate (High Voltage 230 Vac) 6) Output Relay Solenoid Valve Redox (Dry contact, Relay 250 Vac 10 A) 7) Output Relay Alarm remote (Dry contact, Relay 250 Vac 10 A) 8) Output Relay Solenoid Valve pH (Dry contact, Relay 250 Vac 10 A)
Seite 5
All manuals and user guides at all-guides.com pH Probe Calibration Wash Calibration
Press_cal enter enter Calibration During 1 minutes Press Cal Key 3 Seconds Set pH calibration Wait________60s__ Keep probe into Buffer solution 7pH_Quality_100%
Quality Probe Wash Keep probe into Buffer solution 4pH___Press_cal 4pH_Quality_100% enter...
Seite 6
All manuals and user guides at all-guides.com Redox Probe Calibration Wash Calibration
465mv___Press_cal enter enter Calibration During 1 minutes Press Cal Key 3 Seconds Set Redox calibration Wait________60s__ Keep probe into Buffer solution 465mv_Quality_100%
Quality Probe enter Normal Status Press Cal Key 3 Second 0000136904 rev.
Seite 7
All manuals and user guides at all-guides.com enter prog Alarm Display Relay Actions to do Level level____7,2_ph Alarm Relay Close - Push Enter Key to open Alarm Relay - Restore Product tank ofa_alarm__7,2_ph OFA First Alarm (time >70%) Alarm Relay open - Push Enter Key to reset ofa_stop___7,2_ph OFA Second Alarm (time =100%)
Seite 8
All manuals and user guides at all-guides.com POOL BASIC EVO Doppelsystem Verpackungsinhalt enter prog A) "Basic POOL Doppelsystem" pH und REDOX Steuereinheit B) PVC-Ansaugschlauch Crystal 4x6 (2 m) C) Polyethylen Druckschlauch (3 m) D) Schraubendübeln (φ = 6 mm) E) Fußfilter (PVC) F) Rückschlagventil aus FPM (3/8”...
Seite 9
All manuals and user guides at all-guides.com Einstellungen Funktionen: Kalibration ( 3 Sekunden lang die Taste drücken ): • enter Mit den Tasten Auf oder Ab die Sonde auswählen, die kalibriert werden soll (pH oder Redox). Standardfunktion zum Kalibrieren der Sonde mit der Pufferlösung 7 und 4 und 465 mV für Redox. Set Point (Taste Set drücken ): •...
Seite 10
All manuals and user guides at all-guides.com Hauptplatine Kabelanschluss: 1) Eingang Sonde pH/Redox** 2) Eingang Temperatursonde (PT100) 3) Eingang Füllstandssonde Redox (Produkt im Tank) 4) Eingang Füllstandssonde pH (Produkt im Tank) 5) Eingang Zuflusssignal (Durchflussrate) [elektrisches Signal 230 Vac] 6) Ausgang Relais für Elektroventil Redox (Kontakt sauber, Relais 250 Vac, 10 A) 7) Ausgang Relais für Alarm (Kontakt sauber, Relais 250 Vac, 10 A) 8) Ausgang Relais für Elektroventil pH (Kontakt sauber, Relais 250 Vac, 10 A) 9) Stromversorgung des Systems 230 Vac 50-60 Hz.
Seite 11
All manuals and user guides at all-guides.com Kalibrierung der pH-Sonde Die Sonde spülen Kalibration Kal_drucken enter enter Kalibrierungsdauer 1 Minute Die Taste Kal 3 Sekunden lang drücken 60s___pause_ pH-Kalibrierung einstellen Die Sonde in die Pufferlösung halten 7pH_Qualitat_100% Qualität der Sonde Die Sonde spülen Die Sonde in die Pufferlösung halten...
Seite 12
All manuals and user guides at all-guides.com Kalibrierung der Redox-Sonde Die Sonde spülen Kalibration
465mv_Kal_Drucken enter enter Kalibrierungsdauer 1 Minute Die Taste Kal 3 Sekunden lang drücken 60s__pause_ Redox-Kalibrierung einstellen Die Sonde in die Pufferlösung halten 465mv_Qualitat_100 %
Qualität der Sonde enter Normalzustand...
Seite 13
All manuals and user guides at all-guides.com enter prog Alarm Display Relais Abhilfe Fullstand__7,2_ph
Füllstandsalarm Alarm Relais - Die Taste Enter drücken, um geschlossen das Alarmrelais zu offen Fullstand__720_mv - Produkt im Produkttank auffüllen alr_ofa_7,2_ph Erster OFA-Alarm (Zeit >70%) Alarm Relais - Enter drücken, um ein Reset geöffnet...
Seite 14
All manuals and user guides at all-guides.com POOL BASIC EVO Doble enter Contenido del embalaje: prog A) Unidad de control "Basic POOL Doble" pH y REDOX B) Tubo de aspiración en PVC Crystal 4x6 (2 m) C) Tubo de envío en polietileno (3m) D) Tornillos con tacos (φ...
Seite 15
All manuals and user guides at all-guides.com Configuraciones Funciones: Calibración (Pulsar la tecla Cal por 3 segundos): • enter Seleccionar la sonda a calibrar pH o Redox con las teclas Arriba o Abajo. Función Estándar de calibración de la sonda con la solución tampón 7 y 4 y 465 mV para el Redox.
Seite 16
All manuals and user guides at all-guides.com Placa principal Conexión cables: 1) Entrada sonda pH y Redox 2) Entrada sonda Temperatura (PT100) 3) Entrada sonda Nivel Redox (Producto en el depósito) 4) Entrada sonda Nivel pH (Producto en el depósito) 5) Entrada señal Flujo (Caudal) [Señal eléctrica 230 Vca] 6) Salida Relé...
Seite 17
All manuals and user guides at all-guides.com Calibración sonda pH Lavar la sonda Calibracion Pulsar_cal enter enter Duración calibración 1 minuto Pulsar la tecla Cal por 3 segundos programar calibración pH Espere___60s_ Conservar la sonda en la solución tampón 7pH_Calidad_100% Calidad sonda Lavar la sonda Conservar la sonda en la solución...
Seite 18
All manuals and user guides at all-guides.com Calibración sonda Redox Lavar la sonda Calibración
465mv__Pulsar_cal enter enter Duración calibración 1 minuto Pulsar la tecla Cal por 3 segundos programar calibración Redox espere__60s__ Conservar la sonda en la solución tampón 465mv_Calidad_100 %
...
Seite 19
All manuals and user guides at all-guides.com enter prog Alarma Display Relé Acción a efectuar nivel___7,2_ph
Nivel Alarma Relé - Pulsar la tecla Intro para abrir Cerrada Alarma Relé nivel___720_mv - Restablecer el producto en el depósito alr_ofa__7,2_ph OFA Primera Alarma (tiempo > 70%) Alarma Relé...
Seite 20
All manuals and user guides at all-guides.com POOL BASIC EVO Double enter Contenu de l’emballage : prog A) « Basic POOL Doppio » unité de contrôle pH - RÉDOX B) Tuyau d’aspiration PVC Crystal 4x6 (2 m) C) Tuyau de refoulement en Polyéthylène (3m) D) Chevilles (φ...
Seite 21
All manuals and user guides at all-guides.com Réglages Fonctions : Étalonnage (Appuyer sur la touche Cal pendant 3 secondes) : • enter Sélectionner la sonde à étalonner, pH ou potentiel Rédox, à l’aide des touches flèche Haut ou flèche Bas. Fonction Standard d’étalonnage de la sonde avec la solution tampon 7 et 4 et 465 mV pour le potentiel Rédox.
Seite 22
All manuals and user guides at all-guides.com Panneau de commande Connexion des cables: 1) Entrée sonde pH et Redox 2) Entrée sonde température (PT100) 3) Entrée sonde Niveau Redox (Produit dans le bidon) 4) Entrée sonde Niveau pH (Produit dans le bidon) 5) Entrée signal débit (Flow Rate) [signal électrique 230 Vc.a.] 6) Sortie Relais Alarme pour électrovanne Redox (Contact libre, Relais 250 Vc.a.
Seite 23
All manuals and user guides at all-guides.com Étalonnage Sonde pH Laver la sonde calibrage presser_cal enter enter Durée Étalonnage 1 minute Appuyer sur la touche Cal pendant 3 secondes patienter___60_s_ Régler étalonnage pH. Maintenir la sonde dans la solution tampon 7pH_Qualite’_100% Qualité...
Seite 24
All manuals and user guides at all-guides.com Étalonnage sonde Redox Laver la sonde calibrage 465mv__presser_cal enter enter Appuyer sur la touche Cal pendant 3 Durée Étalonnage 1 minute secondes Régler étalonnage Redox patienter__60
s __ Maintenir la sonde dans la solution tampon 465mv_Qualite’_100 %
...
Seite 25
All manuals and user guides at all-guides.com enter prog Alarme Écran Relais Action à exécuter Niveau niveau___7,2_ph
Alarme relais fermé - Appuyer sur la touche Enter pour activer alarme relais niveau___720_mv - Rétablir le niveau de produit dans le récipient Alr_ofa__7,2_ph OFA Première Alarme (temps >70%) Alarme relais...
Seite 26
All manuals and user guides at all-guides.com POOL BASIC EVO Doppio enter Contenuto nell’imballo: prog A) "Basic POOL Doppio" pH and REDOX unità di controllo B) PVC Crystal 4x6 tubo aspirazione (2 m) C) Polyethylene tubo mandata (3m) D) Tasselli a vite (φ=6 mm) E) Filtro di fondo (PVC) F) FPM valvola di non ritorno (3/8”...
Seite 27
All manuals and user guides at all-guides.com Impostazioni Funzioni: Calibrazione (Premere tasto Cal per 3 Secondi): • enter Selezionare la sonda da calibrare pH o Redox con i tasti Su o Giù. Funzione Standard di calibrazione della sonda con la soluzione tampone 7 e 4 e 465 mV per il Redox.
Seite 28
All manuals and user guides at all-guides.com Main board Wire Connection: 1) Ingresso sonda pH e Redox 2) Ingresso sonda Temperatura (PT100) 3) Ingresso sonda Livello Redox (Prodotto nella tanica) 4) Ingresso sonda Livello pH (Prodotto nella tanica) 5) Ingresso segnale Flusso (Flow Rate) [Segnale elettrico 230 Vac] 6) Uscita Relè...
Seite 29
All manuals and user guides at all-guides.com Calibrazione sonda pH Lavare la sonda Calibrazione Premere_cal enter enter Durata Calibrazione 1 minuto Premere il tasto Cal 3 Secondi impostare calibrazione pH. Attendere___60s_ Mantenere la sonda nella soluzione tampone 7pH_Qualita’_100% Qualità sonda Lavare la sonda Mantenere sonda nella Soluzione tampone...
Seite 30
All manuals and user guides at all-guides.com Calibrazione Sonda Redox Lavare la sonda CalibraZione
465mv__Premere_cal enter enter Durata Calibrazione 1 minuto Premere il tasto Cal 3 Secondi impostare calibrazione Redox attendere__60s__ Mantenere la sonda nella soluzione tampone 465mv_Quality_100%
Qualità...
Seite 31
All manuals and user guides at all-guides.com enter prog Allarme Display Relè Azione da Fare livello___7,2_ph
Livello Allarme Relè - Premere Enter per aprire Chiuso Allarme Relè livello___720_mv - Ripristinare il Prodotto nella tanica ofa_alr__7,2_ph OFA Primo Allarme (time >70%) Allarme Relè...
