Safety Precautions

1. Read all instructions before using this tool. All operators must be fully
trained in its use and aware of these safety rules.
2. The tool RPM should be checked on a regular basis to ensure proper
operating speed.
3. Make sure the tool is disconnected from the air supply.
4. Always wear required safety equipment when using this tool.
5. Always remove the air supply to the tool before fitting, adjusting or
removing the abrasive.
6. Always adopt a firm footing and grip and be aware of torque reaction
developed by the tool.
7. Use only 3M approved spare parts.
8. Always ensure the material being worked is firmly fixed to avoid
movement.
9. Check hose and fittings regularly for wear. Do not carry the tool by its
hose; always be careful to prevent the tool from being started when
carrying the tool with the air supply connected.
10. Dust can be highly combustible.
11. If tool is serviced or rebuilt, check to ensure that the maximum tool
RPM is not exceeded and that there is no excessive tool vibration.
12. Do not exceed maximum recommended air pressure. Use safety
equipment as recommended.
13. The tool is not electrically insulated. Do not use where there is a pos-
sibility of contact with live electricity, gas pipes, and/or water pipes.
14. This tool is not protected against hazards inherent in grinding and
cutting operations and no such accessories should ever be attached.
15. Take care to avoid entanglement with the moving parts of the tool
with clothing, ties, hair, cleaning rags or loose hanging objects. If
entangled, stop air supply immediately to avoid contact with moving
tool parts.
16. If the tool appears to malfunction, remove from use immediately and
arrange for service and repair.
17. Immediately release the start handle in the event of any disruption
of pressure; do not attempt to re-start until the disruption has been
corrected.
18. When tool is not in use, store in a clean dry environment free of
debris.
19. Recycle or dispose of tool according to Local, State, and Federal
Regulations.
To Coupler
at or near Tool
3M 1 / in. to 3 / in. File Belt Sander
8 4
All manuals and user guides at all-guides.com
REVISED 05/26/09 IT
1
2
3
4
5
6
7
Drain Leg
Ball Valve
To Tool Station
Ball
Valve
Drain Valve
Air Hose
Air Compressor
and Tank
5
3M™ File Belt Contact Arms
3M Contact Arms are perfectly mated for use on the
3M File Belt Sander. Constructed from premium, industrial-quality
materials, their durability and precise construction are the ideal
complement to the performance of the 3M File Belt Sander. The following
chart is a sample of products offered.
P/N DESCRIPTION
See 3M ASD Accessory catalog 61-5002-8098-9 for additional
XPA2394 RETAINING COMPOUND
Accessories.
XPA2240 WHEEL POSITION BLOCK
XPA2239 SHAFT REMOVAL TOOL
XPA2238 BEARING REMOVAL TOOL 3/8 ID
XPA2237 BEARING REMOVAL TOOL 1/4 ID
Service Tool Kit
XPA2236 BEARING MOUNT TOOL
XPA2447 BEARING REMOVAL TOOL 5/8 ID
Description
Service Tool Kit
1
2
ITEM DESCRIPTION
1 RETAINING COMPOUND
2 WHEEL POSITION BLOCK
3 SHAFT REMOVAL TOOL
4 BEARING REMOVAL TOOL
5 BEARING REMOVAL TOOL
6 BEARING MOUNT TOOL
5
7 BEARING TOOL / ID
8 in.

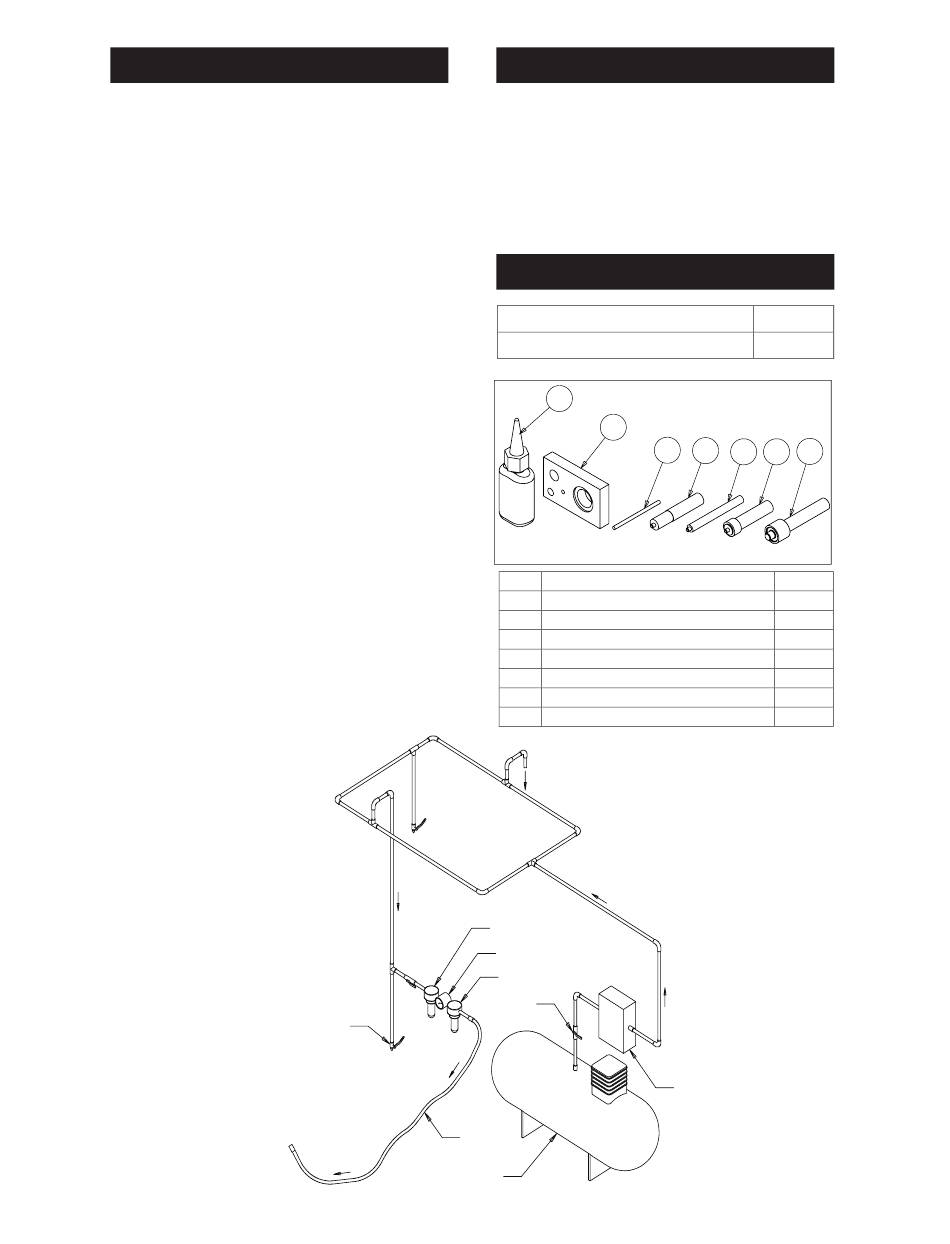

Closed Loop Pipe System
Sloped in the direction of air flow
Filter
Regulator
Lubricator
Ball Valve
Figure 1
QTY.
Part Number
30670
3
4 7
5 6
QTY.
1
1
1
3
/ ID 1
8 in.
1
/ ID 1
4 in.
1
1
Air Flow
Air Dryer
Revision 022514
REVISION RECORD
R DESCRIPTION / DATE
1
RELEASED FOR PRODUCTIO
A
1
EDS 11-3-09 RAG 11/18/
1
ITEM 7 XPA2447 WAS NOT O
B
1
EDS 12/21/09 PWH 12/21
1
1
1
X'POLE
PRE
TOO
PROPRIETARY AND CONFID
THE INFORMATION CONTAINED IN THIS DRAWING IS T
PROPERTY OF X'POLE PRECISION TOOLS INC. ANY REP
DUCTION IN PART OR AS A WHOLE WITHOUT THE WR
PERMISSION OF X'POLE PRECISION TOOLS INC. IS PRO
MATERIAL
SEE BOM
STD TOL
.XXX +/-
0.1
.X +/- XX/XX +/-
0.05
.XX +/-
ANGLES +/-
E
DRWN BY / DATE CKD BY / DATE
EDS
11/3/09
TITLE
SERVICE TOOL K
P/N XPA239
