Installing the device into the ISO duct
92
■ To avoid function disturbances the installation angle should be less than 30°.
■ Do not install the device in a location where it will be subjected to high
temperatures (i. e. direct sunlight or heating vents), heavy contamination and
strong vibrations.
■ In the event that changes to the vehicle are necessary contact your vehicle
dealer/qualifi ed radio installation facility.
♦ Pull the installation bracket
housing.
♦ Place the installation bracket into the ISO mounting duct.

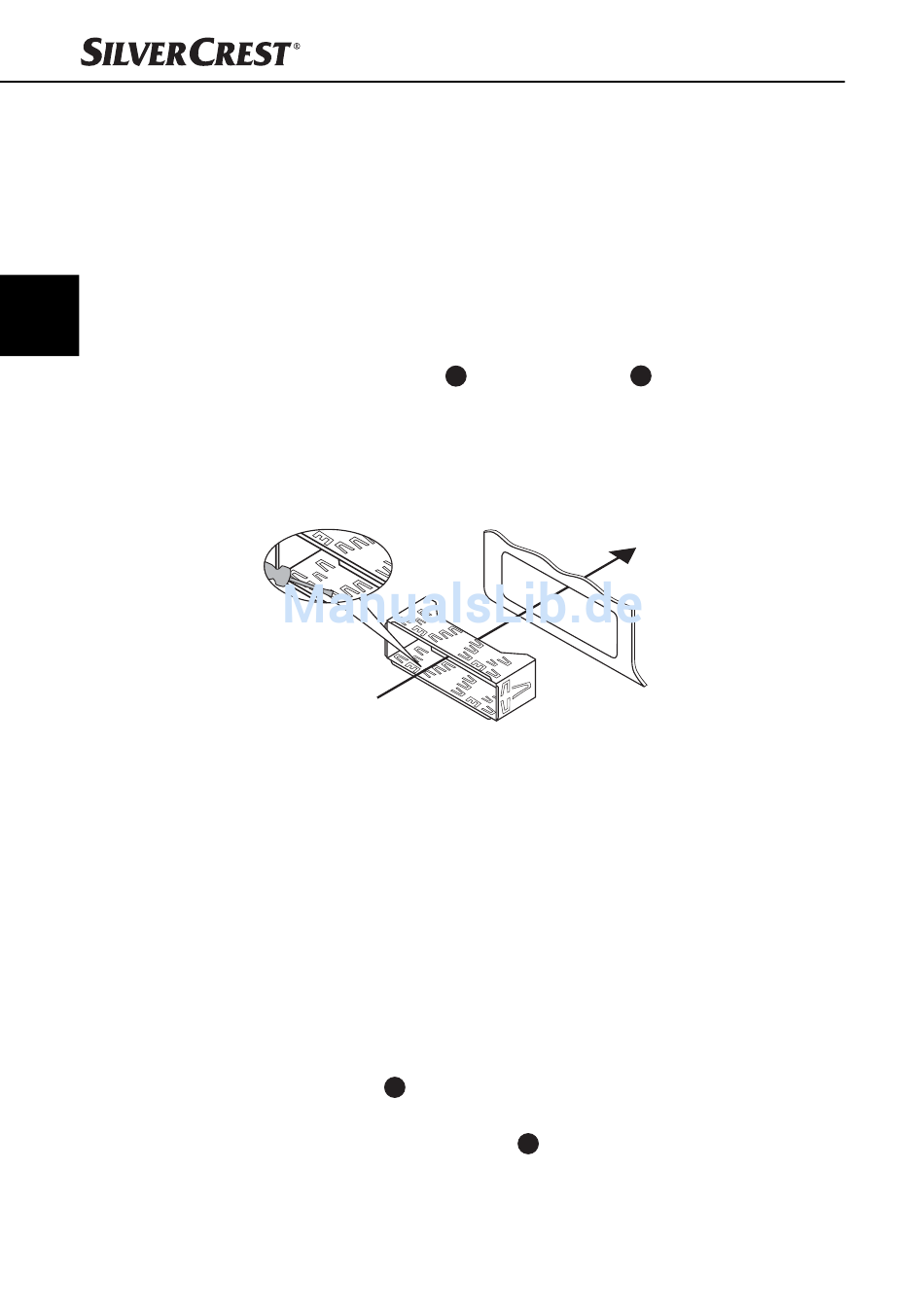

♦ Bend the tabs on the installation bracket with a screw driver so that the
bracket is fi xed fi rmly into the mounting duct (see diagram).
♦ Check to make sure that the bracket is securely fi xed.
♦ Connect the ISO socket block of the device with the two ISO plugs on your
vehicle.
♦ Connect the antenna cable from the vehicle antenna to the antenna socket
on the device. The vehicle-specifi c DIN ISO adapter, which under circum-
stances you may need, is available from specialist workshops, specialist
shops or in the specialist sections of department stores.
♦ Feed the microphone unit cable into the aperture and connect it to the
microphone unit socket. Run the cable in such a way that the microphone
unit can be secured in the vehicle interior later, see also the section "Using
the microphone".
♦ Contingently connect the audio cinch cable of an external amplifi er to the
LINE OUT socket
♦ Contingently connect the audio cinch cable of an external subwoofer to the
yellow cinch socket SUBWOOFER
