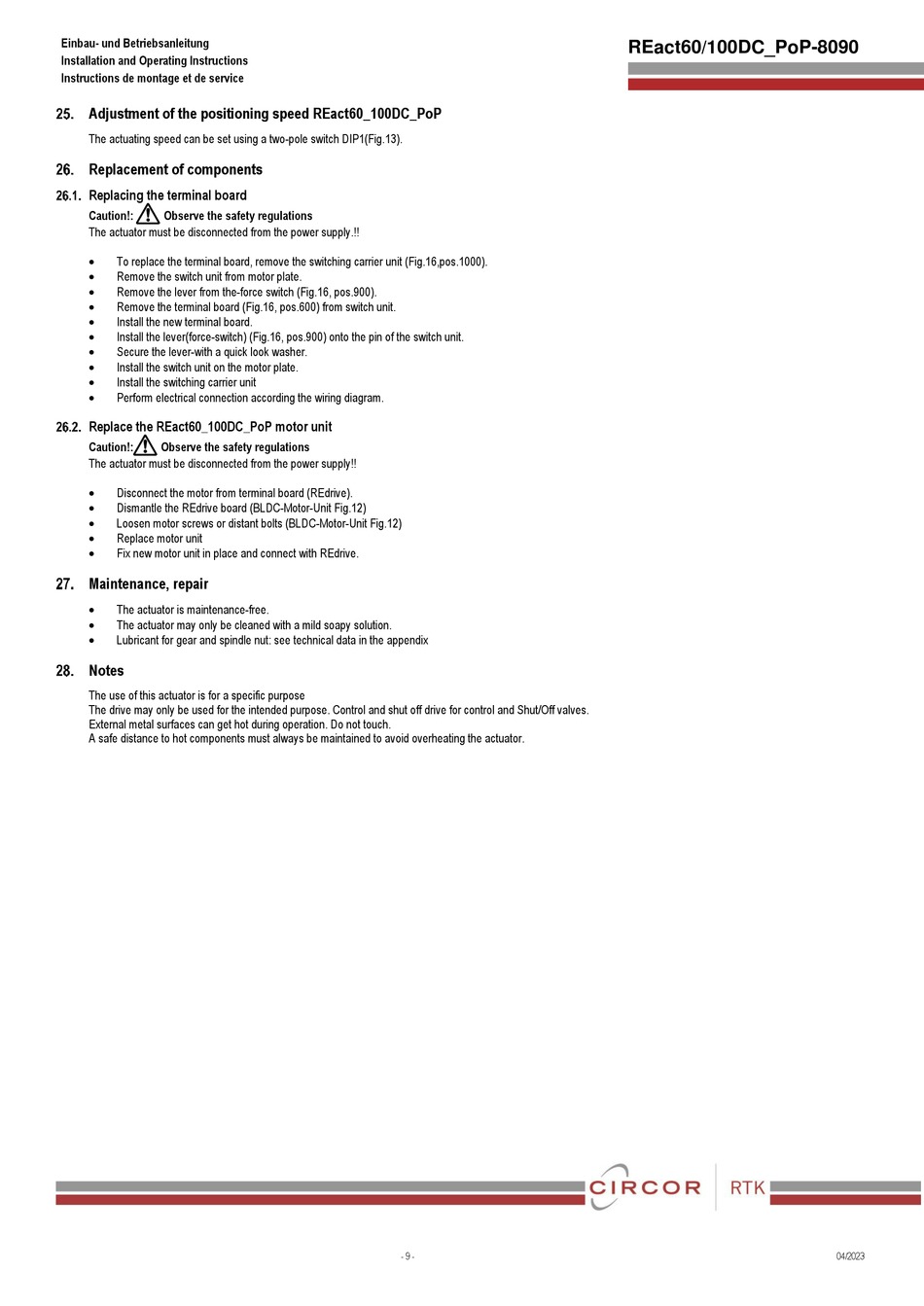

Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service
Adjustment of the positioning speed REact60_100DC_PoP
The actuating speed can be set using a two-pole switch DIP1(Fig.13).
Replacement of components
Replacing the terminal board
a
Caution!:
Observe the safety regulations
The actuator must be disconnected from the power supply.!!
•
To replace the terminal board, remove the switching carrier unit (Fig.16,pos.1000).
•
Remove the switch unit from motor plate.
•
Remove the lever from the-force switch (Fig.16, pos.900).
•
Remove the terminal board (Fig.16, pos.600) from switch unit.
•
Install the new terminal board.
•
Install the lever(force-switch) (Fig.16, pos.900) onto the pin of the switch unit.
•
Secure the lever-with a quick look washer.
•
Install the switch unit on the motor plate.
•
Install the switching carrier unit
•
Perform electrical connection according the wiring diagram.
Replace the REact60_100DC_PoP motor unit
a
Caution!:
Observe the safety regulations
The actuator must be disconnected from the power supply!!
•
Disconnect the motor from terminal board (REdrive).
•
Dismantle the REdrive board (BLDC-Motor-Unit Fig.12)
•
Loosen motor screws or distant bolts (BLDC-Motor-Unit Fig.12)
•
Replace motor unit
•
Fix new motor unit in place and connect with REdrive.
Maintenance, repair
•
The actuator is maintenance-free.
•
The actuator may only be cleaned with a mild soapy solution.
•
Lubricant for gear and spindle nut: see technical data in the appendix
Notes
The use of this actuator is for a specific purpose
The drive may only be used for the intended purpose. Control and shut off drive for control and Shut/Off valves.
External metal surfaces can get hot during operation. Do not touch.
A safe distance to hot components must always be maintained to avoid overheating the actuator.
REact60_100DC_PoP-8010v1.0.docx
- 9 -
REact60/100DC_PoP-8090
04/2023
