Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service
Installation onto valves
The actuator can be fitted onto the valve in any position. The coupling is designed with a standard M12 connection thread.
The length of the pillars must be specified when ordering an actuator.

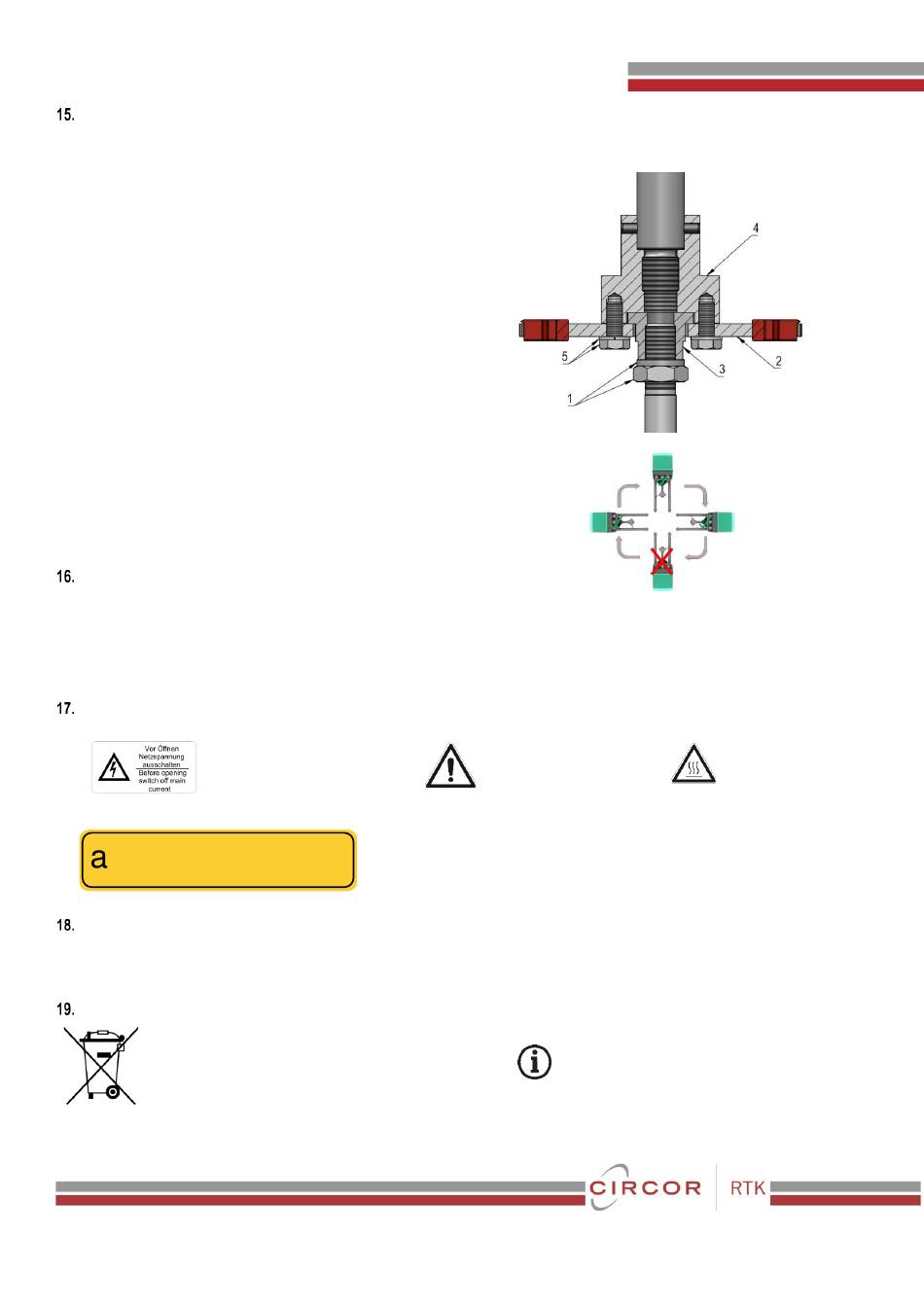

Installation with pillars
•
Screw in the required pillars
•
Screw DIN 439 M12 nut and spring washer onto the valve plug stem (1)
•
Place parallel guide over the valve plug stem (2)
•
Screw the bushing stud onto the valve plug stem (3)
•
Attach the actuator/actuator spindle to the valve and adjust the position to lay flat on the bushing stud (4)
•
Connect the parallel guide to the actuator coupling with 4x M6x20 bolts and spring washers (5)
•
Adjust the actuator for stroke according to installation instructions
Permitted mounting positions:
Vertical upright position
Horizontal position with the pillars stacked
•
Install the actuator to leave adequate room for manual operation(Fig.10).
•
Also leave approx. 120 mm clearance to the top of the body for removal(Fig.10).
Operation conditions
•
max. altitude 2000 m above sea level
•
max. 95% working humidity
•
Power supply ±10%
•
Overvoltage category II
•
Contamination level II
•
tested and certified for indoor use only
Hazard warnings
Caution! Dangerous electrical voltage
Caution!
To avoid dangerous situations caused by accidental movement of the actuator in case of power off (PoP operation),
disconnect the connector (REdrive
Bei allen Arbeiten am Stellantrieb die Steckverbindung
(REdrive) Klemme 31/32 trennen!
For all work on the actuator disconnect the connector
(REdrive) terminal 31/32!
Notice
The RTK actuators are used to actuate control or shut-off valves that require a linear nominal travel. Application limits can be found in the data sheets or technical data.
The actuator may only be used for the intended purpose.
Any use of the actuator outside of the listed technical data or improper use is considered improper use.
Disposal
Regeltechnik Kornwestheim GmbH
registered manufacture in Germany
at Stiftung elektro-altgeräte register (ear).
WEEE-Reg.-Nr.: DE 64914972
REact60_100DC_PoP-8010v1.0.docx
Reference to installation instructions
) terminals 31/32 when working on the actuator.
ECU
- 6 -
REact60/100DC_PoP-8060
Caution! Hot surfaces
Observe national and international disposal
regulations and laws
04/2023
