Triton's multi award-winning TRA001 features single wrench, above the table bit change capability, and is perfect for table-mounted and hand-held
use. Significant features include the single-button switch from conventional plunge router to fixed-base mode router, and the 3-stage, pre-set height
adjustment system, which allows the plunge return spring to be removed quickly for easy lifting and adjustment when mounted in a router table. For
enhanced safety, the automatic spindle lock will only engage when the power switch safety cover is closed, ensuring the tool cannot accidentally be
switched on during the bit change procedure.
Soft Start & Variable Speed
provides the perfect speed for all cutter types
Easy Access Brushes
allows the end user to
change worn brushes
Safety Switch Shutter
locks closed in bit-change
mode to prevent router being
switched on
Side Air Vents
reduce intake of dust into the
motor casing when mounted
upside-down in a router table
⁄ " & ⁄ " (EU: ⁄ " & 12mm) Collet
1 1 1
2 4 2
for a greater range of bit fitment
Automatic Spindle Lock
engages only when the power
switch cover is closed
3-Stage Turret
with direct reading scales for
precise pre-set cut depths
Bit Change
through the base a Single Wrench
Bit Change is achieved with the
automatic spindle lock
Selling Points
• Powerful 2400W / 3 hp electronically controlled motor
⁄
1
4
• Single switch from plunge to fixed-base router with rack & pinion height
adjustment
• 8000-20000rpm electronic speed maintenance under load
• Automatic spindle lock for single wrench bit changes
• 3-stage turret with direct reading scales for precise pre-set cut depths
• Soft start & variable speed provides the perfect speed for all cutter types
• Micro winder enables continuous fine depth adjustment
What's in the Box
• Table Height Winder
• ⁄ " & ⁄ " (EU: ⁄ " & 12mm) Collet
1 1 1
2 4 2
• Multi-Function Fence
Dual Mode Precision
Plunge Router
• Collet Wrench
provides maximum protection from the
cut zone & assists dust extraction
Key Specifications
220-240V 50Hz
Power
2400W
Speed
Collet ⁄ " &
1
2
Plunge Range 0 – 68mm
Dust Extraction
Weight 6kg
Optional Accessories

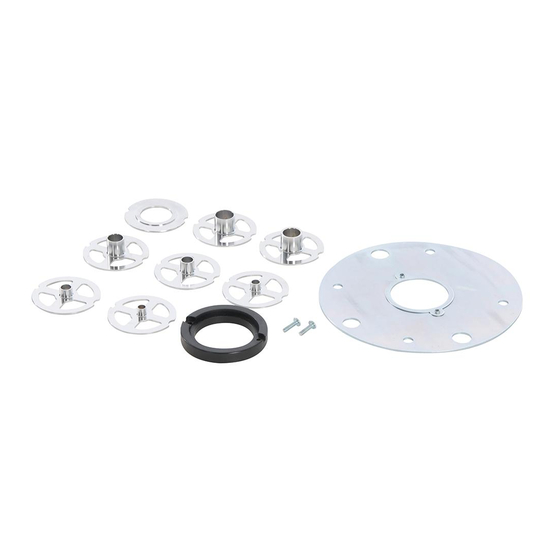

Template Guide Kit with brass
TGA001
guide bushes in 7 sizes
Accessories Kit includes height
winder, template guides, dust
TGA150
chute, guide plate, alignment brush
and table spacer
tritontools.com
TRA 001
Micro Winder
enables continuous fine depth
adjustment through the full
plunge range
Removable
Plunge Spring
for easy bit
adjustment when
table mounted
Single button
switches from plunge
to fixed based router
with rack & pinion
adjustment is as
simple as pushing a
button
Fully Enclosed Guarding
Quick Fit Pins
for fast fitment & removal
from the fence & the
RTA300 Router Table
Voltage
110-120V 60Hz
3 ⁄ hp / 15A
1
4
8000 - 20000rpm
⁄ " (EU: ⁄ " & 12mm)
1 1
4 2
0 - 2 ⁄ "
21
32
Yes
13.2lbs
