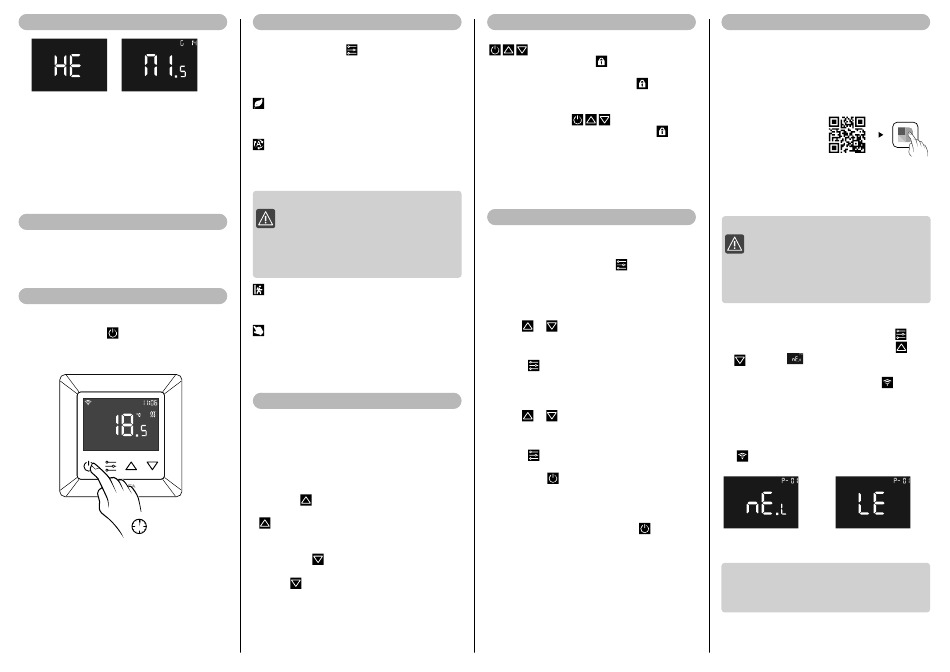

Power Up Display
"HE": "HE" indicates that this device is a heat only
device.
G14: "G 14" indicates that the thermostat has
already communicated with zigbee, zigbee version is
14, otherwise "G 14" will not be displayed.
"M1.5": indicates the firmware version number of
the thermostat is 1.5.
Home Screen - Standby Screen
If there is no interaction with the thermostat, the
display will reduce the brightness after 6 seconds.
Basic Function
Turn the thermostat on or off
Press and hold button
for 3S to turn on or turn
off the thermostat.
> 3 seconds
Thermostat Modes
After turning on the device, the home screen will be
active, a short press of
will change between the
modes.
Modes will change according to the following
sequence Sleep - Auto - Absence - Manual.
Sleep (Night):
Manually modify the set temperature on the home
screen, default value is 17°C.
Auto (Schedule):
Auto mode activates the schedule set in Parameter
P-19. This mode is also used when running a
schedule or temperature from the App.
Important Schedule Warning.
When the thermostat is associated with the
Tydom application, it is recommended to use
the Tydom application to carry out the
programming.
Please ensure any schedule on the device is
deactivated (in P-19) as this could cause a conflict.
Absence:
Manually modify the set temperature on the home
screen, default is 6°C.
Manual (comfort):
Manually modify the set temperature on the home
screen, default value is 20°C.
Temperature Setting
After turning the device on, the temperature can be
manually set for the different modes via the home
screen.
when in Auto (schedule) mode, the temperature
follows that of the schedule set in Parameter P-19.
A. to increase the setpoint temperature, press the
up button
to increase the temperature by
increments of 0.5°C, press and hold the up button
to increase the temperature more rapidly.
B. to decrease the setpoint temperature, press the
down button
to decrease the temperature by
increments of 0.5°C, press and hold the down
button
to decrease the temperature more
rapidly.
Keypad Lock
On the home screen, press and hold the 3
buttons at the same time for over 5
seconds, subsequently the
icon will flash slowly,
which means the lock is activated. When the device
is locked, if any button is pressed, the
icon will
flash for 1.5 seconds.
On any screen, if the lock has already been activated,
press and hold the 3
buttons at the same
time for over 5 seconds, subsequently the
will disappear, which means the lock is deactivated.
Setting The Parameters
Introduction
- Step 1:
From any screen, press and hold
button to enter
the main parameter menu, "P-01" will flash to
indicate that you have accessed the main parameter
menu - at parameter 01.
- Step 2:
Use the
or
button to select the parameter
that you would like to configure: "P-01" --> "P-02" ...
- Step 3:
Press the
button once to enter the selected
parameter. The current value of the parameter will
then flash slowly.
- Step 4:
Use the
or
button to modify the parameter
value.
- Step 5:
Press the
button once to confirm and save the
modification and return to the main parameter
menu, or press
button to return to the main
parameter menu directly without saving the
modification.
- Step 6:
From the main parameter menu, press
button to
return to the home screen.
Parameter "P-01"
Adding thermostat from another Zigbee Network.
Ensure the device is not still part of another Zigbee
Network, perform a factory reset.
Adding a thermostat to the TYDOM app.
Pairing with the Tydom app:
Download the Tydom
app. Depending on your
icon
device : Go to Google
Play or the App Store and
search for and download
the free «Tydom» app.
Go to the «Settings» page of your installation, select
«Add a device» > Heating -> Electrical -> Tybox
Zigbee 16A, then follow the instructions.
Important Schedule Warning.
When the thermostat is associated with the
Tydom application, it is recommended to use
the Tydom application to carry out the
programming.
Please ensure any schedule on the device is
deactivated (in P-19) as this could cause a conflict.
Adding the thermostat to other Zigbee ecosystems
Select parameter "P-01" , then press button
enter parameter "P-01", then press button
or
to select "
" ("nE.A" means net add), then
press button , the "Ad" (Add) icon will be shown at
the center of the display, meanwhile the
will flash slowly, and the device will enter network
pairing mode, the network pairing mode will last for
180 seconds.
If the process time's out, please repeat this step.
Once added to the Zigbee network successfully,
the
icon will illuminate.
Adding to a Zigbee Network
Quick tip:
If the device has not been added to a network, it
will enter pairing mode for the first 60 seconds
after power has been applied to the device.
Tydom
to
icon
3
