Safety & Warnings
Important: Read All Instructions Prior to
Installation
• WARNING: Electrical power must be switched off
during installation
• DO NOT install with power applied to device.
• The diagrams provided are simplified for greater
clarity. Protection and other accessories required by
standards are not illustrated. - Standard NF C15-100
and good practice must be complied with.
Connected or nearby units must not generate
excessive interference (directive 89/336/EEC).
• The electrical HVAC controller is a wireless
thermostat for heating systems, which complies
to Zigbee 3.0 wireless protocol standards. The
thermostat can be controlled manually, locally or
remotely via Tydom (Home/Pro) which supports
Zigbeee.
Internal Over Heat Protection
To ensure higher safety during the heating process.
If the internal temperature of the device becomes too
hot, the device will temporarily turn off the relay. The
icon will flash slowly until the temperature drops,
the device will then operate normally.
EN

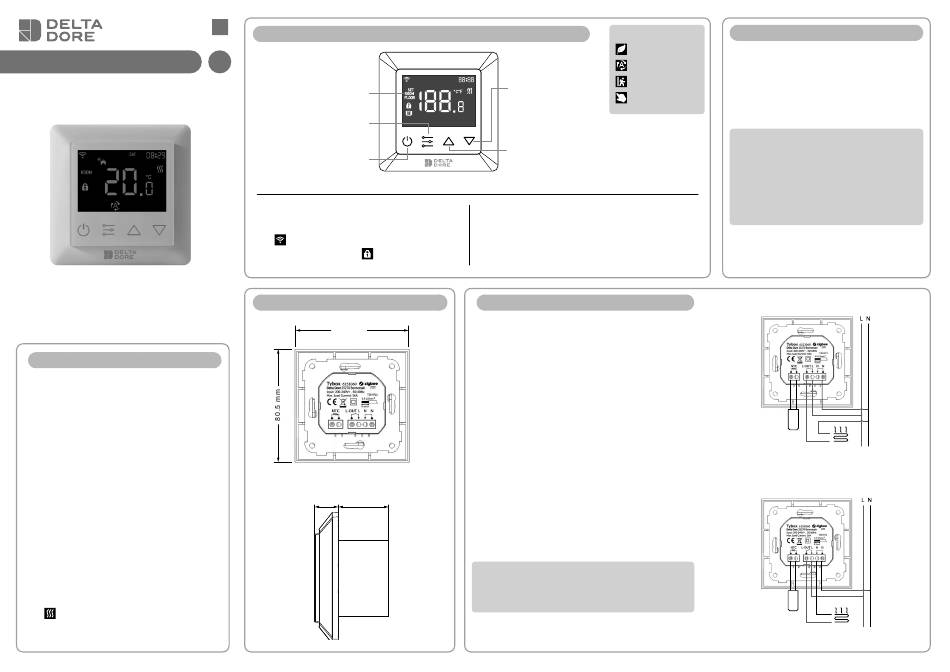

Screen and button overview
Digital Display
Confirmation/mode button
ON/OFF button
Icon Description
When the device is added to a Zigbee network:
The icon turns on.
Keypad Lock enabled: the icon turns on.
Dimensions
80.5 mm
23 mm 28,5 mm
4 operating modes :
Sleep (Night),
Auto (Schedule),
Absence,
Down button:
Decrease the set
Manual (comfort)
temperature, decrease
the configuration
parameter value.
Up button:
Increase the set temperature,
increase the configuration parameter value.
SET icon turns on : setpoint temperature is displayed.
ROOM icon turns on : real room temperature is
displayed.
FLOOR icon turns on : real floor setpoint temperature
is displayed.
Wiring diagram
This device should be installed by a licensed electrician
in a manner that conforms to local regulations and
building regulations. Provide these instructions to the
licensed electrician who is installing the device.
1. Remove the display unit and backplate of the device
from the packaging.
2. FIRST ENSURE THE POWER IS OFF at the main
consumer unit, and then test the wires with a probe
or multimeter to verify.
3. Insert the power and heating wires to the correct
device terminals by inserting a small Phillips-head
screwdriver in the slot beneath each terminal
to open. Follow the connection diagram and
instructions below:
• Power input:
Connect Live & Neutral wires to L & N terminals
labeled "IN".
• Heating output:
Connect Live & Neutral wires to L & N terminals
labeled with "heating element" graphic.
WARNING:
The wire size shall be in compliance with regulations,
using a wire of insufficient size for large loads will
cause a severe temperature increase.
Location
Since the temperature measurement sensor is
inside the device, you must install the thermostat
in a flush mounted box:
- on an accessible wall at a height of 1.50 m.
- away from heat sources, fireplaces, sunlight and
draughts (windows, doors).
IMPORTANT:
Do not install the thermostat on a wall that
is in contact with the outdoors or with an
unheated room (e.g. garage, etc.) The sleeve
output in the flushmounting box must be
blanked off (with mastic) in order to avoid
unwanted air movements that could bias the
sensor reading.
Connection diagram 1
Floor sensor
(optional )
Connection diagram 2
Floor sensor
(optional )
