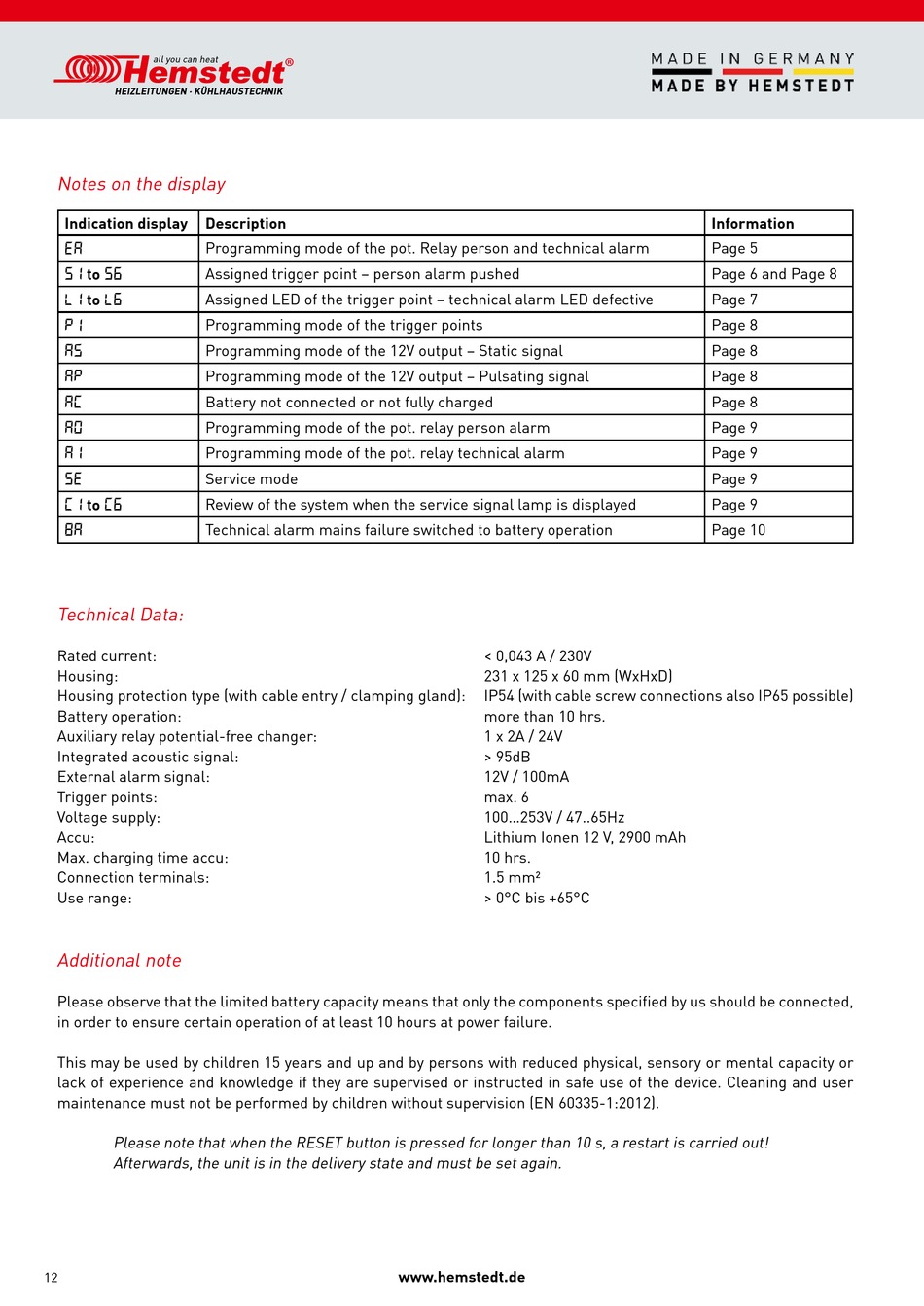

Notes on the display
Indication display
Description
Programming mode of the pot. Relay person and technical alarm
EA
S1 to S6
Assigned trigger point – person alarm pushed
L1 to L6
Assigned LED of the trigger point – technical alarm LED defective
Programming mode of the trigger points
P1
Programming mode of the 12V output – Static signal
A5
Programming mode of the 12V output – Pulsating signal
AP
Battery not connected or not fully charged
AC
Programming mode of the pot. relay person alarm
A0
Programming mode of the pot. relay technical alarm
A1
Service mode
SE
C1 to C6
Review of the system when the service signal lamp is displayed
Technical alarm mains failure switched to battery operation
8A
Technical Data:
Rated current:
Housing:
Housing protection type (with cable entry / clamping gland):
Battery operation:
Auxiliary relay potential-free changer:
Integrated acoustic signal:
External alarm signal:
Trigger points:
Voltage supply:
Accu:
Max. charging time accu:
Connection terminals:
Use range:
Additional note
Please observe that the limited battery capacity means that only the components specified by us should be connected,
in order to ensure certain operation of at least 10 hours at power failure.
This may be used by children 15 years and up and by persons with reduced physical, sensory or mental capacity or
lack of experience and knowledge if they are supervised or instructed in safe use of the device. Cleaning and user
maintenance must not be performed by children without supervision (EN 60335-1:2012).
Please note that when the RESET button is pressed for longer than 10 s, a restart is carried out!
Afterwards, the unit is in the delivery state and must be set again.
12
®
www.hemstedt.de
< 0,043 A / 230V
231 x 125 x 60 mm (WxHxD)
IP54 (with cable screw connections also IP65 possible)
more than 10 hrs.
1 x 2A / 24V
> 95dB
12V / 100mA
max. 6
100...253V / 47..65Hz
Lithium Ionen 12 V, 2900 mAh
10 hrs.
1.5 mm²
> 0°C bis +65°C
Information
Page 5
Page 6 and Page 8
Page 7
Page 8
Page 8
Page 8
Page 8
Page 9
Page 9
Page 9
Page 9
Page 10
