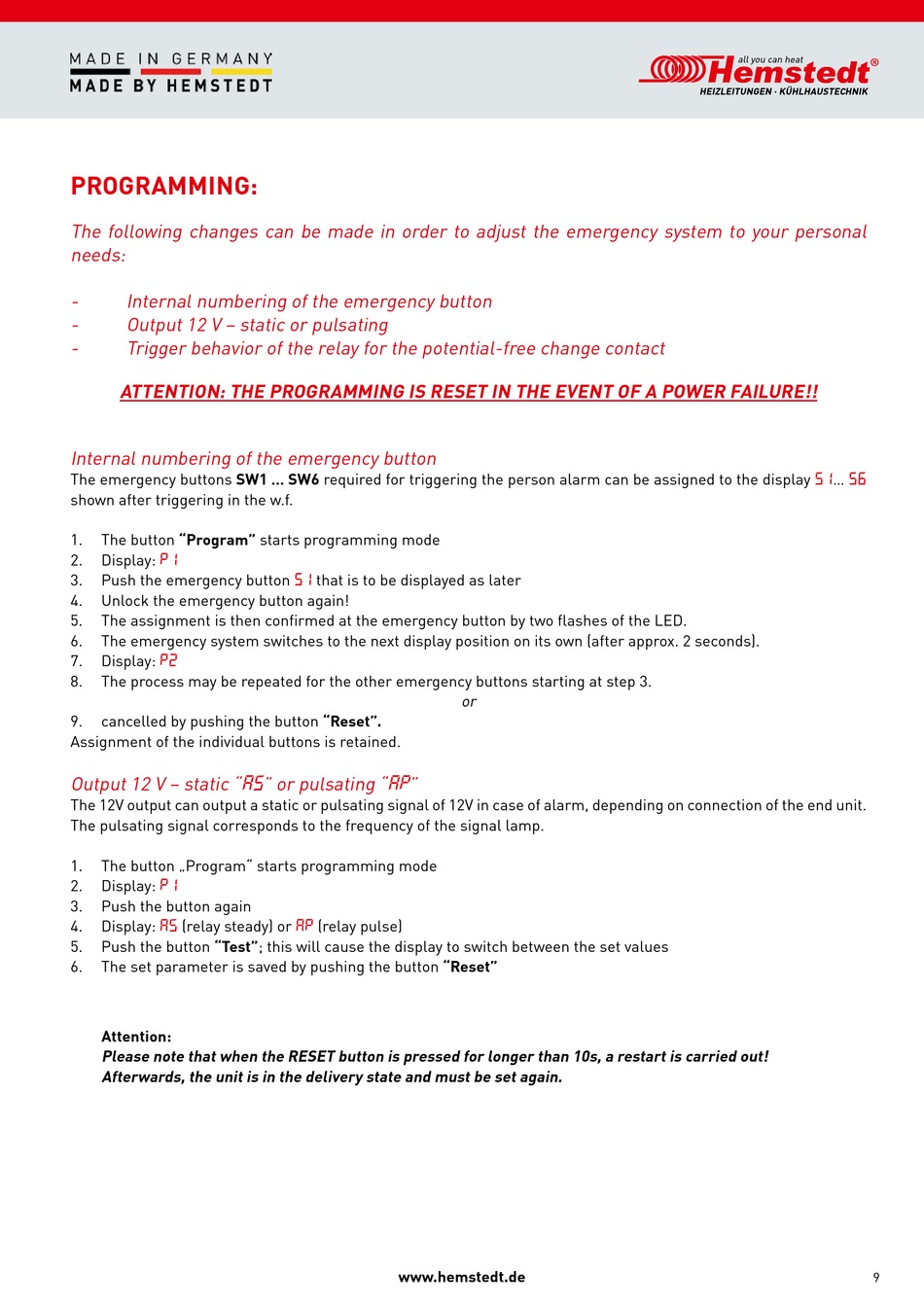

PROGRAMMING:
The following changes can be made in order to adjust the emergency system to your personal
needs:
-
Internal numbering of the emergency button
-
Output 12 V – static or pulsating
-
Trigger behavior of the relay for the potential-free change contact
ATTENTION: THE PROGRAMMING IS RESET IN THE EVENT OF A POWER FAILURE!!
Internal numbering of the emergency button
The emergency buttons SW1 ... SW6 required for triggering the person alarm can be assigned to the display S1...
shown after triggering in the w.f.
1.
The button "Program" starts programming mode
2.
Display:
P1
3.
Push the emergency button
4.
Unlock the emergency button again!
5.
The assignment is then confirmed at the emergency button by two flashes of the LED.
6.
The emergency system switches to the next display position on its own (after approx. 2 seconds).
7.
Display:
P2
8.
The process may be repeated for the other emergency buttons starting at step 3.
cancelled by pushing the button "Reset".
9.
Assignment of the individual buttons is retained.
Output 12 V – static "A5" or pulsating "AP"
The 12V output can output a static or pulsating signal of 12V in case of alarm, depending on connection of the end unit.
The pulsating signal corresponds to the frequency of the signal lamp.
1.
The button „Program" starts programming mode
2.
Display:
P1
3.
Push the button again
4.
Display:
(relay steady) or
A5
5.
Push the button "Test"; this will cause the display to switch between the set values
The set parameter is saved by pushing the button "Reset"
6.
Attention:
Please note that when the RESET button is pressed for longer than 10s, a restart is carried out!
Afterwards, the unit is in the delivery state and must be set again.
that is to be displayed as later
S1
or
(relay pulse)
AP
