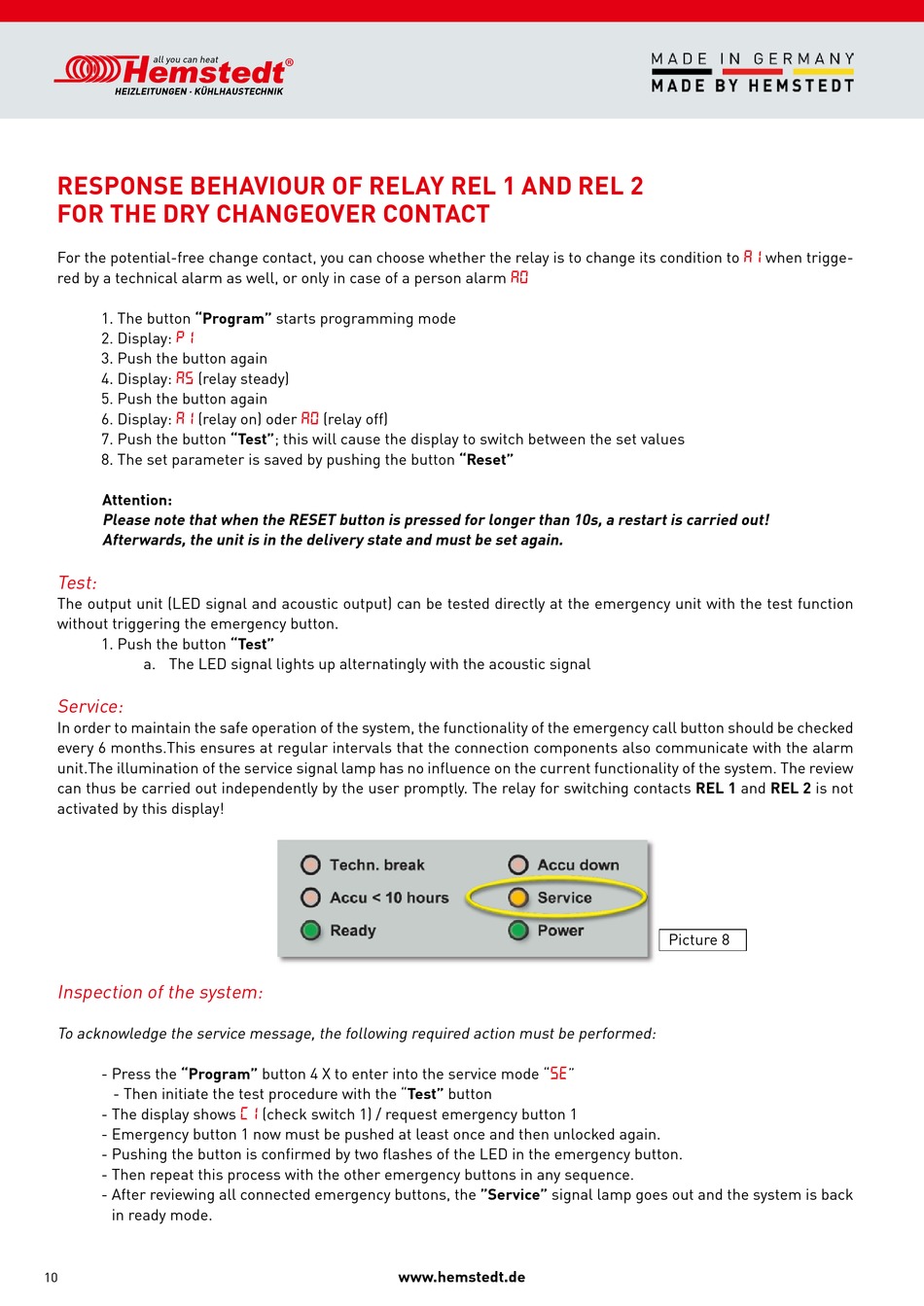

RESPONSE BEHAVIOUR OF RELAY REL 1 AND REL 2
FOR THE DRY CHANGEOVER CONTACT
For the potential-free change contact, you can choose whether the relay is to change its condition to
red by a technical alarm as well, or only in case of a person alarm
1. The button "Program" starts programming mode
2. Display:
P1
3. Push the button again
4. Display:
(relay steady)
A5
5. Push the button again
6. Display:
(relay on) oder
A1
7. Push the button "Test"; this will cause the display to switch between the set values
8. The set parameter is saved by pushing the button "Reset"
Attention:
Please note that when the RESET button is pressed for longer than 10s, a restart is carried out!
Afterwards, the unit is in the delivery state and must be set again.
Test:
The output unit (LED signal and acoustic output) can be tested directly at the emergency unit with the test function
without triggering the emergency button.
1. Pus h the button "Test"
a. The LED signal lights up alternatingly with the acoustic signal
Service:
In order to maintain the safe operation of the system, the functionality of the emergency call button should be checked
every 6 months.This ensures at regular intervals that the connection components also communicate with the alarm
unit.The illumination of the service signal lamp has no influence on the current functionality of the system. The review
can thus be carried out independently by the user promptly. The relay for switching contacts REL 1 and REL 2 is not
activated by this display!
Inspection of the system:
To acknowledge the service message, the following required action must be performed:
- Press the "Program" button 4 X to enter into the service mode "SE"
- Then initiate the test procedure with the "Test" button
- The display shows
- Emergency button 1 now must be pushed at least once and then unlocked again.
- Pushing the button is confirmed by two flashes of the LED in the emergency button.
- Then repeat this process with the other emergency buttons in any sequence.
- After reviewing all connected emergency buttons, the "Service" signal lamp goes out and the system is back
in ready mode.
10
®
(relay off)
A0
(check switch 1) / request emergency button 1
C1
www.hemstedt.de
A0
Picture 8
when trigge-
A1
