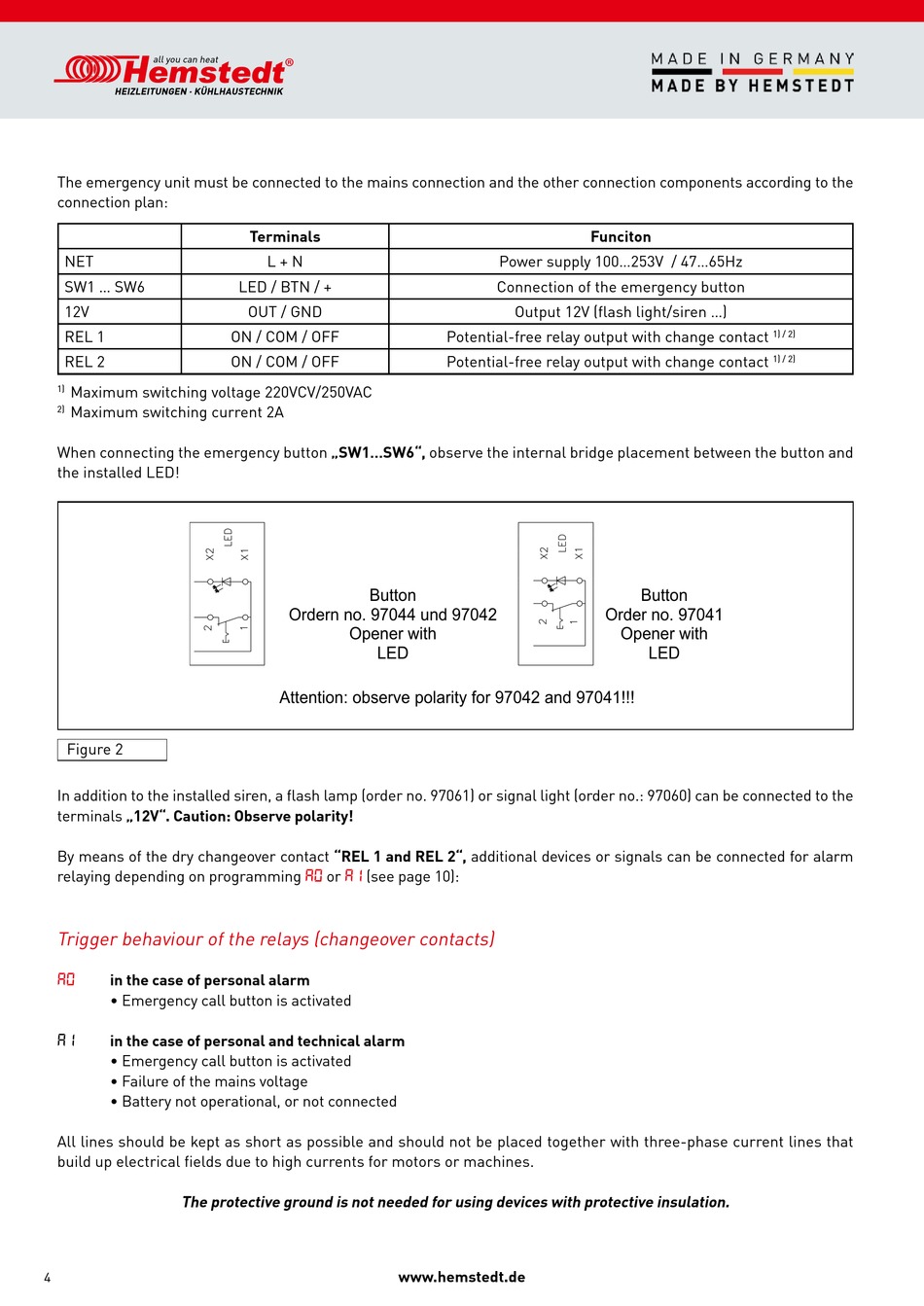

The emergency unit must be connected to the mains connection and the other connection components according to the
connection plan:
NET
SW1 ... SW6
12V
REL 1
REL 2
Maximum switching voltage 220VCV/250VAC
1)
Maximum switching current 2A
2)
When connecting the emergency button „SW1...SW6", observe the internal bridge placement between the button and
the installed LED!
Figure 2
In addition to the installed siren, a flash lamp (order no. 97061) or signal light (order no.: 97060) can be connected to the
terminals „12V". Caution: Observe polarity!
By means of the dry changeover contact "REL 1 and REL 2", additional devices or signals can be connected for alarm
relaying depending on programming
Trigger behaviour of the relays (changeover contacts)
in the case of personal alarm
A0
• Emergency call button is activated
in the case of personal and technical alarm
A1
• Emergency call button is activated
• Failure of the mains voltage
• Battery not operational, or not connected
All lines should be kept as short as possible and should not be placed together with three-phase current lines that
build up electrical fields due to high currents for motors or machines.
The protective ground is not needed for using devices with protective insulation.
4
®
Terminals
L + N
LED / BTN / +
OUT / GND
ON / COM / OFF
ON / COM / OFF
Button
Ordern no. 97044 und 97042
Opener with
LED
Attention: observe polarity for 97042 and 97041!!!
or
(see page 10):
A0
A1
www.hemstedt.de
Funciton
Power supply 100...253V / 47...65Hz
Connection of the emergency button
Output 12V (flash light/siren ...)
Potential-free relay output with change contact
Potential-free relay output with change contact
Order no. 97041
Opener with
1) / 2)
1) / 2)
Button
LED
