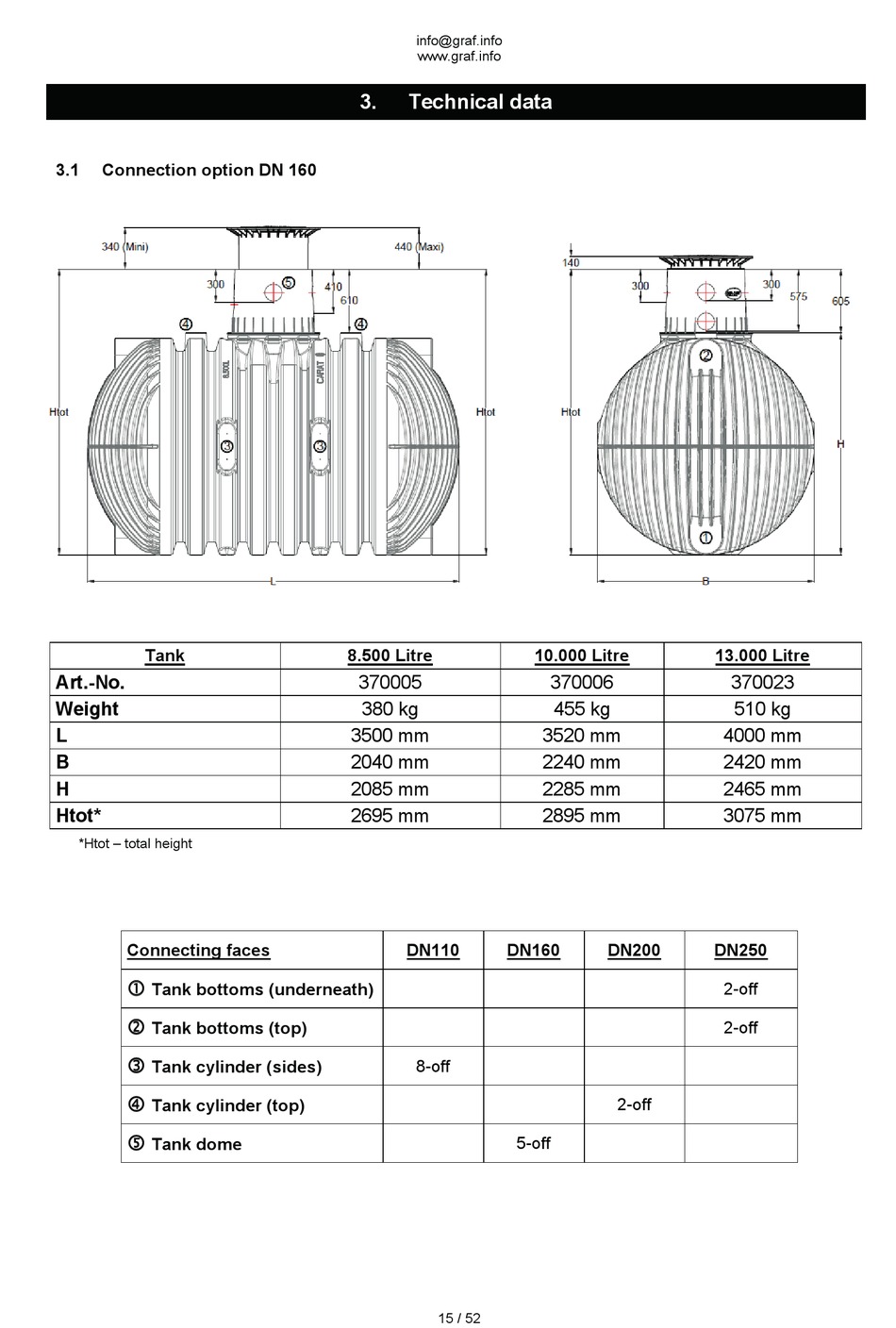

3.1

Connection option DN 160

Tank
Art.-No.
Weight
L
B
H
Htot*
*Htot – total height
Connecting faces
Tank bottoms (underneath)
Tank bottoms (top)
Tank cylinder (sides)
Tank cylinder (top)
Tank dome
info@graf.info
www.graf.info
3.

Technical data

8.500 Litre
370005
380 kg
3500 mm
2040 mm
2085 mm
2695 mm
DN110 DN160
8-off
5-off
15 / 52
10.000 Litre
370006
455 kg
3520 mm
2240 mm
2285 mm
2895 mm
DN200
2-off
13.000 Litre
370023
510 kg
4000 mm
2420 mm
2465 mm
3075 mm
DN250
2-off
2-off
