FLASHLIGHT MOUNTING/REMOVAL
HANDLING A FIREARM CAN BE DANGEROUS AND MAY RESULT IN SERIOUS INJURY, DAMAGE
WARNING
TO PROPERTY, OR DEATH. MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS
OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.

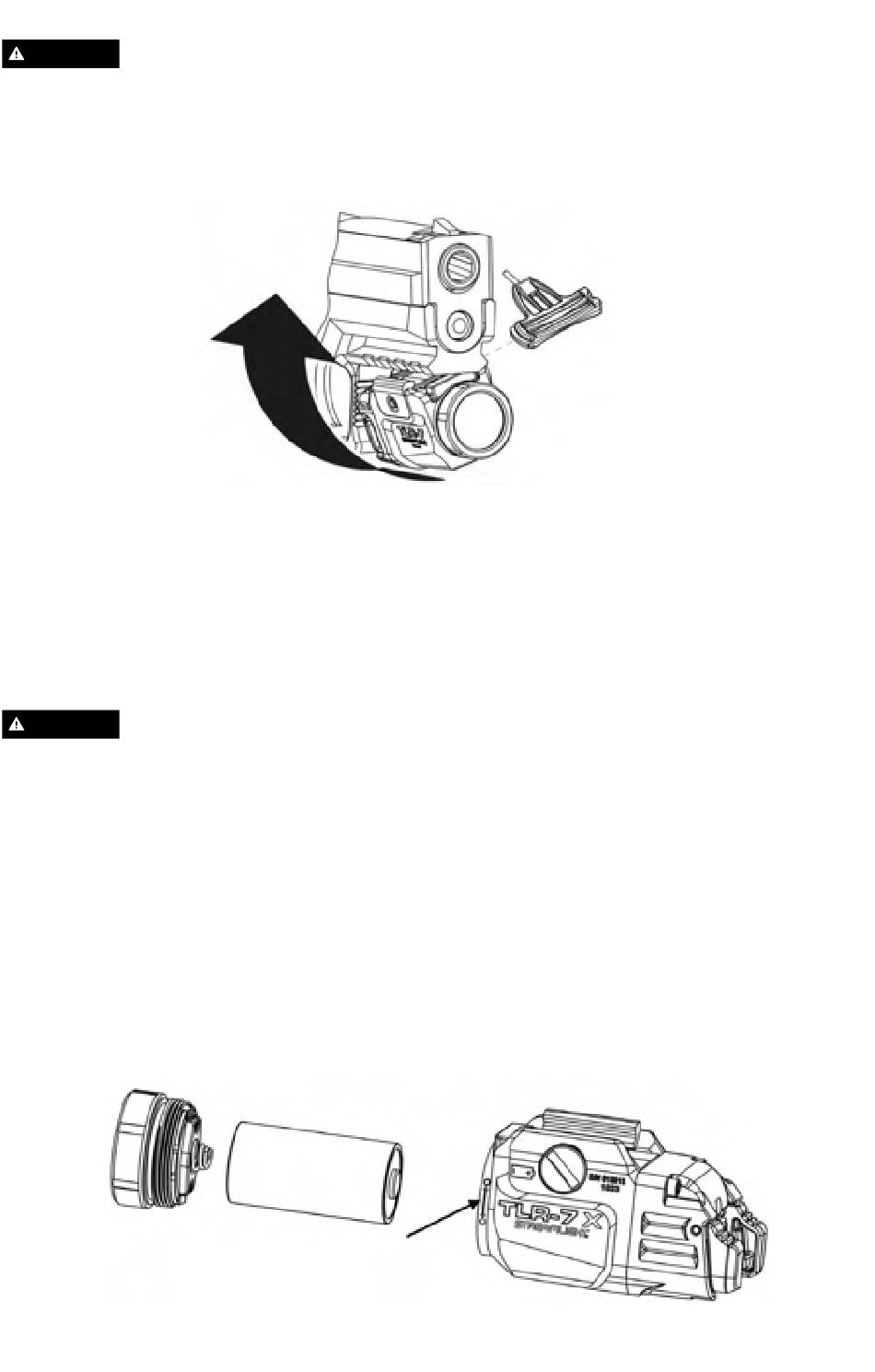

1. The TLR is designed to be quickly attached or detached from the side of the weapon or accessory rail.
2. Loosen the rail clamp tension bolt.
3. Angle the TLR, placing the fixed portion of the rail clamp against the accessory rail and align the rail key with
the appropriate cross groove in the accessory rail.
4. Depress the rail clamp tension bolt to open the rail clamp, rotate the TLR into place and release the pressure on
the tension bolt to "snap" the light in place.
5. Check for fit and tighten rail clamp tension bolt until the TLR is securely attached to the firearm.
NOTE: The driver feature of the multi-tool opposite the e-clip feature may be used to obtain sufficient tightness.
Alternatively, a coin may be used. Tighten only "finger tight."
BATTERY INSTALLATION/REMOVAL
HANDLING A FIREARM CAN BE DANGEROUS AND MAY RESULT IN SERIOUS INJURY, DAMAGE
WARNING
TO PROPERTY, OR DEATH. MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS
OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.
At the end of battery life, the switch may appear intermittent or non-functional. Replacing the battery will restore
normal operation.
1. Unscrew and remove the face cap assembly from the body of the TLR.
Remove the exhausted battery from the flashlight body.
2. The multi-fuel TLR-7
Insert a fresh CR123A or SL-B9
indicated on the side of the TLR body.
3. Place the face cap assembly onto the TLR body. Fully tighten the face cap assembly to ensure that the battery
makes complete contact with the internal electrical contacts.
4. For "safe" mode, loosen the face cap approximately ¼ turn to the detent.
The light will not turn on when either button is pressed and the battery is disconnected.
X uses either a CR123A lithium battery or an SL-B9
®
battery, positive end first, into the body of the TLR. Battery polarity is
™
Safe mode
USB rechargeable battery.
™
