Installationsvejledning / Installation Guide

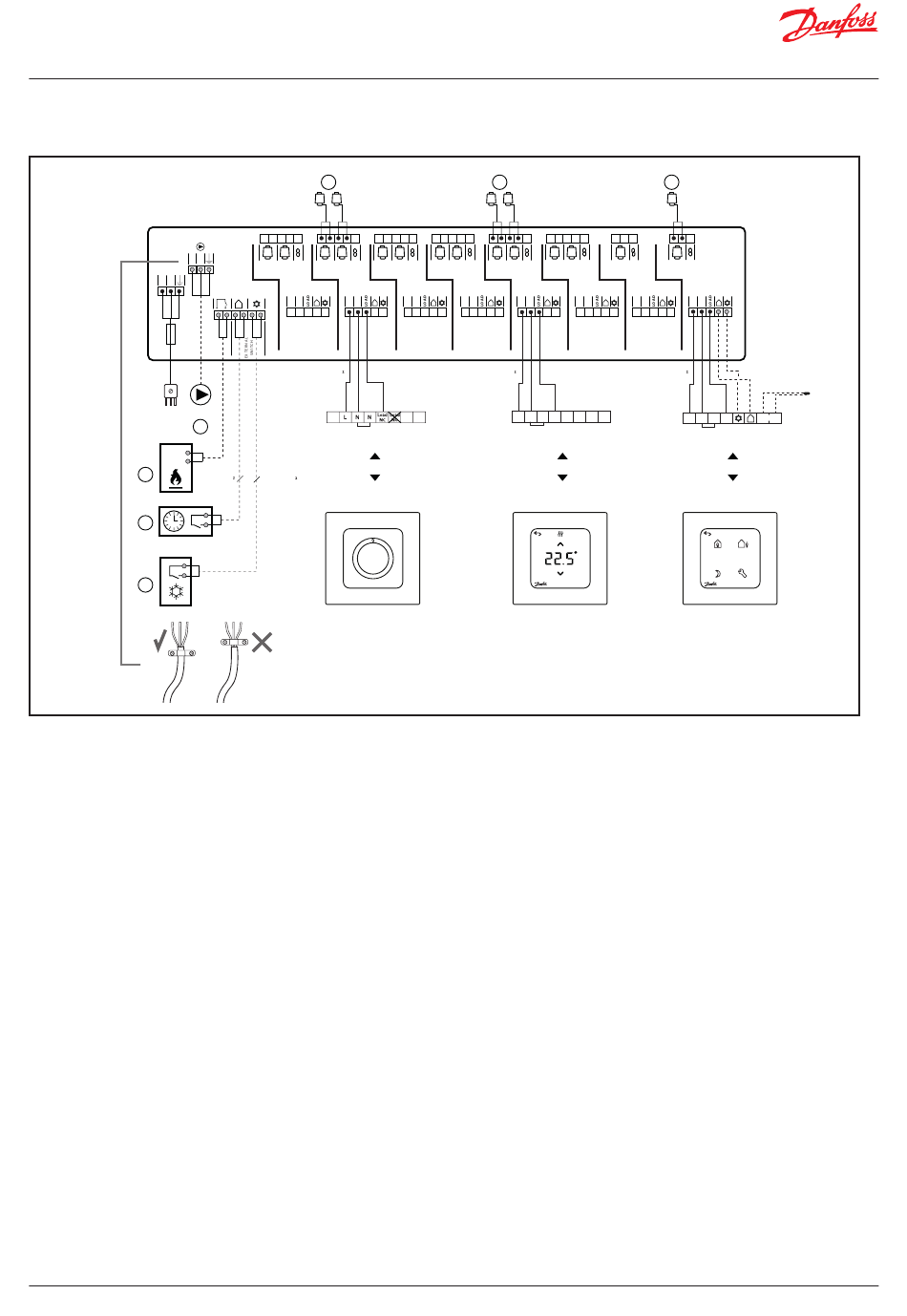

Schaltdiagramm / Wiring diagram
Icon™ 230V Wiring Center
MAX. 100 W
L N
L N
3A
Mains
Option
220-240 VAC
1
50/60 Hz
HEAT!
Option
2
Option
3
Option
4
AN37074197191501-010301
5
1
1
2
2
THERMOSTAT 1
THERMOSTAT 2
L N
L N
≤ 1,5 mm
Example: Icon™ Dial
2× ≤ 1,5 mm
2× ≤ 1,5 mm
Edelstahl Verteilersysteme / Distribution units SG/ SGC for VX-F
5
3
3
4
4
5
5
THERMOSTAT 3
THERMOSTAT 4
THERMOSTAT 5
L N
L N
L N
≤ 1,5 mm
Load
L
N
N
Example: Icon™ Display
5
6
6
7
8
THERMOSTAT 6
THERMOSTAT 7
THERMOSTAT 8
L N
L N
L N
≤ 1,5 mm
Load
L
N
N
L
Example: Icon™ Programmable
© Danfoss | HydronicS | Sub-systems | 2023.02 | 19
Options
Option
Sensor
NTC
L
