Installationsvejledning / Installation Guide

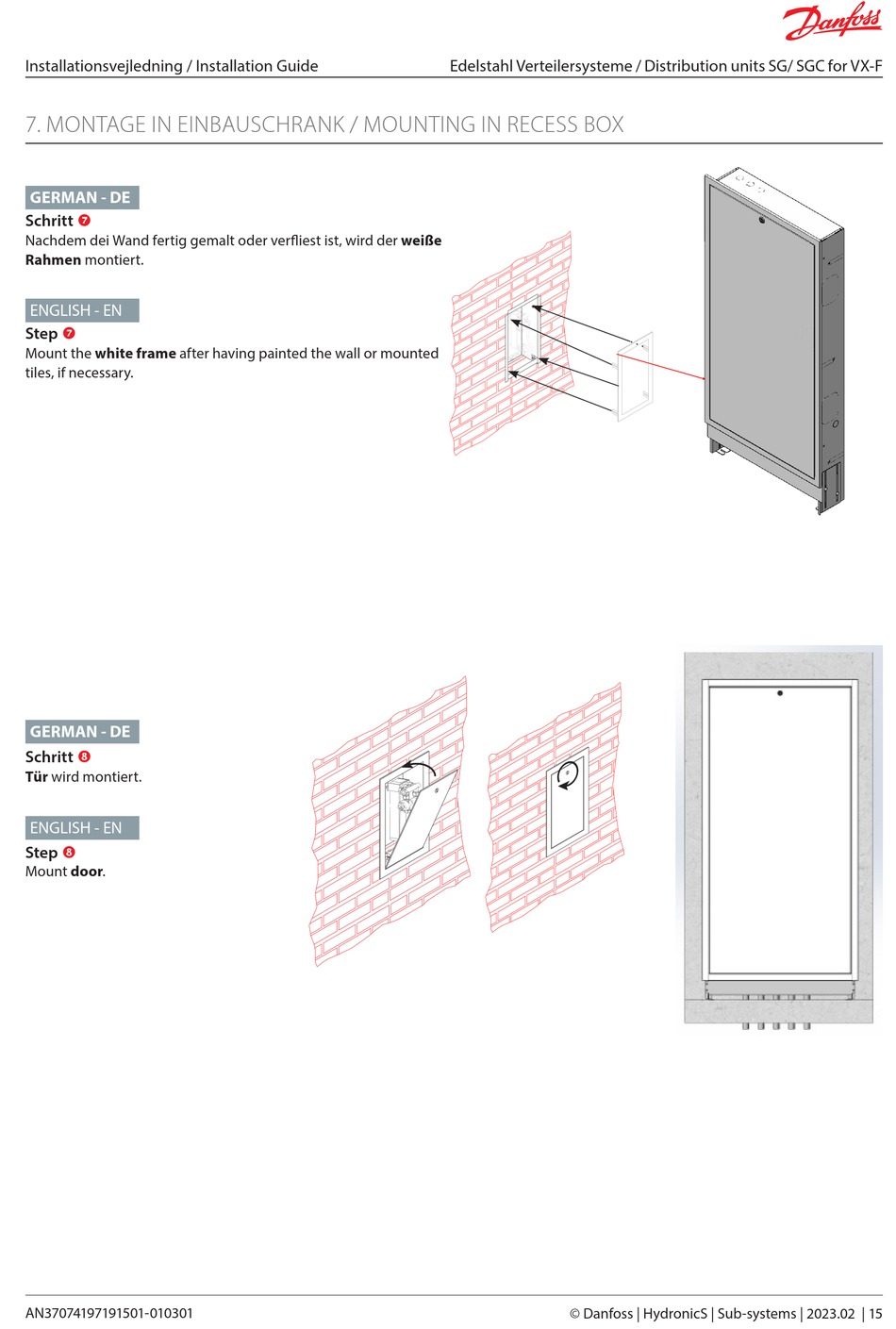

7. MONTAGE IN EINBAUSCHRANK / MOUNTING IN RECESS BOX
1
A
GERMAN - DE
Schritt
Nachdem dei Wand fertig gemalt oder ver iest ist, wird der weiße
B
Rahmen montiert.
ENGLISH - EN
Step
C
Mount the white frame after having painted the wall or mounted
tiles, if necessary.
D
E
F
1
GERMAN - DE
Schritt
Tür wird montiert.
ENGLISH - EN
Step
Mount door.
AN37074197191501-010301
2
3
662
610 Build in
150
2
3
Edelstahl Verteilersysteme / Distribution units SG/ SGC for VX-F
4
5
General tolerance accuracy, measurements without tolerance:
ISO 2768 - m
Weight
Replace
Design
25-10-2022
Approval
Confidential: Property of Danfoss Redan A/S, Nordborg, Denmark.
Not to be handed over to, copied or used by third party. Two- or three
dimensional reproduction of contents to be authorized by Danfoss Redan A/S.
4
5
© Danfoss | HydronicS | Sub-systems | 2023.02 | 15
6
7
Projection
Scale
Size
Material
1:7.5
A3
62.248 kg
Danfoss Standard
Designation
145H4904
JJ
Proto922-1
145H0988
Danfoss Redan A/S
145H4904+Proto922-1+145H0988
No.
Rev.
6
7
8
A
B
C
D
E
F
Sheet
1 / 2
