page EN-26 First use

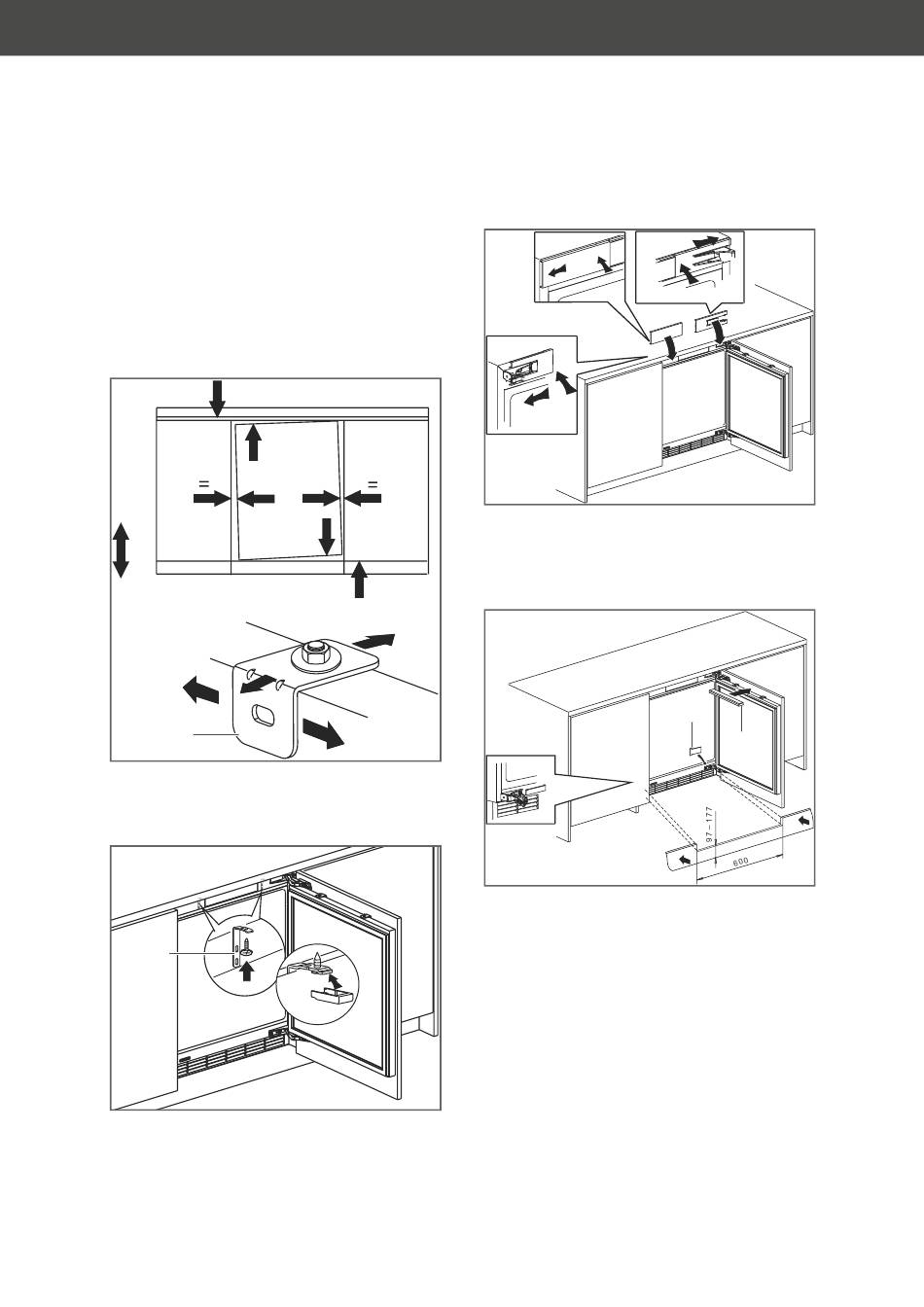

11. Attach the cabinet front panel to the dou-
ble-ended screws (17) using the brack-
ets (19).
12. Tighten the nuts (18) slightly.
13. Attach the pre-installed brackets (33) to
the bottom of the cabinet front panel us-
ing the screws (21).
(19)
14. Align the bracket (19) such that the cabi-
net front panel is level.
15. Tighten the nuts.
(21)
(16)
16. Affix the brackets (16) to the worktop us-
ing the screws (21).
17. Put the bracket covers (22) on the brack-
ets.
(22)
(27)
(25)
18. Put the hinge covers (27) back on.
19. If you have changed the door's opening
direction, place the hinge cover (25) on
the left side.
(23)
20. Put the screw cover (24) over the dou-
ble-ended screws.
21. Insert the hinge faceplate (26) into the
lower hinge.
22. If you have changed the door's opening
direction, place the hinge faceplate (23)
on the left side.
23. If you want to install a plinth, make sure
that it has a height of 97–177 mm and a
width of 600 mm and doesn't cover the
ventilation grille of the appliance.
