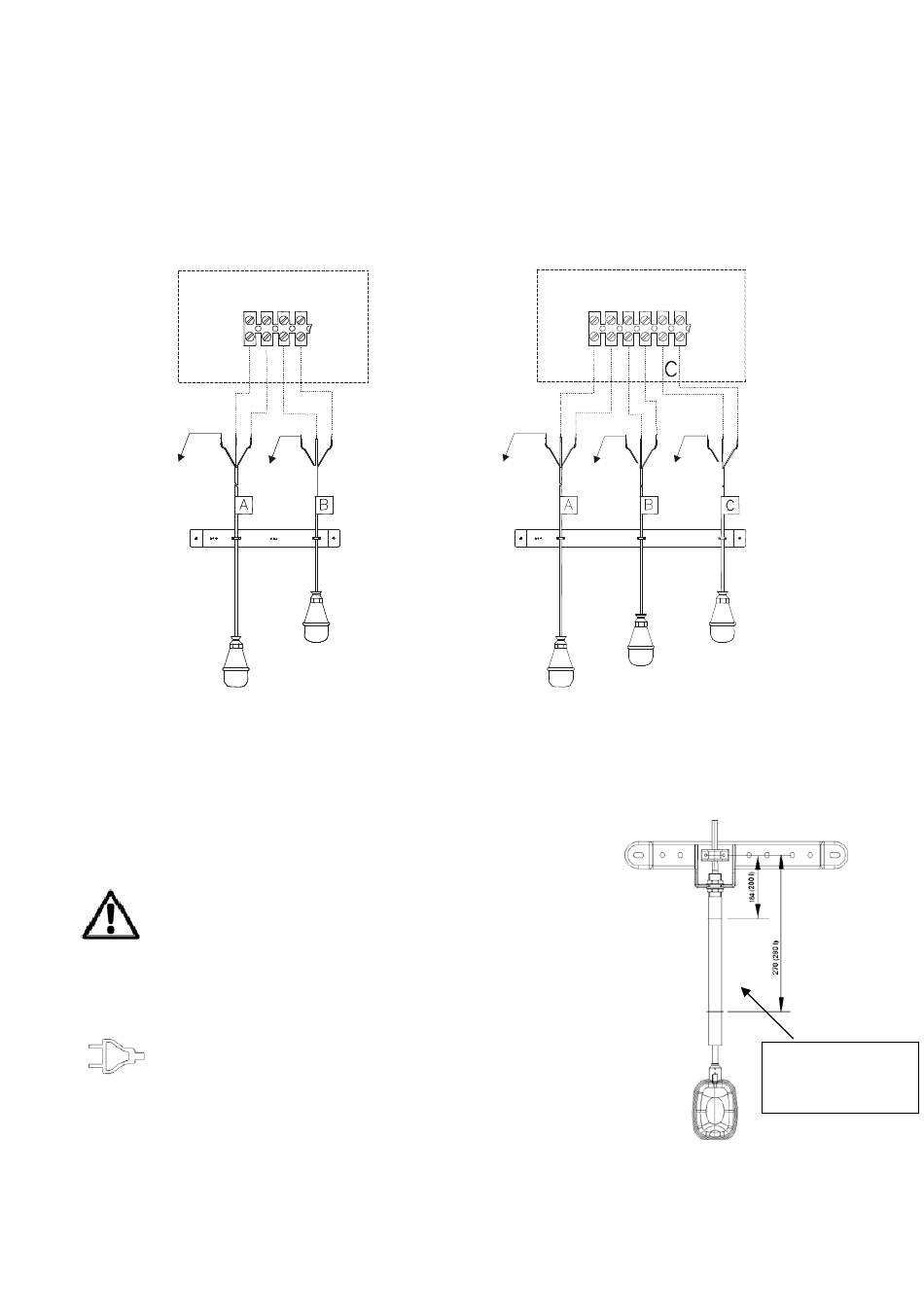

Floats:
The floats (two for FEKAFOS 280 l three for FEKAFOS 280 DOUBLE) are already installed and with their height
set inside the tank.
Pass the float connecting cables through the fairleads preassembled on the tank (detail 7, fig. 10), tighten the ring
nut and connect the cable to the control panel as indicated in the respective manual, taking care that the terminals
on the panel correspond to the respective float cables.
TWO FLOATS
CONT ROL PANEL
BROWN
GREY
BLUE NOT
NOT US ED
USED
MIN
MIN
Every single cable of the floats is composed of three leads: BLACK-BROWN-BLUE. The BLUE lead is
not used and must be insulated by the user.
8. PREPARATION OF THE ALARM SYSTEM FOR FEKAFOS 280 AND 280 DOUBLE (SUPPLIED
ONLY ON REQUEST FOR FEKABOX 200)
The preparation consists of having a float support composed of a PP
pipe, fig. 11, which must be shortened according to the tank used to the
following measurements: 184mm for Fekabox 200 and 270mm for
Fekafos 280-280 Double.
Always check the length of the pipe as in future it may occur that
the length of the pipe is already 270mm, so it will not be necessary to
shorten it for the Fekafos 280D.
Strictly respect the lengths shown in the figure.
Pass the float cable out of the tank, through the preassembled grommet
, tighten the ring nut and connect it to the control unit. For
Fekabox 200, in the kit supplied, along with the alarm floating support
there will be an extra cable clamp, necessary for the float cable to come
out.
Before filling the tank, activate the float manually to check the operation of
the alarm system.
1
3 4
2
A B
BLACK
BROWN
BLACK
GREY
BLUE NOT
NOT US ED
USED
MAX
MAX
ENGLISH
THREE FLOATS
CONT ROL PANEL
1
A B
BROWN
BLACK
GREY
GREY
BLUE NOT
BLUE NOT
NOT US ED
NOT US ED
USED
USED
MIN
46
2 3 4
5
6
BROWN
BLACK
BLACK
BROWN
GREY
BLUE NOT
NOT US ED
USED
MAX
MED
shorten the pipe to
ALARM FLOAT
Fig. 11
vary the alarm
level.
