Operating instructions SATAjet 2000 HVLP (DIGITAL 2)
When mounting foreign parts, quality reduction is possible and the SATA
warranty expires.

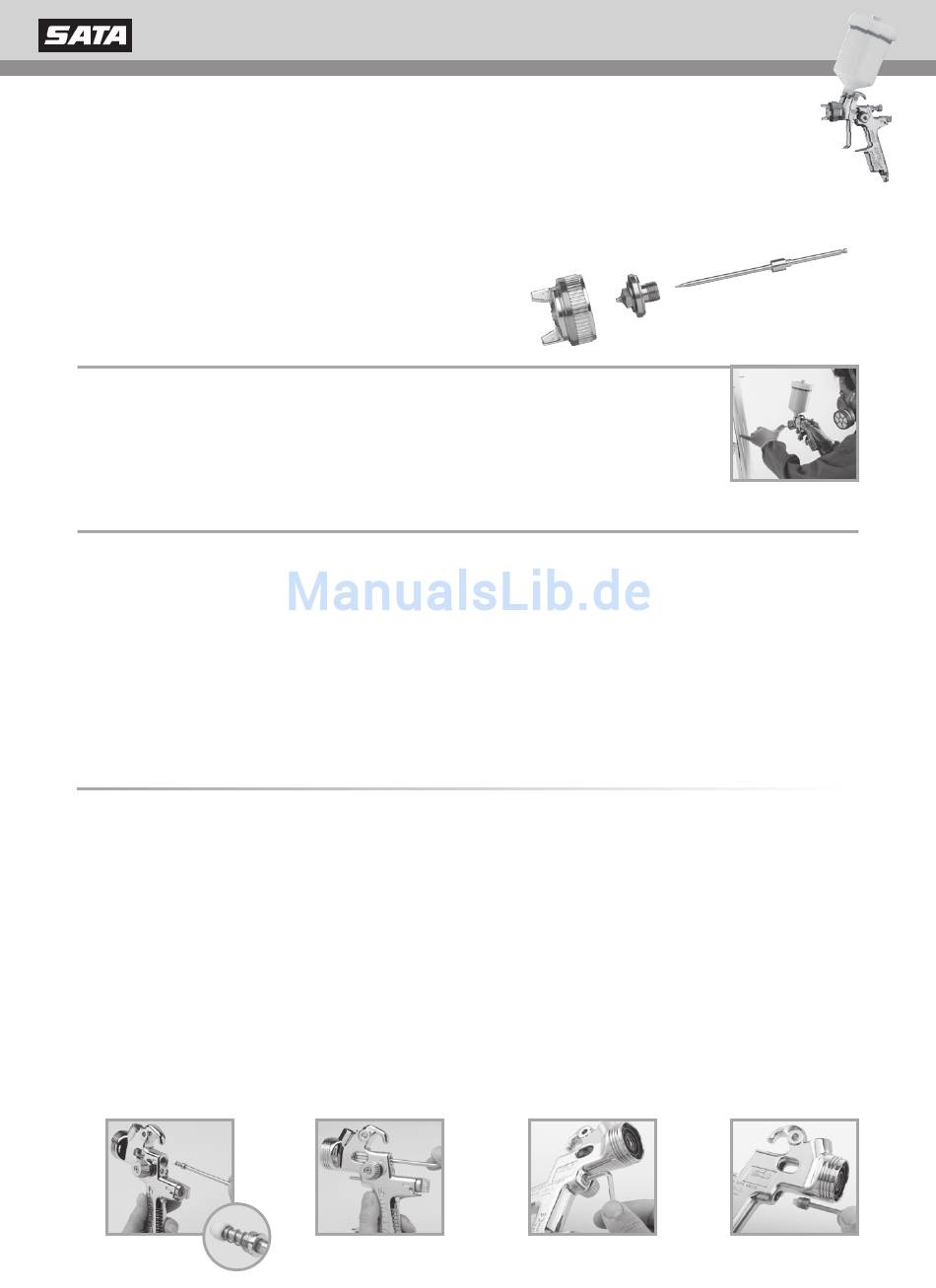

Nozzle sets

9191 for SATAjet 2000 HVLP WSB
82024 for SATAjet 2000 HVLP 1,0
82057 for SATAjet 2000 HVLP 1,2
82073 for SATAjet 2000 HVLP 1,3
82263 for SATAjet 2000 HVLP 1,4
4.8. Spray distance
In order to avoid overspray and surface problems, we recommend a spray
distance of 5 - 7(8) inches on 29 psi between air cap and object should be
maintained in accordance with the chart below, depending on spray gun
type and material.
4.9 Internal nozzle pressure
At an entrance pressure of more than 29 psi at the air inlet, the internal nozzle pressure
exceeds 10 psi. The maximum inlet pressure permitted for HVLP use is stamped onto the gun
body. For pressure above 2.0 bars the jet 2000 HVLP gun is compliant to U.K. legislation.
(Lombardia (Italy): air inlet pressure below 2.5 bar / 37 psi - air cap pressure below 1.0 bar /
15 psi)
76505 Test air cap for nozzle size 1.7 cpl.
82016 Test air cap for nozzle size 1.9 and 2.2 cpl.
83477 Test air cap for nozzle size 1.0, 1.2, 1.3, 1.4 and 1.5 cpl.
5. Changing the Self-adjusting Seals
a) Material Side: For replacement of the self-adjusting paint needle packing the paint needle
must be removed. Insert hollow key SW 4 with its cylindrical connection (part no. 9647)
into the gun instead of the paint needle, and unscrew the packing screw from the gun,
together with compression spring and packing. Push compression screw (part no. 14605),
compression spring (part no. 14993) and new packing (part no. 23275) onto cylindrical
connection of the hollow key, and screw them tight inside the gun body. Check paint
needle for damage and reassemble.
b) Air Side: For replacing the seal retainer (pos. 82636) of the air piston rod, paint needle
and trigger must be removed first; then pull out air piston rod (pos. 86843) and unscrew
the seal retainer unit (pos. 82636) by means of the hollow key size 4.
Screw in new seal retainer unit and tighten thoroughly. Grease air piston rod slightly with
SATA special grease (part no. 10009) and insert it, then assemble trigger and paint need-
le.
VIII.5
82420 for SATAjet 2000 HVLP 1,5
90399 for SATAjet 2000 HVLP 1,7
90407 for SATAjet 2000 HVLP 1,9
90415 for SATAjet 2000 HVLP 2,2
Illustration similar
